A microprocessor controlled special tungsten lamp emits radiation which is first optically conditioned
and beamed to the sample contained in the cuvet. The optical path is fixed by the diameter of the
cuvet. Then the light is spectrally filtered to a narrow spectral bandwidth, to obtain a light beam of
intensity
I
o
or
I.
The photoelectric cell collects the radiation
I
that is not absorbed by the sample and converts it
into an electric current, producing a potential in the mV range.
The microprocessor uses this potential to convert the incoming value into the desired measuring
unit and to display it on the LCD.
The measurement process is carried out in two phases: first the meter is zeroed and then the actual
measurement is performed.
The cuvet has a very important role because it is an optical element and thus requires particular
attention. It is important that both the measurement and the calibration (zeroing) cuvets are
optically identical to provide the same measurement conditions. Whenever possible use the same
cuvet for both. It is necessary that the surface of the cuvet is clean and not scratched. This to avoid
measurement interference due to unwanted reflection and absorption of light. It is recommended
not to touch the cuvet walls with hands.
Furthermore, in order to maintain the same conditions during the zeroing and the measuring
phases, it is necessary to close the cuvet to prevent any contamination.
US Environmental Protection Agency
degree Celsius
degree Fahrenheit
milligrams per liter. mg/L is equivalent to ppm (part per million)
milliliter
Liquid Crystal Display
EPA:
°C:
°F:
mg/L:
mL:
LCD:
ABBREVIATIONS
14

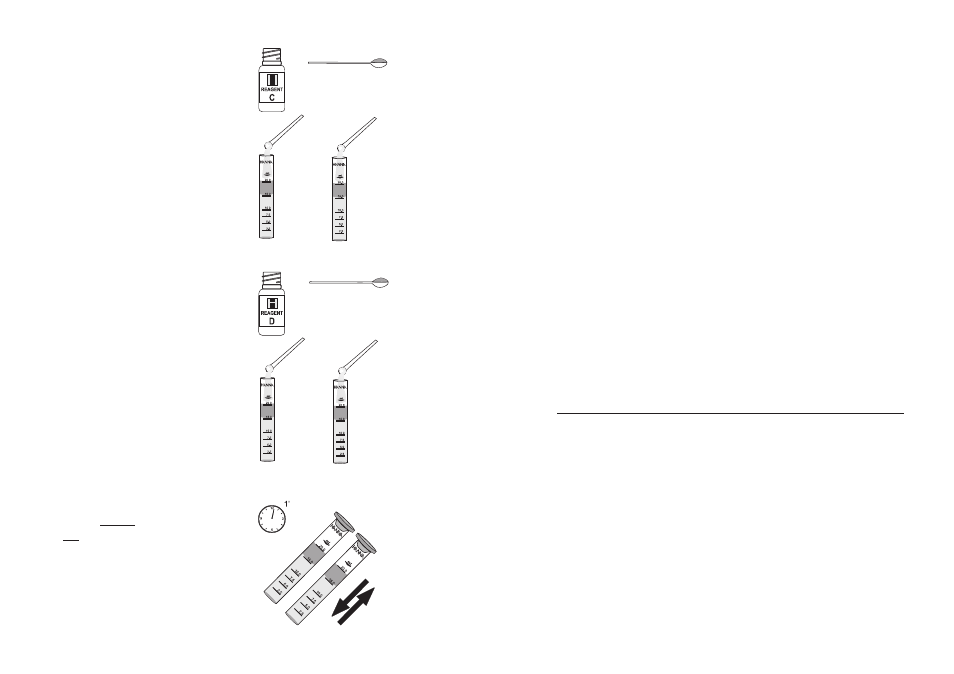

• Add 4 full spoons of reagent C to each vial.
x4
#2
x4
#1
x4
#2
x4
#1
• Using the other supplied spoon, add 4 full spoons of
reagent D to each vial.
• Close the glass vials tightly with their caps and shake
both vials vigorously for 1 minute.
Note: block the cap with a finger during shaking!
#2
#1
