INSTALLATION
Materials Needed
• LDPE hose (7 meter/22 feet) (included) or other type of tubing
(PTFE, for example) more suitable for a specific application
(optional)
• Power cord (included)
Optional Accessories
• 4 each, ceramic weights (HI 721008)
• 1 each, foot valve assembly (HI 721005)
• 1 each, injection valve assembly (HI 721004)
Location
A suitable location should:
• be near to a power source
• be conveniently close to the injection point
• allow easy access to the flow rate control and pipe or hose
connections
• be no more than 1.5 meters (5 feet) above the operating
position of the suction valve assembly.
Dimensions for Installation
BlackStone Pumps are designed for permanent installation.
The pump can be mounted directly on a wall or tank (see page 10 for
the specific mounting dimensions).
Power Requirements
BlackStone pumps
are designed to operate to specifications within the
following voltage ranges:
100 - 130 Volts for 115 Vac models
200 - 250 Volts for 230 Vac models

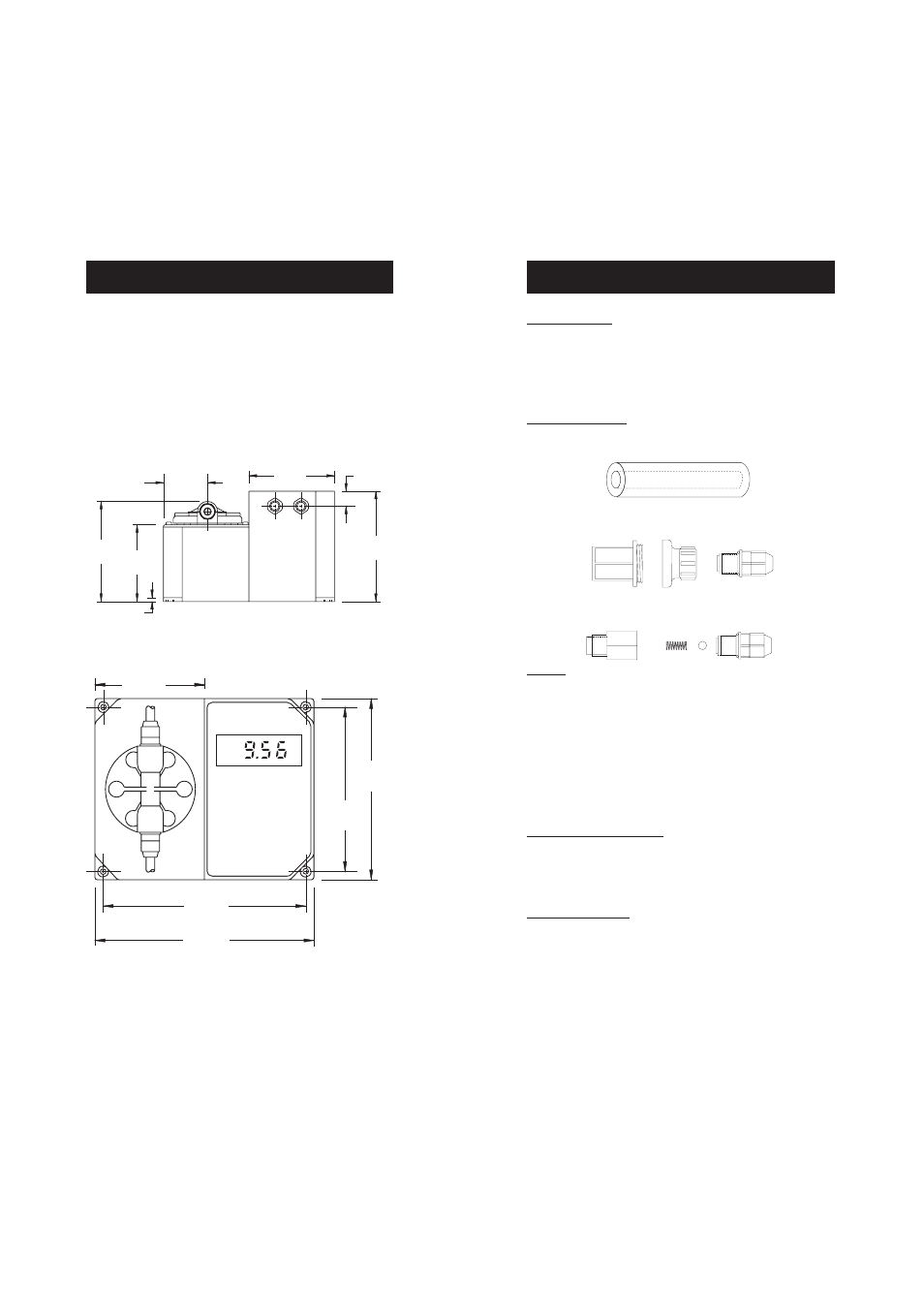

MECHANICAL DIMENSIONS
The Controller/Pump series of instruments are enclosed in a modular
housing for maximum protection. The dimensioned illustrations show
the layout of the Controller/Pumps and how they utilize the one-piece
polypropylene, injection-molded housing. Since there are no joints or
screws holding different sections of the housing together, the case is
extremely rugged and sturdy.
BOTTOM VIEW
FRONT VIEW
99mm
3.90"
110mm
4.33"
142mm
5.60"
5mm
0.19"
129mm
5.08"
17mm
.67"
55mm
2.16"
181mm
7.13"
110mm
4.33"
204mm
8.03"
164mm
6.45"
221mm
8.70"
pH
