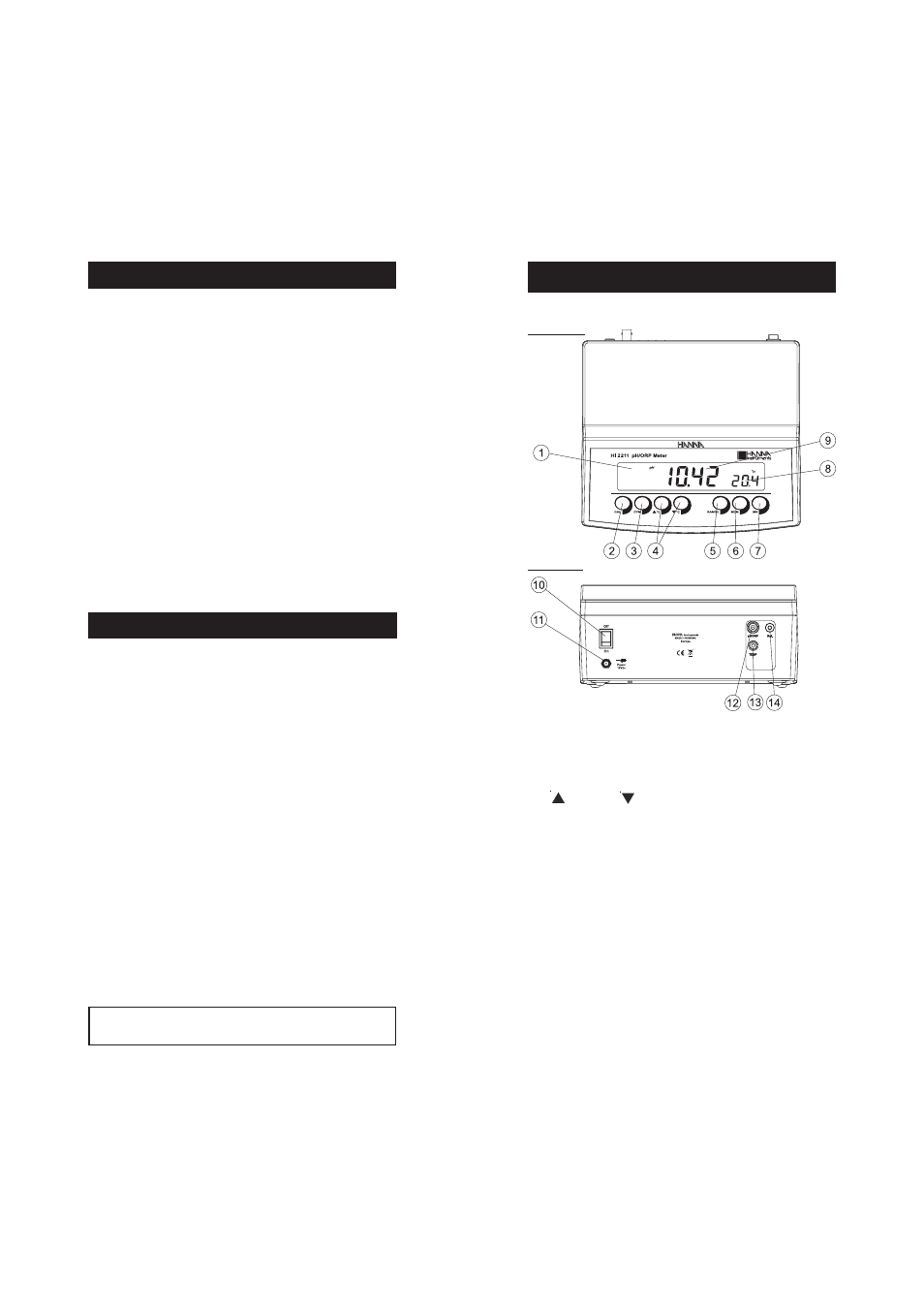

Front Panel Front Panel Front Panel Front Panel Front Panel
FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION FUNCTIONAL DESCRIPTION
1) Liquid Crystal Display (LCD).
2) CAL key, to enter or exit/escape calibration mode.
3) CFM key, to confirm different values.
4) °C key and °C keys, to manually increase/decrease tem-
perature or select pH buffer.
5) RANGE key, to select measurement range (HI 2211 only).
6) MEM key, to store a value into memory.
7) MR key, to recall the stored value.
8) Secondary LCD.
9) Primary LCD.
10) ON/OFF switch.
11) Power adapter socket.
12) BNC electrode connector.
13) Temperature probe socket.
14) Electrode reference socket.
The Hanna HI 2210 and HI 2211 are microprocessor-based pH and
temperature bench meters.
HI 2211 can also be used for ion concentration (ISE) and Oxidation
Reduction Potential (ORP) in the mV range.
pH measurements are compensated for temperature effect manually or
automatically with the HI 7662 temperature probe.
The instrument is equipped with a large easy-to-read LCD which shows
the pH (or mV) and temperature simultaneously, together with graphic
symbols.
The calibration process is guided step by step through clear indications on
the LCD. A stability indicator makes the calibration procedure error-free.
Remove the instrument from the packing material and examine it
carefully to make sure that no damage has occurred during shipping.
If there is any damage, notify your Dealer or the nearest Hanna
Customer Service Center.
Each instrument is supplied with:
• HI 1131B Glass-body Combination pH Electrode
• HI 7662 Temperature Probe
• HI 76404 Electrode Holder
• pH 4.01 & 7.01 Buffer Solutions, 20 mL each
• HI 7071S Electrolyte Solution
• 12VDC Power Adapter
• Instruction Manual
Note: Save all packing material until you are sure that the
instrument functions correctly. All defective items must be
returned in the original packing with the supplied accessories.
