5
IV. IV. IV. IV. IV. Design Elements Design Elements Design Elements Design Elements Design Elements

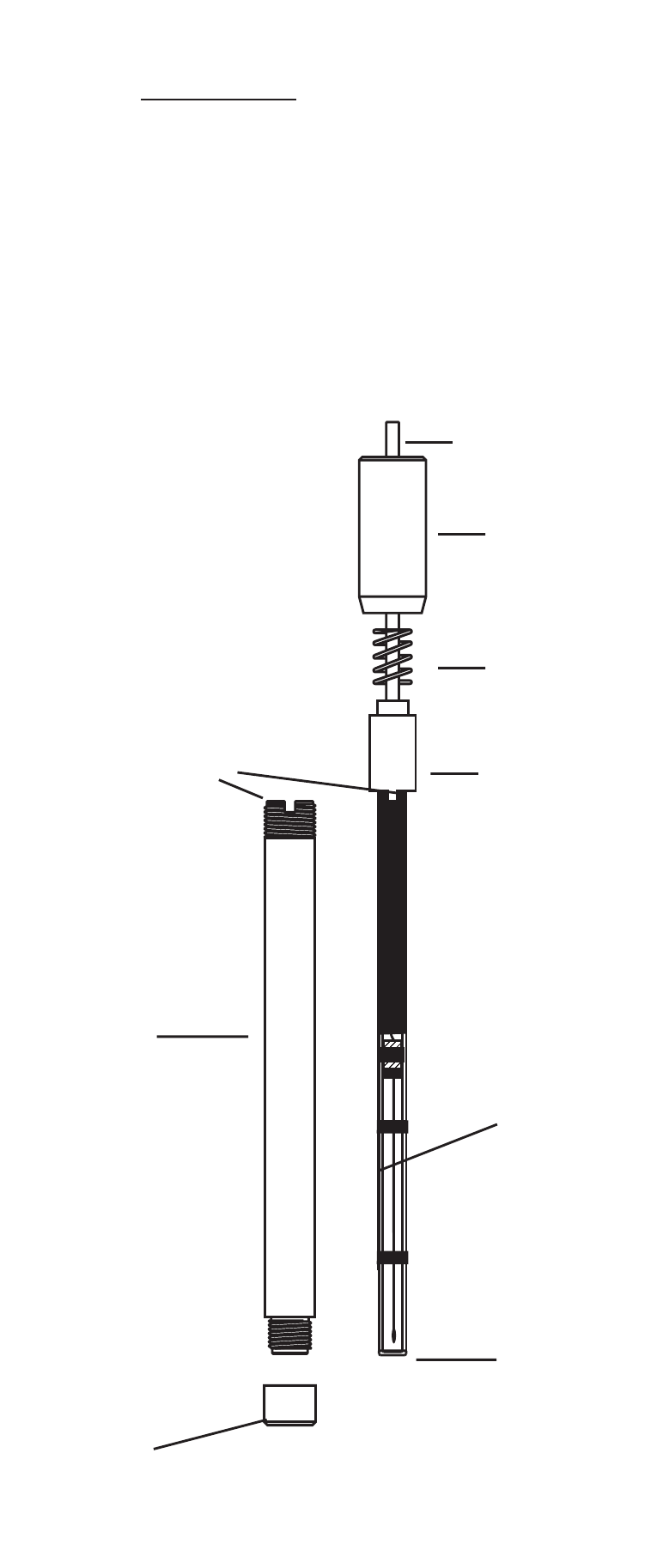

The Hanna HI 4101 ammonia gas sensor has 3 main
parts. These are the membrane/membrane cap, outer probe
body with antirotation key and the pH/reference assembly
which includes the outer electrode cap, spring, inner cap
and pH/reference electrode assembly.
Outer probe body
antirotation key inner cap
pH/reference electrode assembly
spring
outer electrode
cap
pH
sensitive
membrane
reference
electrode
cable
membrane/membrane cap
