SP-HDMI-4A
3
1. Introduction
1.1 General
Thank you for purchasing the SP-HD-4A, 4-channel HDMI Video Splitter from Hall Research.
This device splits a single DVI or HDMI audio/video source for display on four identical
outputs.
It supports HDTV resolutions up to 4Kx2K, is HDCP compliant; supports HDMI 1.4 deep
color & 3-D formats, and handles all HDMI Audio formats.
The device is a high-performance unit that digitally splits and buffers the input signal for a
100% perfect image and sound reproduction on all outputs.
1.2 Features
• Supports HDMI 1.4 Deep-Color (up to 12 bits per color) and 3D formats
• Supports PC & HDTV resolutions, VGA~WUXGA and 480p~4Kx2K
• LED indicators for power and video
• 1 RU compact size, includes surface mounting brackets
• Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
• Plug and play installation
• Bandwidth of 10.2 Gbps (Giga bits / second) for sharp digital image
• Intelligent EDID Pass-through or EDID Emulation (user selectable)
• Low power (consumes less than 2.5 watts fully loaded)
• Includes Universal power adapter with interchangeable AC plugs
• Locking HDMI and DC Power connectors

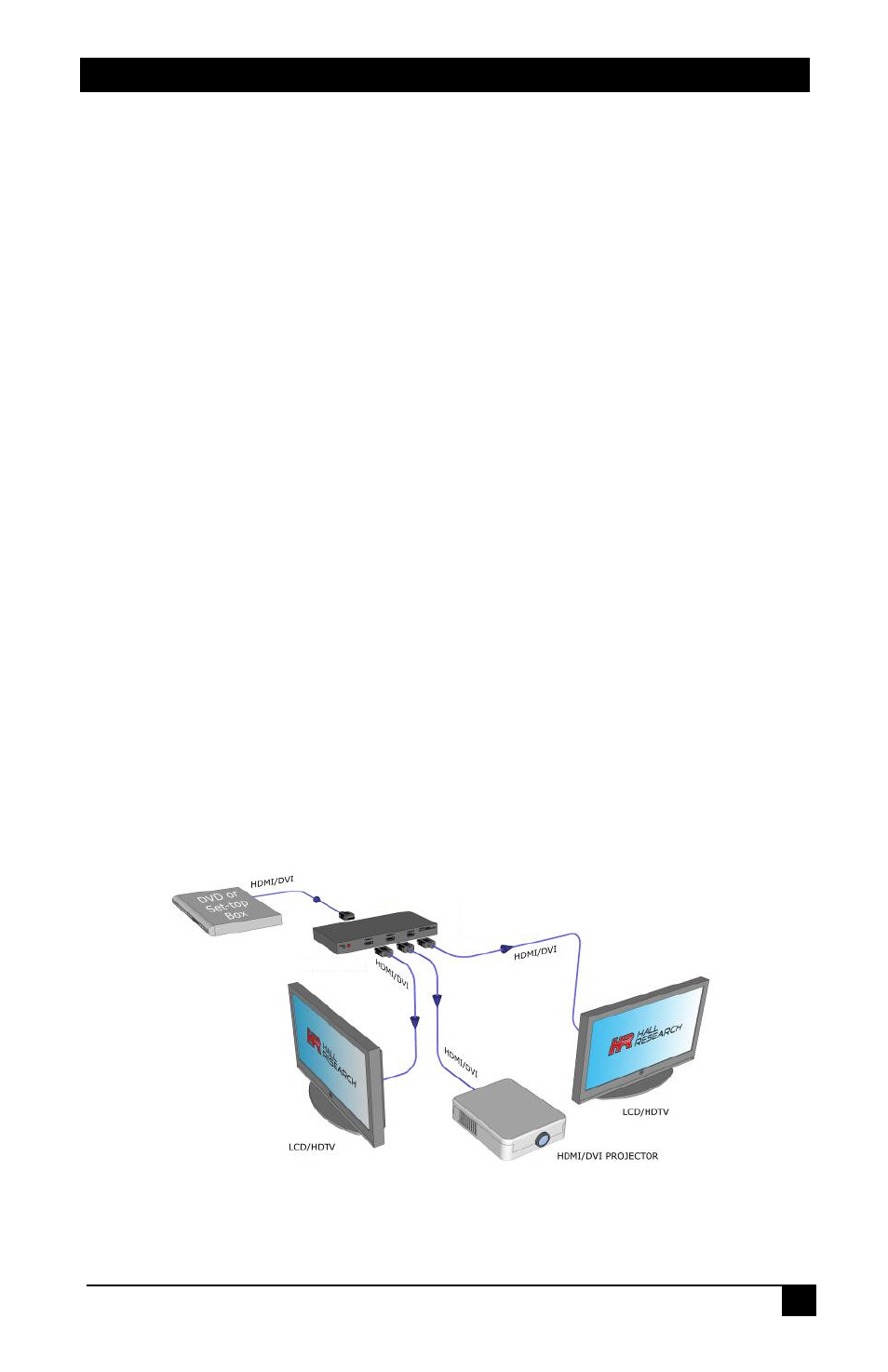

2. Connection Block Diagram
