1
210-LU
Description

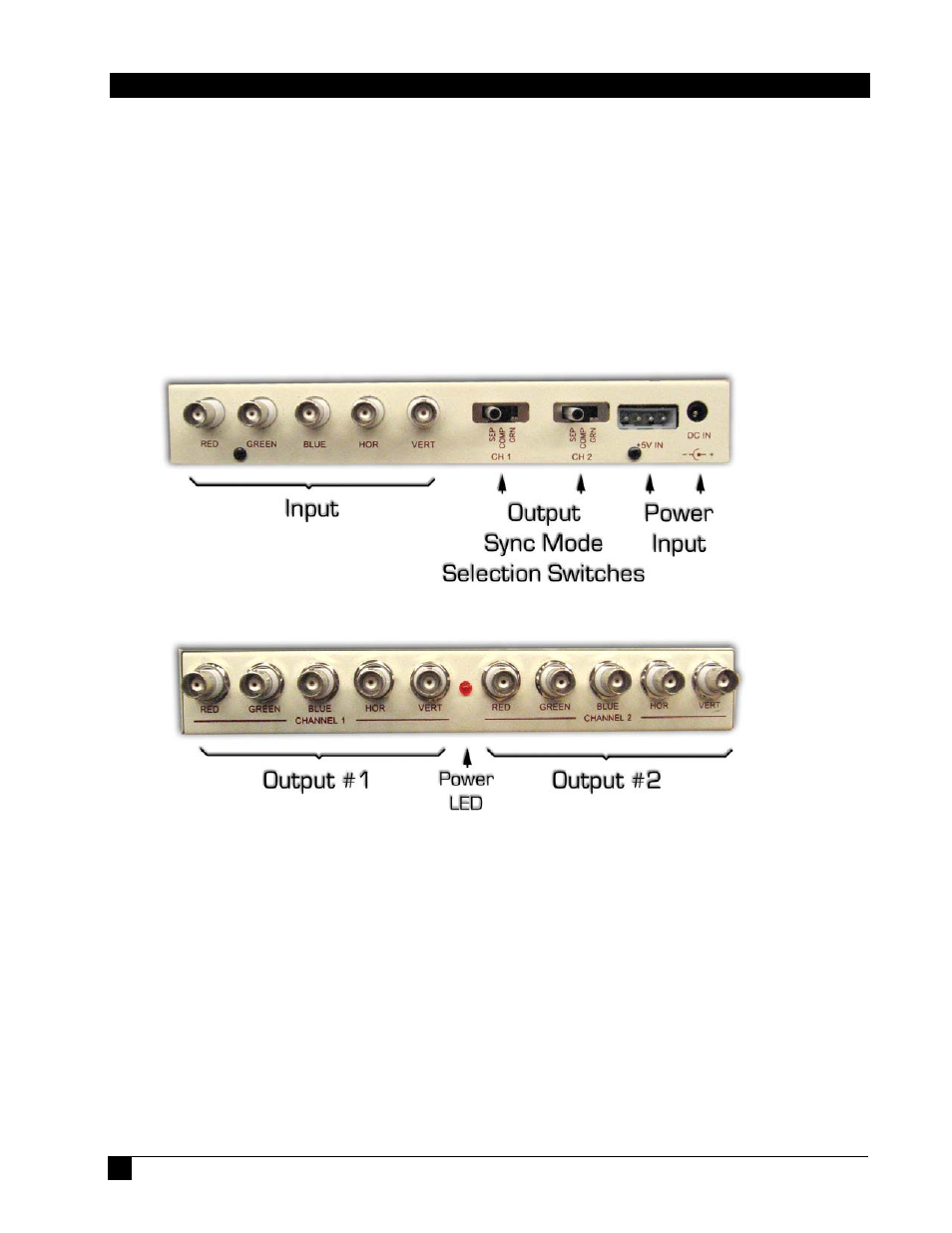

The Model 210-LU buffers and splits component (RGBHV, RGBS, or RGsB) video signals for display on two
monitors. The unit can drive video cables up to 150 feet or longer depending on the resolution used and cable
quality.
The input video signal can be RGBHV (five connections, separate syncs), or RGBS (four connections, composite
sync), or RGsB (sometimes referred to RGB - three connections, with sync-on-green).
The device is capable of outputting separate, composite, or sync-on-green based on a switch setting, independently
for each output. For example you can set output # 1 for separate sync and output 2 for sync-on-green regardless of
the type of sync at the input. The Model 210-LU can be powered from a supplied power adapter, or from a customer
furnished +5 vDC power supply.
Features
• Rugged, Reliable, Economical
• Automatically detects and accepts all input sync modes
• 300 MHz Bandwidth
• Powered from supplied AC adapter or customer supplied 5 vDC
• Each output can independently generate composite sync
• LED power indicator
• BNC connectors on input and outputs
• Mounting holes for attachment in user equipment
