Model UV232A & UV232B
3
1.2 Features
Sends PC or HD video, audio (L+R mixed), and unidirectional RS-232
over single Catx (Model UV232A)
Sends PC or HD video and bi-directional RS-232 over single Catx
(Model UV232B)
Wide bandwidth to transmit WUXGA signals (1920x1200 / 60hz) or HD
Analog Component (1080p)
Compensation for UTP cable to 500 ft.
No power supply required for local unit – powered from VGA source
DDC compliant EDID emulation on the Sender
Supports all baud rates to 115Kbps
Perfect for touch-screen (UV232B), Kiosk, or Projector Control
applications.
RS-232 and high quality VGA input cables provided
Compact metal enclosure with mounting provisions
Compact, Rugged, Reliable, and Economical
Made in USA
2. Installation

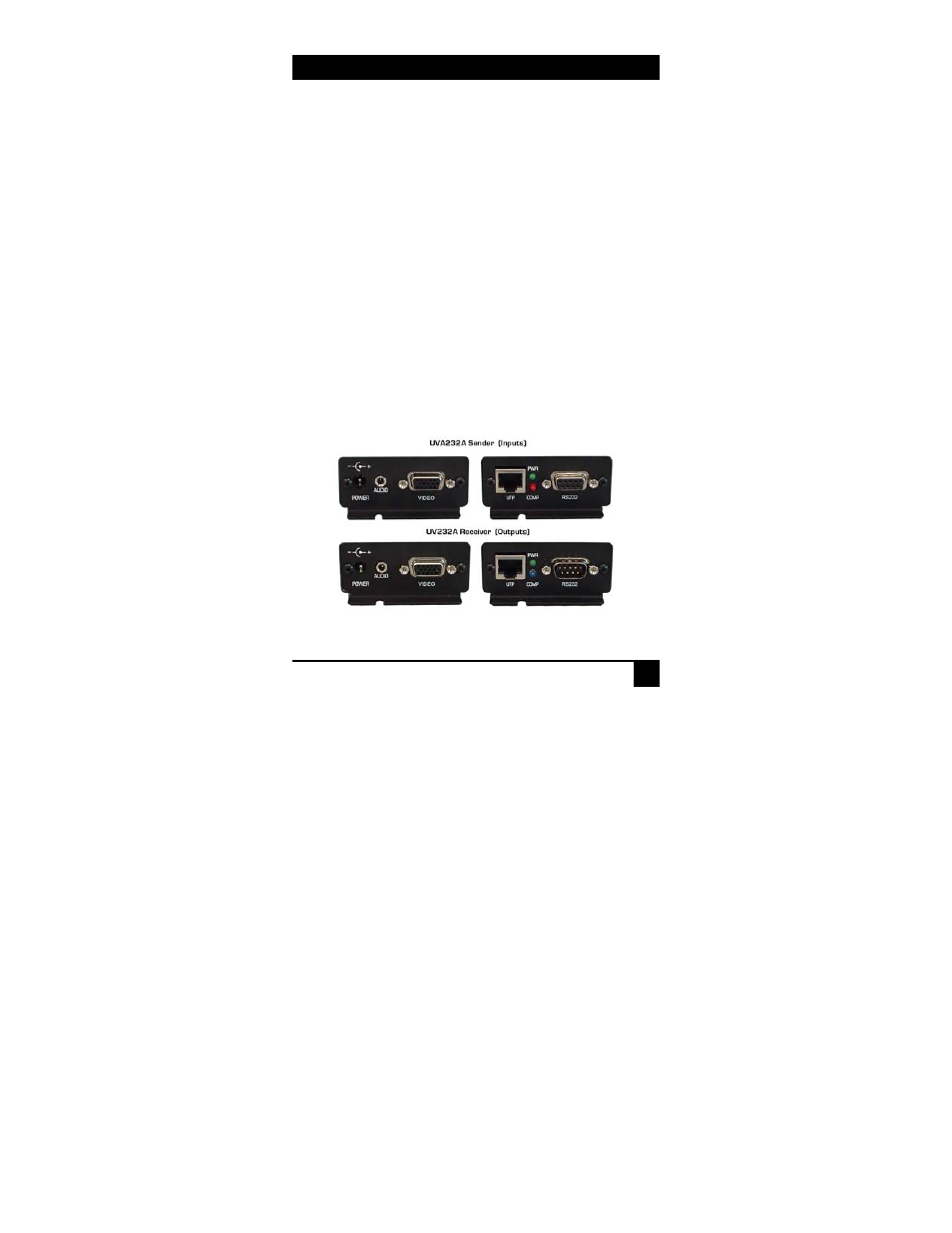

2.1 Connecting the UV232A / B
