2. Installation
Before installation please check items in the package.
• Local wall-plate Unit with white bezel
• 6 ft usB A to B cable
• Remote Unit with LED Indicator & DC jack
• Universal Power Adapter with worldwide plugs

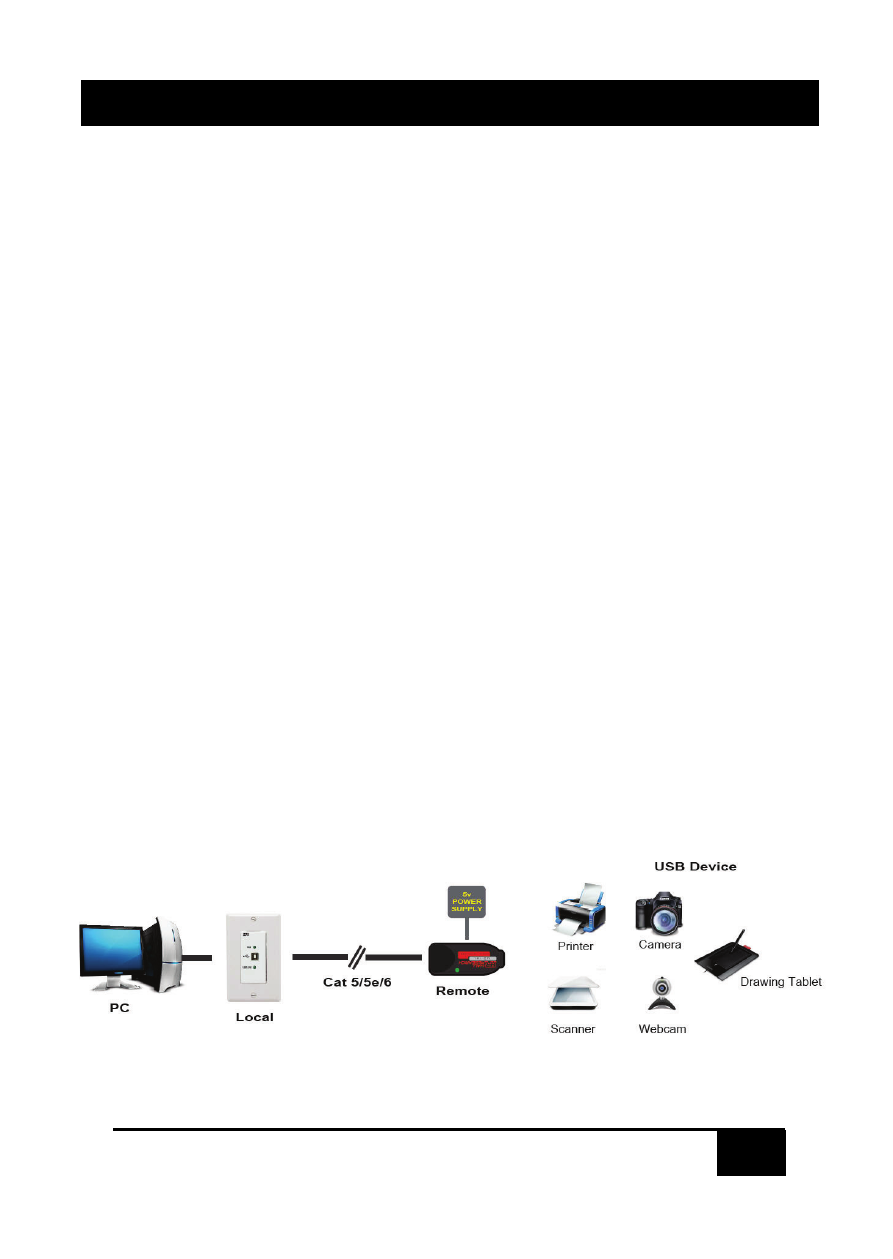

Connecting the Extender
• Connect the wall plate (local) to the host system (or
PC) using the supplied USB cable.
• Connect the Local and Remote Units together using
a Cat6 cable(maximum distance is 165 ft, Cat5e
cables can also be used to 120 ft)
• Connect any USB peripheral (such as printer,
scanner, HDD, etc) to the Remote Unit.
• Plug the included 5V/2A power supply to the
extender’s Remote Unit.
• Check the LEDs on USB 2.0 local and remote units
for proper operation.
