For your own safety, do not connect the machine to the power source until the machine is
completely assembled and you read and understand the entire instruction manual.

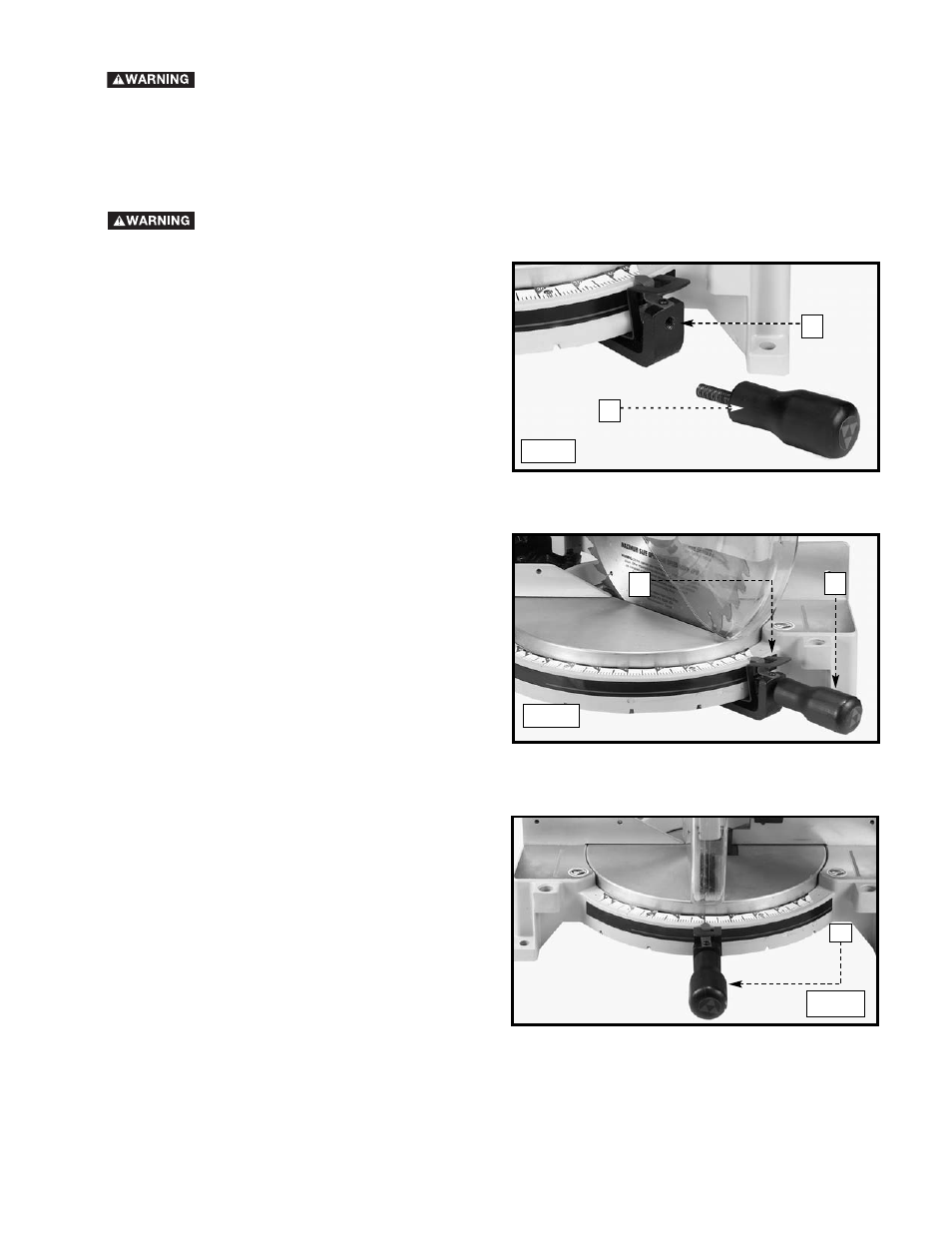

Thread the table lock handle (A) Fig. 2 into the threaded hole (B)
of the arm bracket.
1. Turn the table lock handle (A) Fig. 3 counter-clockwise one
or two turns, and depress the index lever (B) to release the
45° positive stop.
DISCONNECT MACHINE FROM POWER SOURCE!
B
A
Fig. 2
ATTACHING THE TABLE LOCK HANDLE
ROTATING THE TABLE TO THE 90° DEGREE POSITION
Fig. 3
A B
2. Rotate the table to the left until the index stop engages with
the 90° positive stop (Fig. 4). Tighten the table lock handle
(A).
Fig. 4
A
