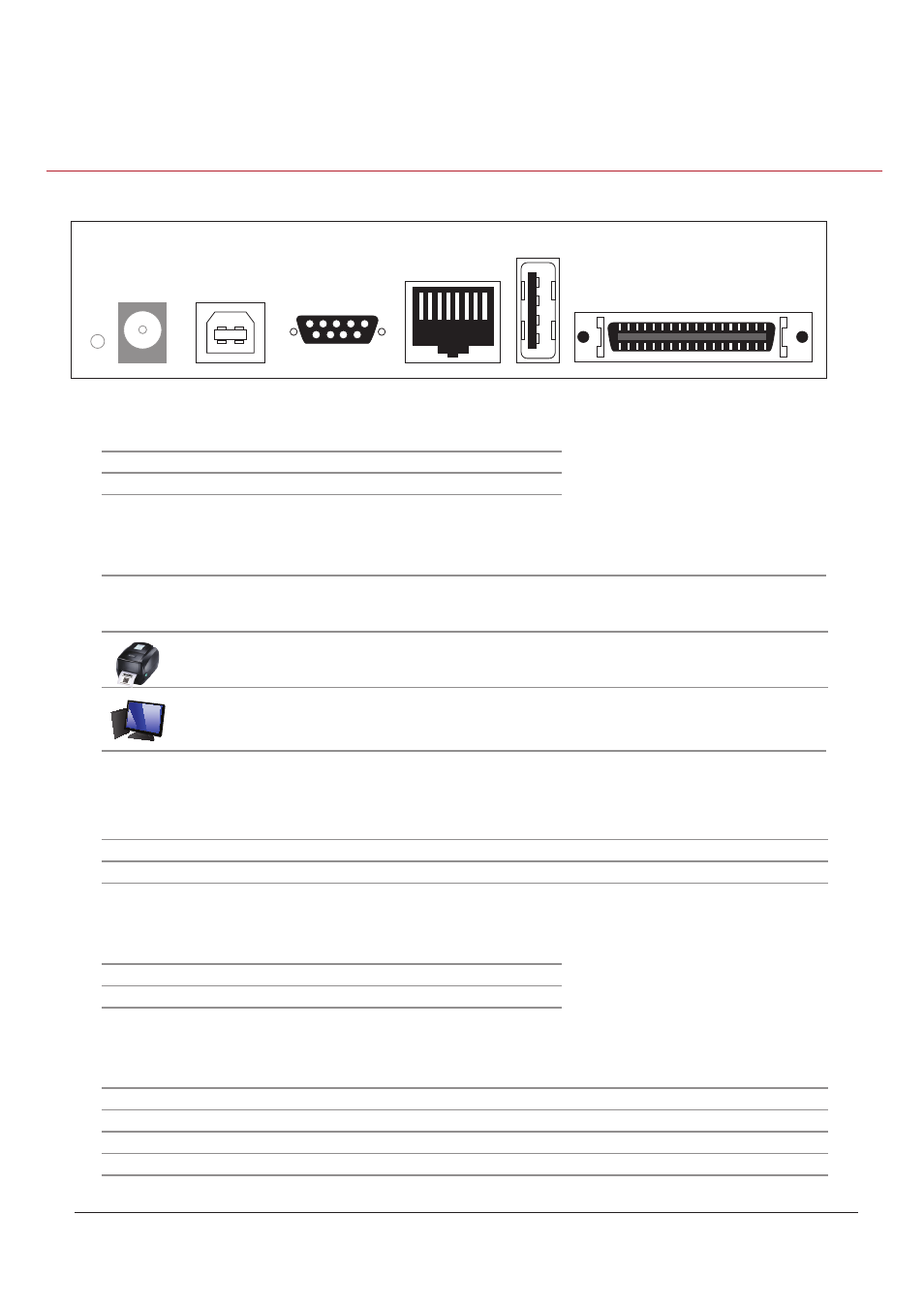

APPENDIX
Communication Port Specifications
Pinout Description
RT860i USER MANUAL
USB Port
Power Jack
Serial Port
Ethernet Port USB Host
Parallel Port
• USB Port
• Serial Port
• Ethernet Port
• USB Host
• Parallel Port
1
4
2 1
3 4
5 4 3 2 1
9 8 7 6
1 8
18 1
36 19
Connector Type : Type B
Pin NO.
1
2
3
4
NC
D-
D+
GND
Connector Type : Type A
Pin NO.
1
2
3
4
VBUS
D-
D+
GND
Type : RJ45
Pin NO.
1
2
3
4
5
6
7
8
TX+
TX-
RX+
NC
NC
RX-
NC
NC
Type : Centronics Female
Pin NO. 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
BUZY
SELECT
ACK
FAULTN LPT PERR DATA0
DATA1
DATA2
DATA3
DATA4
DATA5
DATA6
DATA7 LPT INTN STROB
SELIN
AUTO
NC
Pin NO. 19
20
21
22
23
24
25
26
27 28
29
30
31
32
33
34
35
36
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
5V
Default Settings : Baud rate 9600, no parity, 8 data bit, 1 stop bit, XON/XOFF
Protocal and RTS/CTS
RS232 Housing (9-pin to 9-pin)
Pin NO.
1
2
3
4
5
6
7
8
9
-
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
+5V,
max 500mA TXD
RXD
N/C
GND
RTS
CTS
RTS
N/C
Type
DB9 Socket
DB9 Plug
*
***
Serial port total output can not exceed the maximum current of 500mA
Note
