10 Replacement of Parts

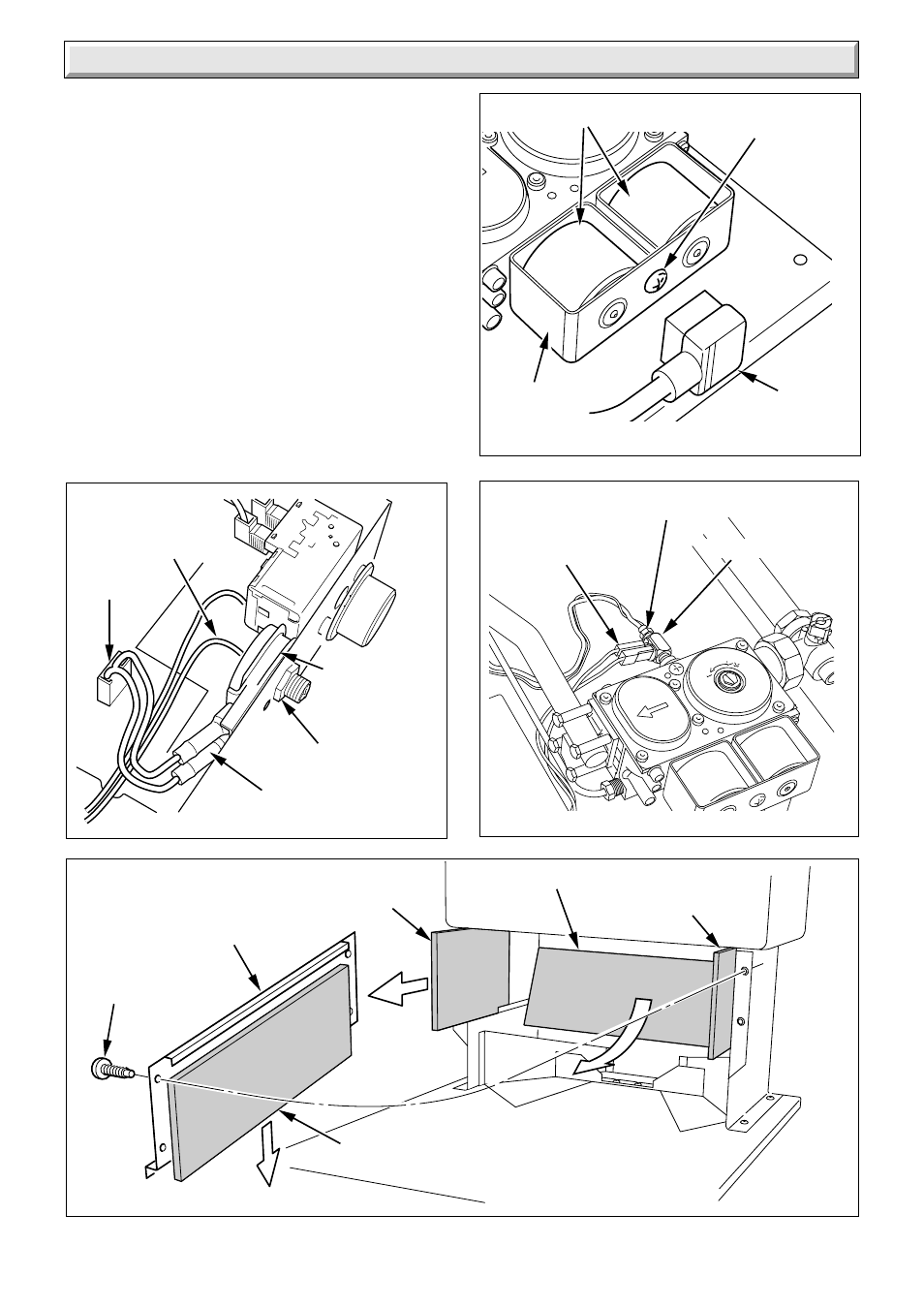

Diagram 10.8
6888
PLUG
SECURING
SCREW
SOLENOIDS
7156
Diagram 10.7
ELECTRICAL
CONNECTORS
LOCKNUT
OVER HEAT
CUTOFF
DEVICE
CAPILLARY
MULTI PIN
CONNECTOR
GAS
CONTROL
VALVE
Diagram 10.9
6882 THERMOCOUPLE NUT
ELECTRICAL
CONNECTIONS
INTERRUPTER
6853
Diagram 10.10
SECURING
SCREW (5)
COMBUSTION
CHAMBER
FRONT COVER
SIDE
INSULATION
PIECE REAR INSULATION
PIECE
SIDE INSULATION
PIECE
FRONT
INSULATION PIECE
10.13 Interrupter
Remove the combustion chamber extension, see diagram 4.5.
Refer to diagram 10.9
Carefully disconnect the thermocouple nut.
Remove the electrical connections.
Remove the interrupter.
10.14 Insulation
Follow the relevant instructions in Section 8.3 to remove the
controls assembly and burner.
Remove the five burner securing screws to remove the
combustion chamber front cover from the controls assembly
and burner, see diagram 8.2.
Refer to diagram 10.10.
Remove the front cover insulation,
Slide out the side insulation pieces.
With the side insulation pieces removed, lift out the rear insulation.
Note: Remove any debris that falls when the insulation has
been replaced.
