10

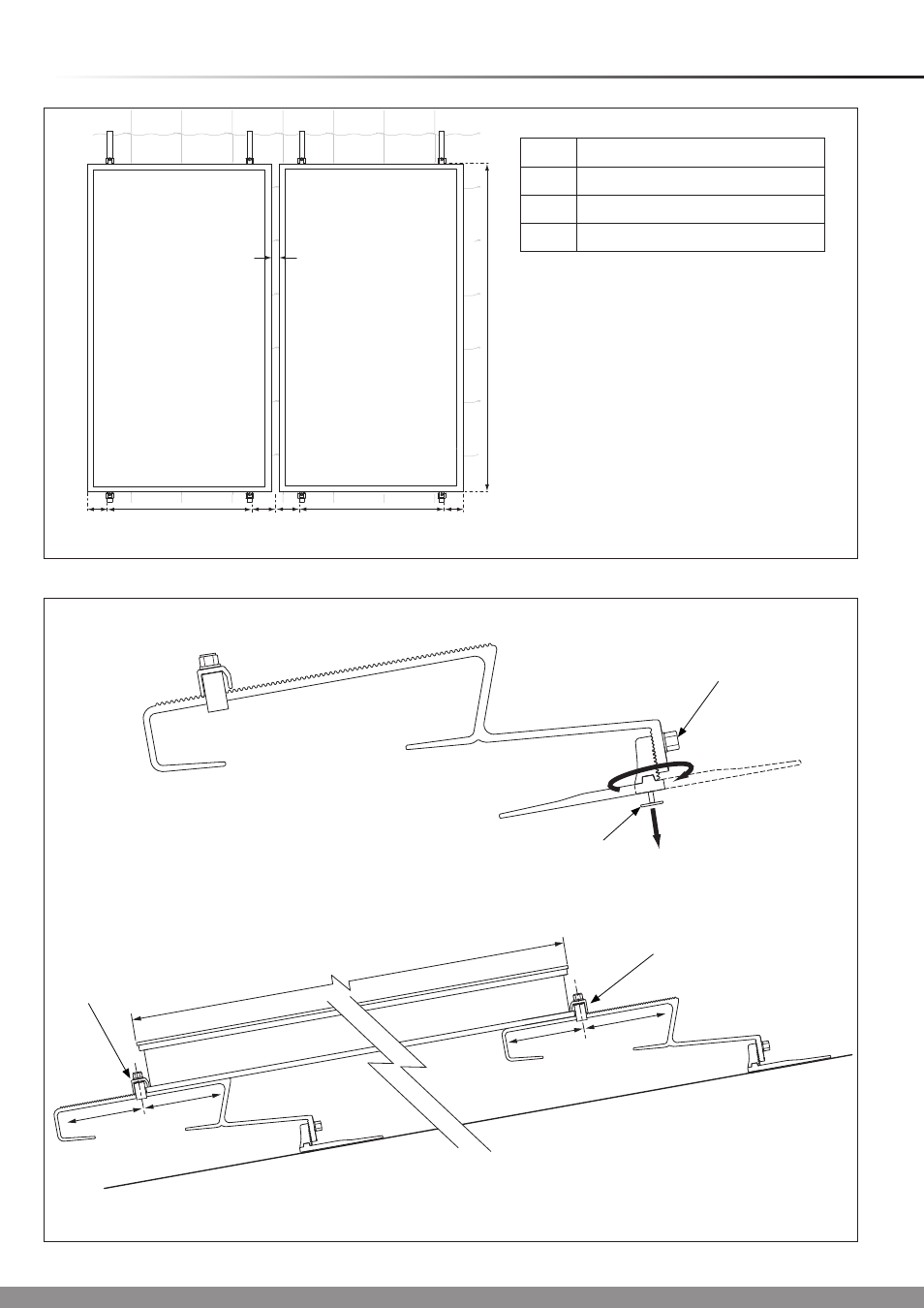

5 Roof Anchor - Type P
Distance in milimetres
A 2033
B 200 - 300
C 633 - 833
A
B B B B
C
C C
74
Diagram 5.1
15161
Diagram 5.2
SECURING
SCREW
ROOF ANCHOR TYPE P
15153
BOTTOM PLATE
SECURING SCREW
*120
*120
2033
*120
*120
COLLECTOR CLAMP
COLLECTOR
CLAMP
15409
* Total adjustment of collector clamp can
be 240mm to suit site conditions and
reduce the need to cut tiles
