owners manual
rp-x
r p - x
53"
). /54 4(25
-)$) 0%$!,3
, 2
).054 /54054
, 2 -
INTRODUCTION

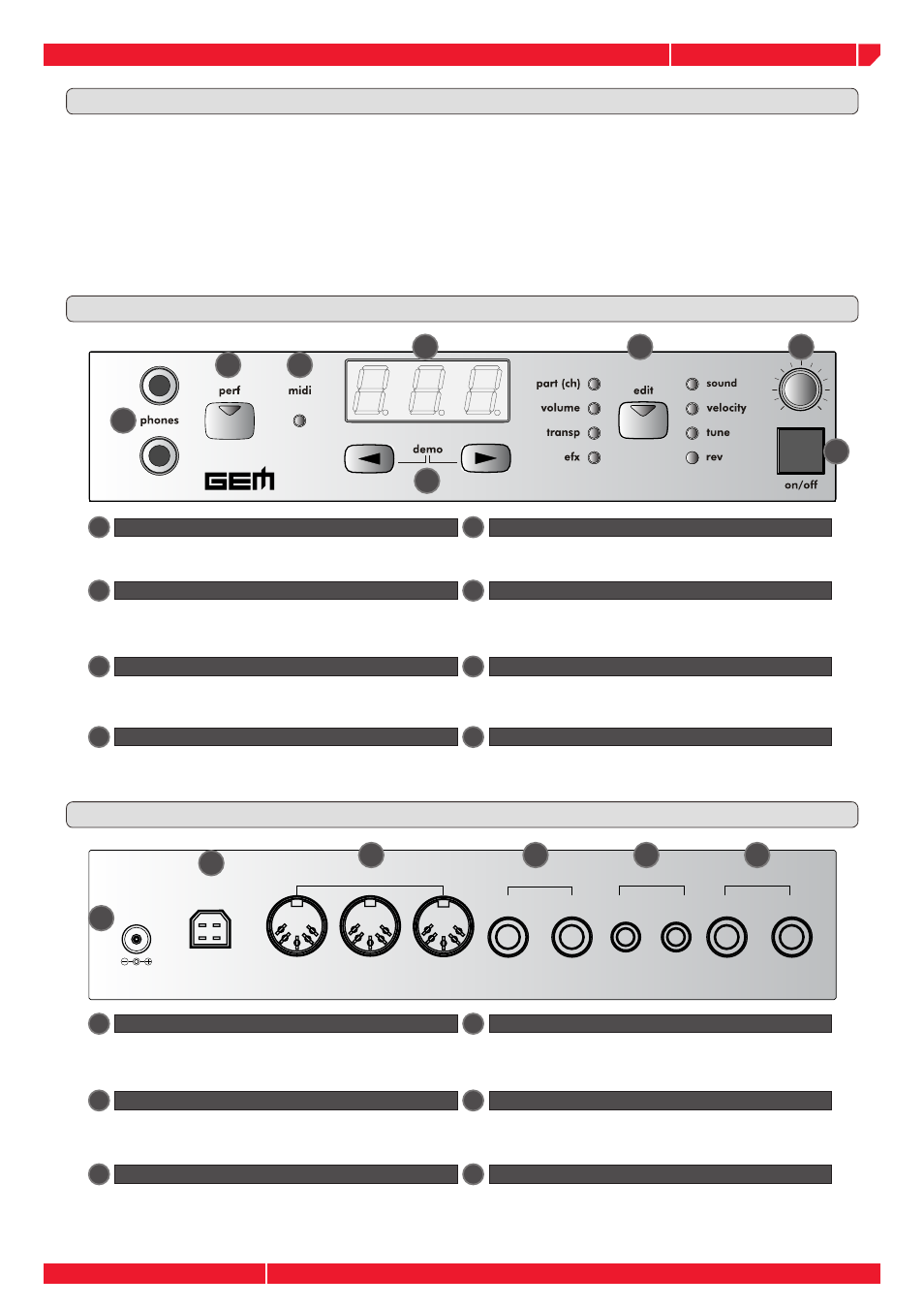

FRONT PANEL
1
1
2
3
4
These buttons allows to modify the parameters value.
The two buttond pressed at the same time start the
demo sequence.
5
This button enter the edit mode and select the editing
parameters.
6
7
the Volume knob, set the output level of the instru-
ment.
8
This button switch on or off the instrument.
Adapter input, in order to avoid hardware problem
with this unit, please use the adapter included in the
module package only.
1
2 3
4 5 6
7
8
1
2
USB connection to the PC. Use this connection with a
proper USB cable to connect the module to a PC. See
the relative chapter in this manual.
2
3
The three standard MIDI ports allows the connection of
the instrument to a MIDI controller, such as a Master
keyboard a Midi Accordion or a PC (equipped with
MIDI interface).
3
4
it's possible to connect two type of pedals to the ex-
pander, an Expression pedal to the Input #2 and a
Gem Multipedal unit to the Input #1.
4
5
The INPUT RCA connectors allows to plug an external
(Line) source to the instrument. Consult the relative
chapter of this user manual.
5
6
Connect the instrument to an external speaker system
or a Mixer.
6
These jack connectors allows to plug two headphones
to the module.
The perf button (PERFORMANCE), select the per-
formance mode. See the relative chapter, in this
manual.
This led monitoring the midi data received to the midi
input of the module.
The 3 digit display visualize the values and the pa-
rameters of the various editing levels.
display
midi
perf
phones edit
volume
data entry/demo
on/off
REAR PANEL AND CONNECTIONS
12 D.C. in
USB
MIDI IN-THRU-OUT
PEDALS
INPUT
OUTPUT
Congratulations & thank you for purchasing the GEM rp-x Expander. Utilizing our
proprietary DRAKE technology, the rp-x produces a vast variety of acoustic and electric
piano sounds with exceptional quality. The rp-x also incorporates an intuitive, yet easy to
use operational interface that will satisfy even the most demanding live or professional
studio applications.
