FeiYu Tech FY-AHRS-2000B User Manual
Page 7
Guilin Feiyu Electronic Technology Co., Ltd
Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyudz.cn [email protected]
- 6 -
Select the serial port used to connect in the "Port" field, such as: "COM1"; in the "Rate"
field select the baud rate as "19200"; FY-AHRS-2000B connected to the default wave special
rate of 19200, a start-byte, 8 data bytes, a Stop byte, no parity, either hardware or software no
"handshake." Baud rate can be changed by command.

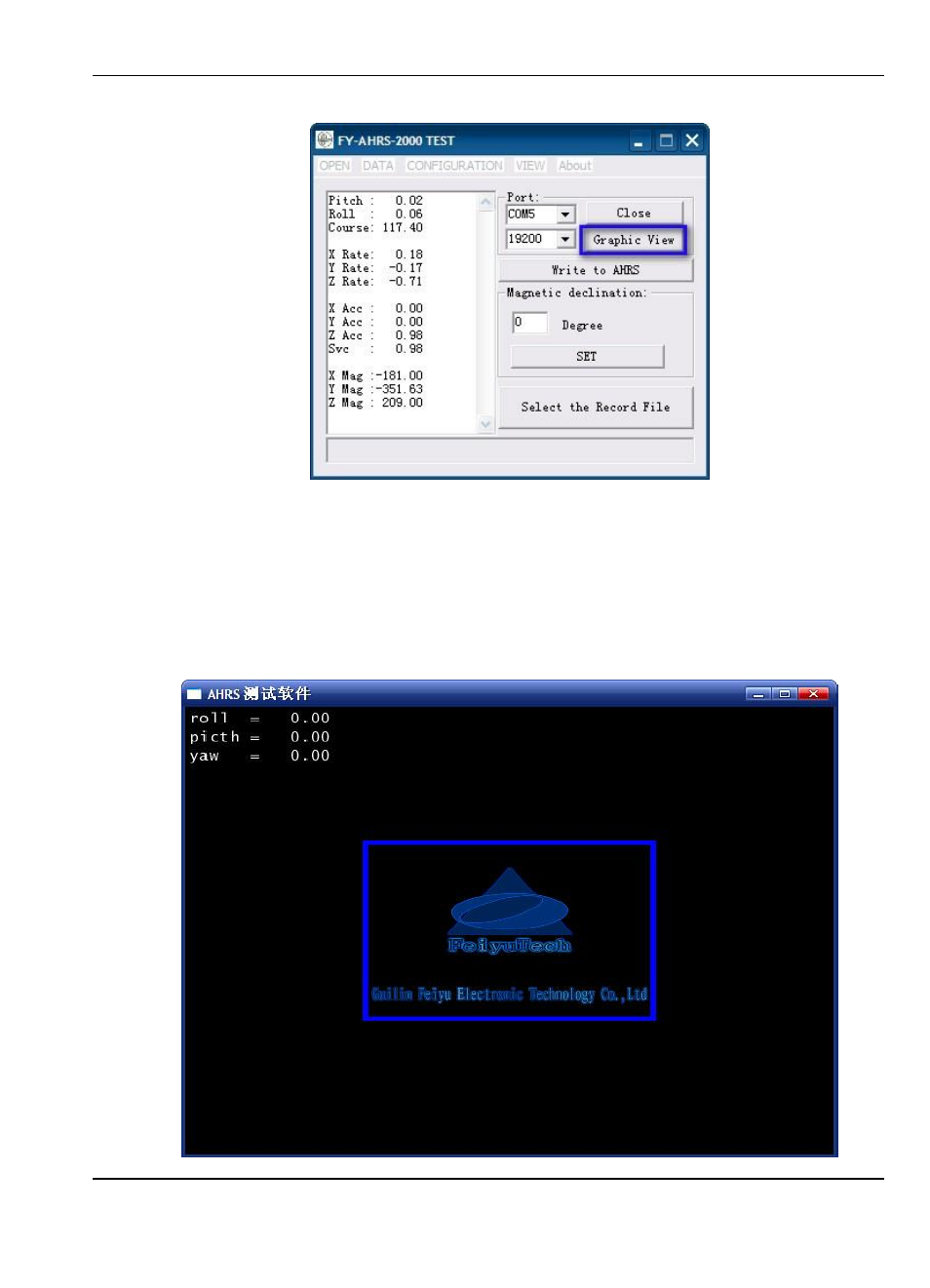

Click "Open Serial Port" button, if the FY-AHRS-2000B has been powered on and in
working status, you will see the attitude, angular rate and other parameters displayed on the left
window. After click "Graphic Demo" button, the 3D graphics demo window will be pop-up.
