Guilin FeiYu Electronic Technology Co., Ltd http://www.feiyudz.cn E-mail：[email protected] Page 7
IV. Please click the set button, after set a parameter. As following, “Param 2”
interface:

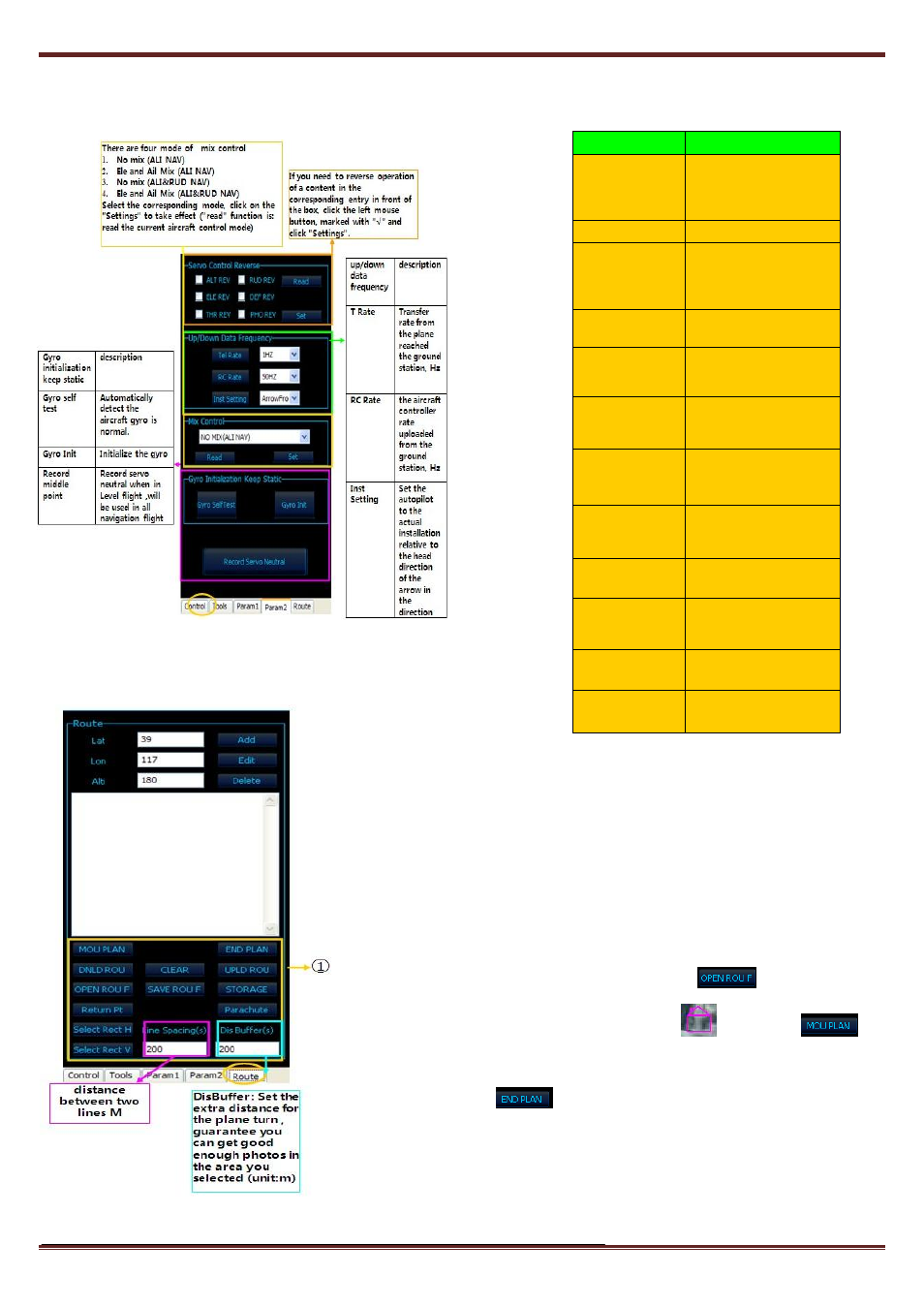

Fig9 Parameters setting --“Param2” Interface
V. As following,“Route 1”interface：
Fig10 Parameters setting --“Route 1” Interface
①
Air Route Setting
a) Set the Home point
Each flight in the different regions should be re-set the home point;
usually the home point is set near the takeoff point. After the GPS lock the
position, in the map will display the current position of the plane, you
can set this point as the home point.
b) As following Fig11, air route setting interface
Click “Route” on Tool bar, click “ ”, via the mouse click in
the map. You will see a house icon “ ”. Then click “ ” ,
waypoint position which you want. Click right mouse button or
“ ” for ending waypoint plan.
Route setting Function description
MOU PLAN clicking on the target location
to add the waypoints which
add information to local
destinations list
END PLAN end mouse plan
DNLD ROU Download the route of the
flight
control electronic
memory to the list of local
routes
CLEAR Delete all the waypoints in the
list of local routes
UPLD ROU Upload a list of local routes in
the route to the electronic
memory of the autopilot
OPEN ROU F Load routes from a local route
file (*. Wpt) to the list of local
routes
SAVE ROU F save routes in the list of local
routes as a local route file (*.
Wpt)
FLASH STORAGE Write uploaded route to the
autopilot,
permanent
preservation
Return Pt click on the target location to
set return point
Parachute Click the target location to set
the aircraft automatic landing
(parachute) position
Select Rect H Horizontal planning routes in
the selected area
Select Rect V Longitudinal planning routes
in the selected area
