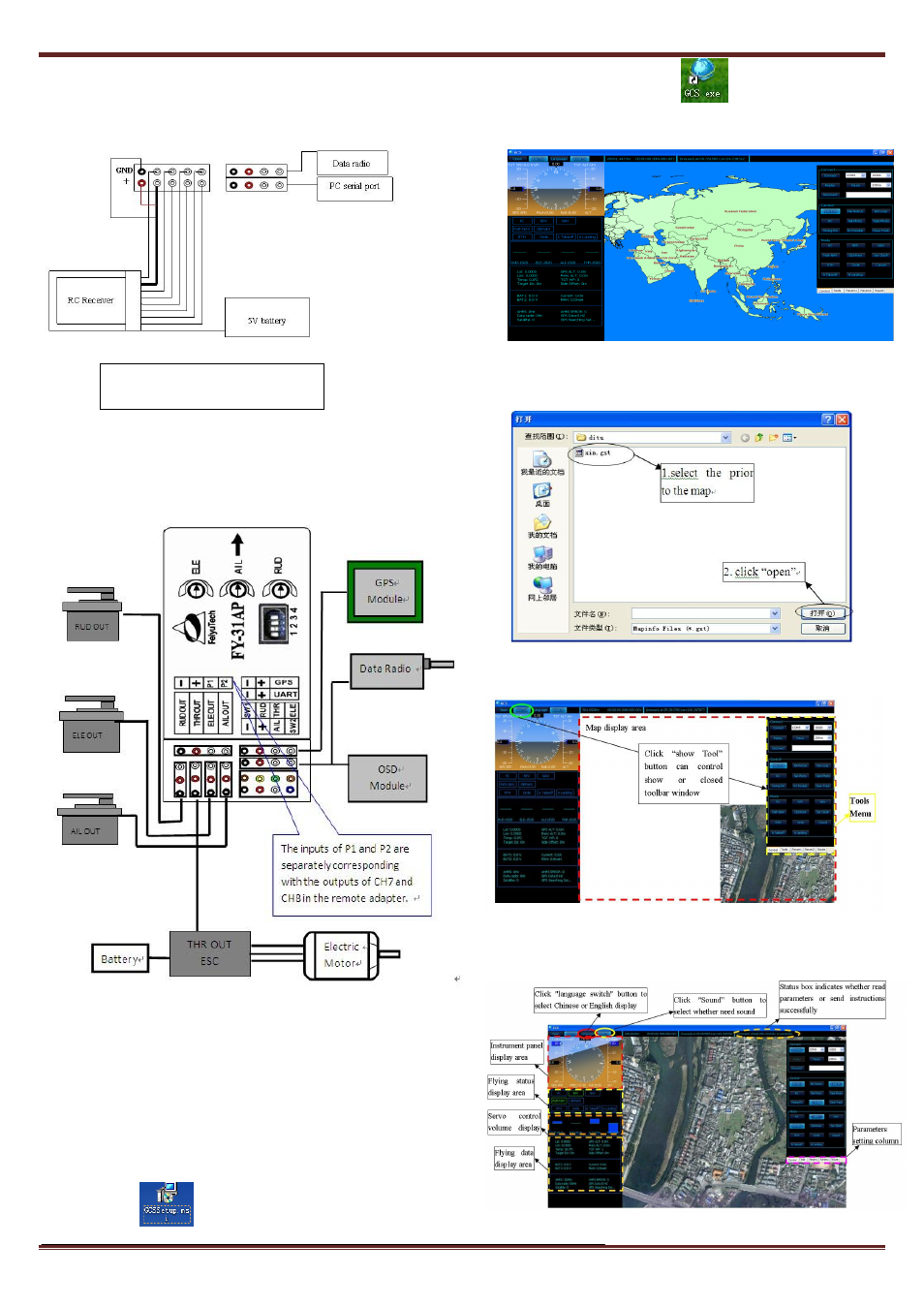

Connection:
4. FYGCS 2D 4.0 Ground Control Station Software
Note: in the connection of a complete set of ground station system,
device power on principle is to power the ground station ’s device first,
when data radio(which on the ground) and remote adapter success
power on, then power on the FY-31AP. In order to prevent the data radio
send too much information , cause congestion, so that the ground
station system can't use normally.
1) Double-click“ ”, installed by default.
2) After installation, double-click “ ”, open the FYGCS 2D Beta,
you can see the following interface.
Fig1 FYGCS 2D 4.0 Main Interface
3) Click “open” menu bar in FYGCS 2D 4.0 main interface, loaded the
electronic atlas of the MapInfo format (*. gst files) into the map window
of the software. As following:
Fig2 FYGCS 2D 4.0 Load Layer Interface
4) After you loaded layer, map information will load into the software as
following:
Fig3 FYGCS 2D 4.0 Map Information Interface
In the GCS you can drag the map by clicking the right button of the
mouse in the map. Use middle mouse button to control the map’s zoom in
or out. Actual display interface as following:
Fig4 Actual Display Interface
The aircraft parts diagram
