GuiLin FeiYu Electronic Technology Co., Ltd
Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyudz.cn [email protected]
Page 4
RC
ABM
3D
6

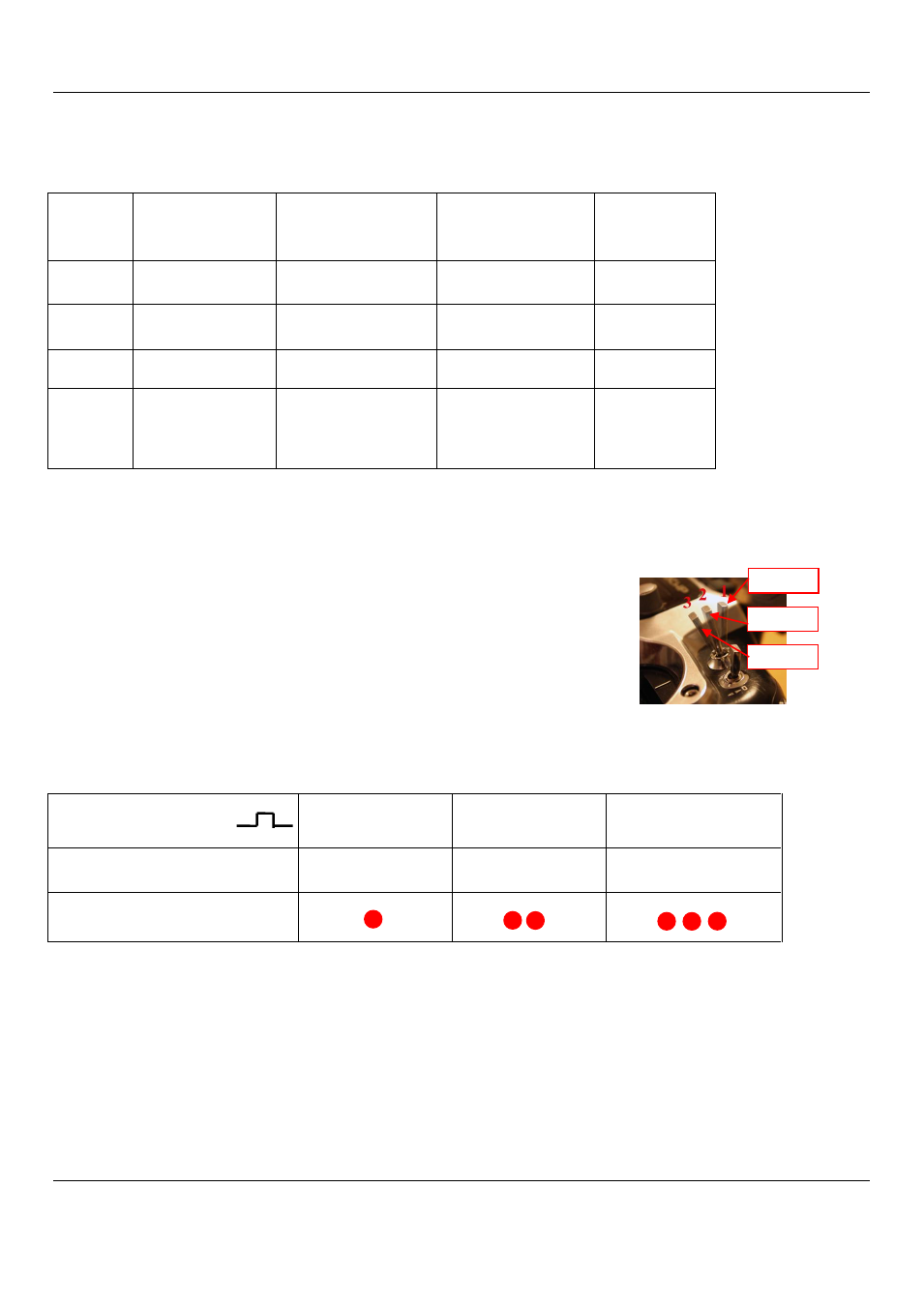

、Servo Interface Connection Instructions
Interface Traditional Flying wing
（Aileron &Elevator
mixed control servo）
V tail
（Elevator &Rudder
mixed control）
Airplanes with
no ailerons
ELE Elevator servo Mixed control servo 1 Mixed control servo 1 Elevator servo
AIL1 Aileron servo 1 Mixed control servo 2 Aileron servo 1 Rudder servo
RUD Rudder servo Rudder servo Mixed control servo 2
AIL2 Aileron servo 2
( when using flap
function )
Aileron servo 2 ( when
using flap function )
7
、Switch Setting For FY-40A Flight Modes
FY-40A requires a minimum of 5-channel RC receiver.4 Receiver
channels are used for aileron (channel 1), elevator (channel 2) ，
throttle (channel 3) and rudder (channel 4) signal output. 1 free
Receiver channels are required to control the FY-40A Flight Modes (a
3-
position switch or dial knob, ”SW”).If you do not connect
SW,FY- 40A will work on “ABM” mode.
Receiver signal output 900～1200US 1200~1800US 1800~2100US
Work Mode RC ABM 3D
LED
8
、Setting The Mixing Control Mode
First, you should set the remote control is the fixed-wing aircraft conventional layout mode,
do not set any mixing control. FY-40A can be achieved " Aileron &Elevator mix control "and "
Elevator &Rudde rmix control ", you can through SW to set it.On SW, within10 seconds from the
“Auto Stabilization mode”→“3D mode”→“Auto Stabilization mode”repeatedly fast switch six
