Page 3
Attention
：When ailerons also were used as the flaps,
Please respectively connect two aileron servos to
AIL1 and AIL2 ports. Make CH6 and AIL channels
linked, also set up a switch to control flap function.
May be only part of the remote control to
support this function. Detailed instructions please
refer to the manual of the remote control.
AIL
RC receiver
AIL1 OUT
AIL1
FY-40A
AIL2
CH6
AIL2 OUT
5

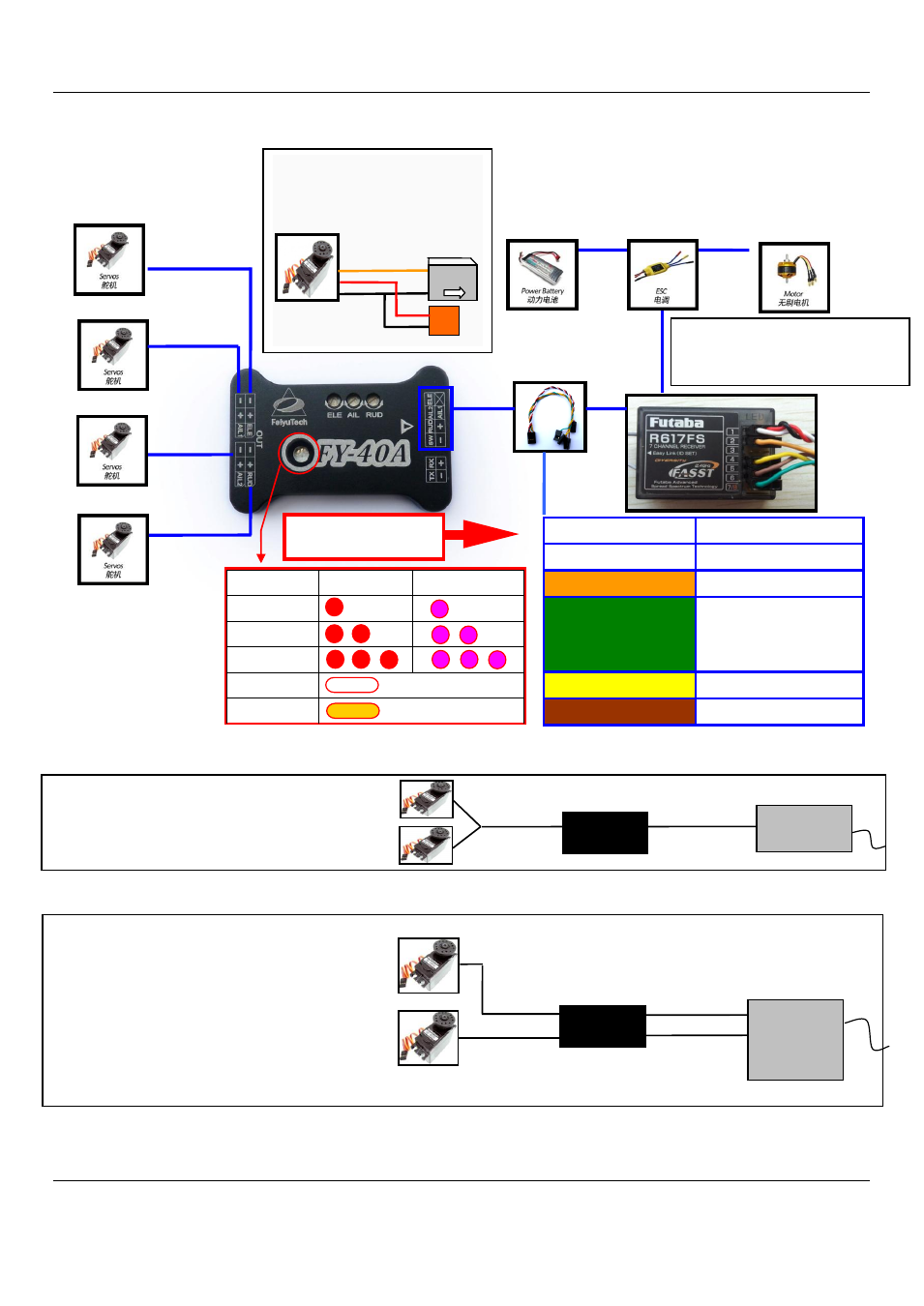

、Connection Diagram
Color Function
White (red & black) Aileron 1 input
Orange Elevator input
Green Aileron 2 input
（when
your aircraft is using
flap
）
Yellow Rudder input
Brown
Switch channel input
ELE
CH5 is used for switch channel. When the
aileron contain flap function and you want
to use it,please set CH6 as second
aileron input.
THR AIL1
AIL2
RUD
State LED Gyro need reset
RC
stabilized
3D
Gyro rest
Mixed
control
Orient the arrow towards
the front of the aircraft
When using large torque servo,
We suggest you power on it
alone, you can refer to below :
5V
FY-40A
+5V
GND
Attention： Normally, please do not use AIL2 port,
just use a Y cable to connect two aileron servos
to AIL1 port. AIL1
Not connect AIL2
AIL1 OUT
Y cable
AIL
RC receiver
FY-40A
