EXFO FTB-5700 Single Ended Dispersion Analyzer for FTB-500 User Manual
Page 16
Getting Started with the Single-Ended Dispersion Analyzer
10
FTB-5700
Inserting and Removing Test Modules
To remove a module from the FTB-500:
1. Exit ToolBox and turn off your unit.
2. Position the FTB-500 so that the left panel is facing you.
3. Turn the retaining screw counterclockwise until it stops.
The module will be slowly released from the slot.
4. Place the FTB-500 so that the right panel is facing you.

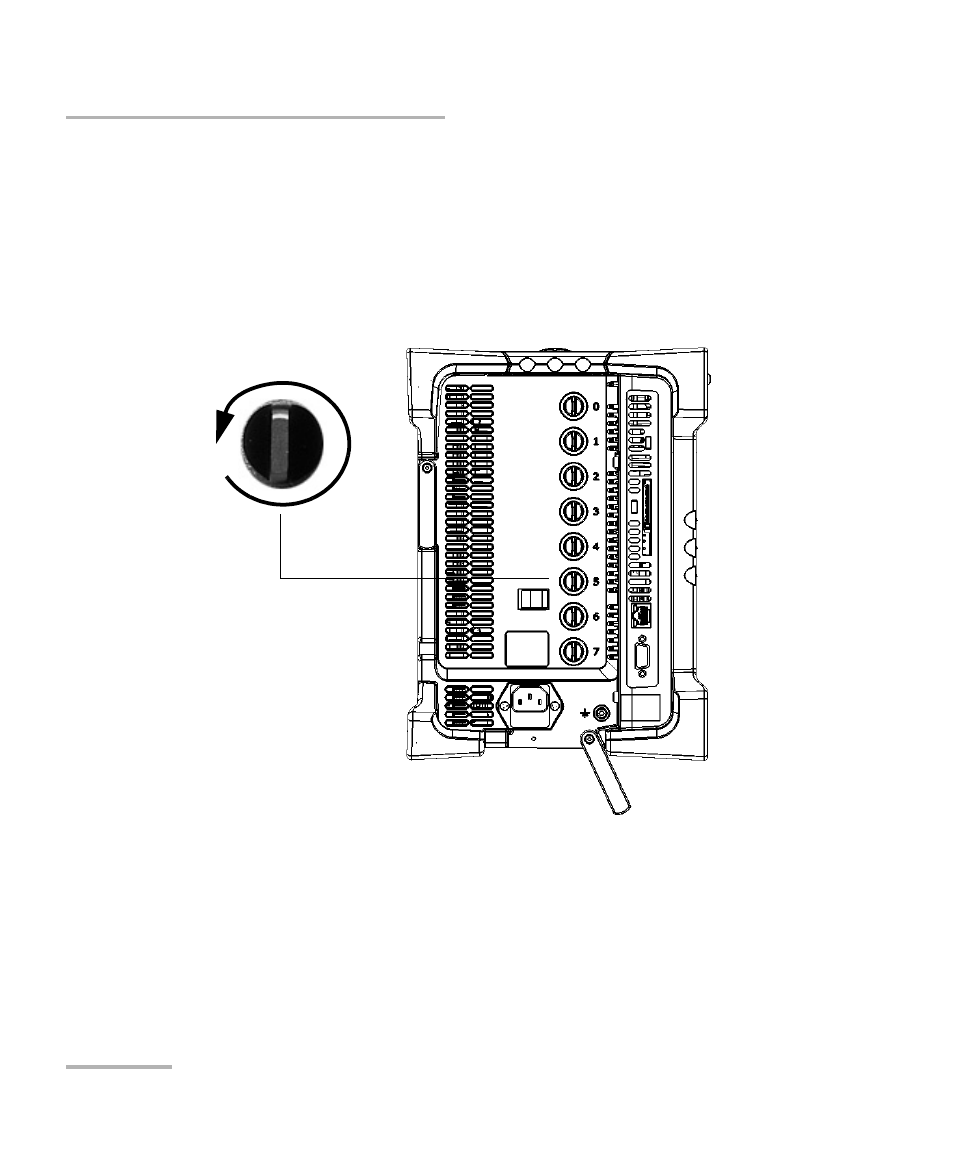

Turn retaining screw knob(s)
counterclockwise
FTB-500 left panel
