Description 3
2 Description
The FLS-110 Optical Polarized Source is a fiber-optic source used with a power
meter to measure power and loss in singlemode fibers, and with a PMD analyzer
such as the FTB-5500 and FTB-5500B for PMD measurements. The unit includes a
LED optical source and a 2 kHz signal generation for fiber identification. The FLS-110
is powered by either the built-in rechargeable NiCd battery pack, the 9 V alkaline
battery, or the AC adapter/charger.

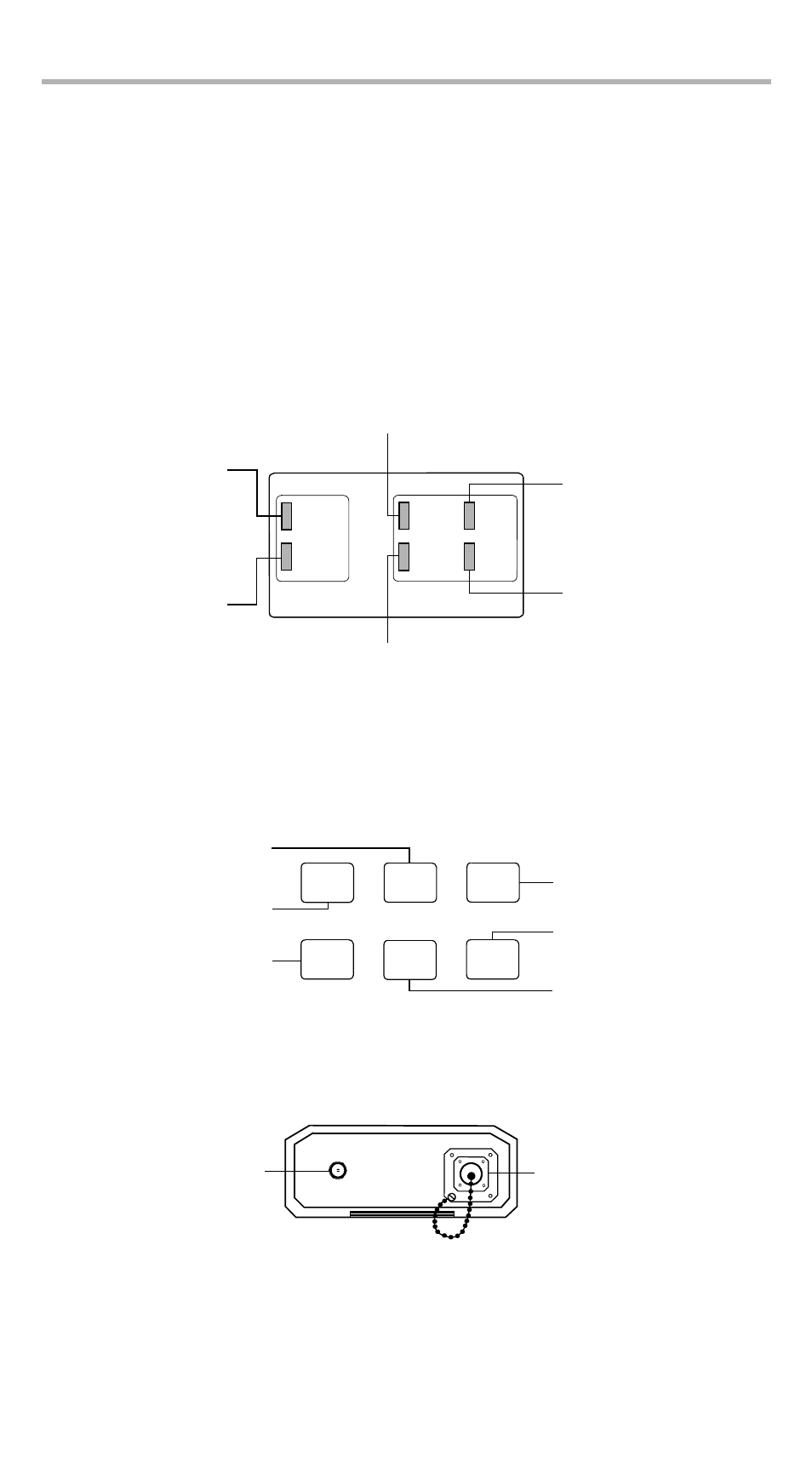

LED Status Indicators
Keypad
Connector Panel
Low NiCd battery pack
AC adapter/charger operation
(blinks when auto-off is activated*)
NiCd battery operation
(blinks when auto-off
is activated*)
9 V battery operation (blinks
when auto-off is activated*)
AC
9V
NiCd
LOW
BAT
SUPPLY
low
high
LEVEL
* Unit powers off after 10 minutes of inactivity
Low output power
source active (lights
up in CW mode,
blinks in 2 kHz mode)
High output power
source active (lights
up in CW mode,
blinks in 2 kHz mode)
low
high
CW on / off Powers unit on or off
(high output power and
CW mode by default)
Selects low output
power
Selects high output
power
auto
2 kHz
off
Activates continuous
wave (CW) signal
Activates and
deactivates auto-off
Activates (2 kHz)
modulated signal
AC adapter/charger input Optical port
