³ Chipset Version is the version number of the chipset for the selected
device.
³ Frequency Band displays the range of signal frequency for the
selected device.
To select a detected device:
1. Press
to open the list.
2. In the list, press the up/down arrows to select the MAC address of the
desired device.
3. Press to confirm the selection and view the results.
HPNA Statistics

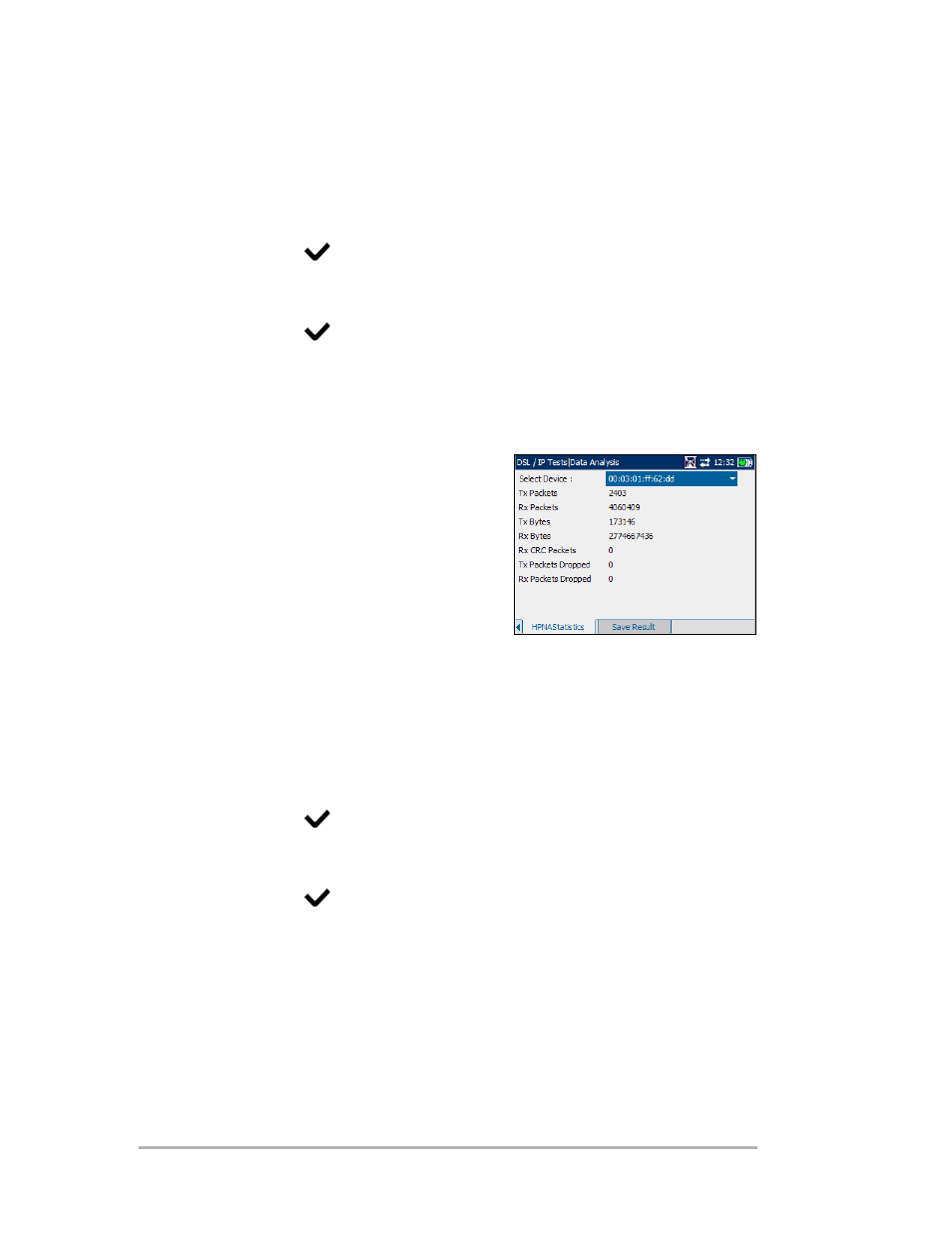

The HPNA Statistics tab allows you to view counter statistics of the
selected HPNA device.
³ Select Device lists all the MAC
addresses of the detected HPNA
devices on the network.
³ Tx Packets is the number of
packets sent.
³ Rx Packets is the number of
packets received.
³
Tx Bytes is the count of bytes sent.
³
Rx Bytes is the count of bytes received.
³ Rx CRC Packets is a count of cyclical redundancy check (CRC) errors
received.
³ Tx Packets Dropped is the number of outgoing packets dropped.
³
Rx Packets Dropped is the number of incoming packets dropped.
To select a MAC address:
1. Press
to open the list.
2. In the list, press the up/down arrows to select the MAC address of the
desired device.
3. Press to confirm the selection and view the test results.
