EXFO ARU-100 HPNA Test Software Option for DSL/IP Tests - Manual (Page 2)

P/N: 1055095 April 2009 2/3

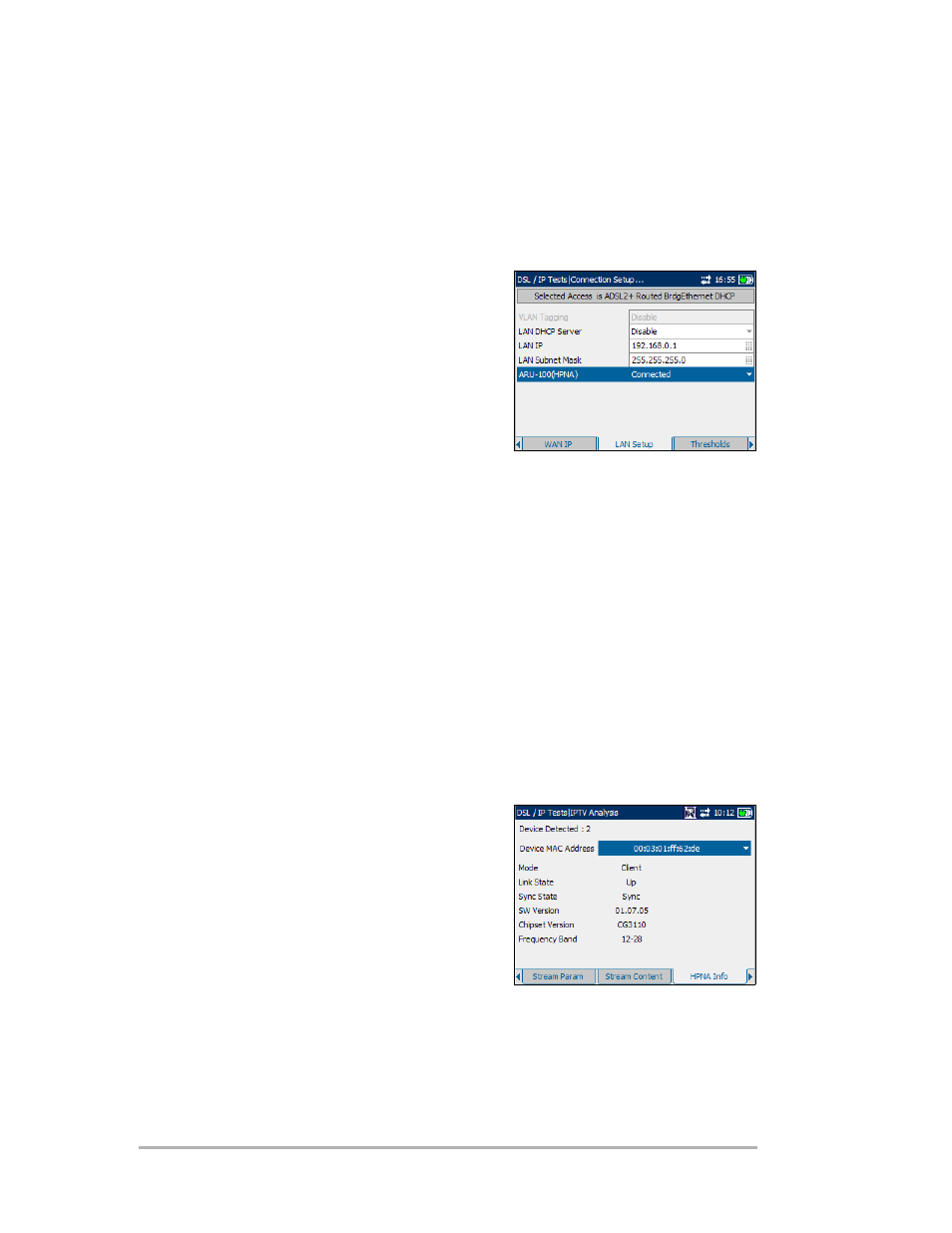

LAN Setup
The LAN Setup tab allows you to configure the parameters required when
working in Throughmode, and the local area network (LAN) is connected
to the ethernet interface. These parameters apply only when the WAN
access mode is set to Routed.The described Selected Profile is composed
of the current LineMode and AccessMode selections.
The available parameters are the
following:
³ VLAN Tagging enables the unit to
recognize frames with a specified
PVID. This entry is disabled if
VLAN Support is set to Disable on
the WAN Access pane.
³
LAN DHCP Server enables the
dynamic host configuration
protocol (DHCP) mode for the LAN side of the connection.
³
LAN IP is the local network IP address of the unit.
³
LAN Subnet Mask is the network address mask used to identify if the
IP address is within the same local area network.
³
ARU-100(HPNA) enables you to be Connected or Disconnected from
the HPNA test probe. Connected allows monitoring of HPNA Info in a
triple-play application. The entry is only visible with the HPNA software
option and if Line Mode selected is not HPNA-coax.
Note: The following new HPNA results tabs are now available for all DSL/IP tests.
HPNA Info
The HPNA Info tab allows you to view the results of the HPNA devices
detected on the network.
³
Device Detected displays the total
number of detected HPNA devices
on the network.
³ Device MAC Address lists all the
MAC addresses for the detected
HPNA devices.
³ Mode displays Master or Client for
the selected device.
³ Link State is the Up to Down (or vice versa) routing protocol of the
network link for the selected device.
³
Sync State is the sync status of the selected device.
³
SW Version is the software version number of the selected device.
