E-Tech VN series 5" close-coupled pumps - Manual (Page 9)

9/20
by Franklin Electric
,WLVRXUSROLF\WRFRQWLQXRXVO\GHYHORSDQGLPSURYHRXUSURGXFWVWKHUHIRUHZHUHVHUYHWKHULJKWWRDPHQGVSHFL¿FDWLRQVZLWKRXWSULRUQRWLFH
13.
11.
15.
14.
12.
16.

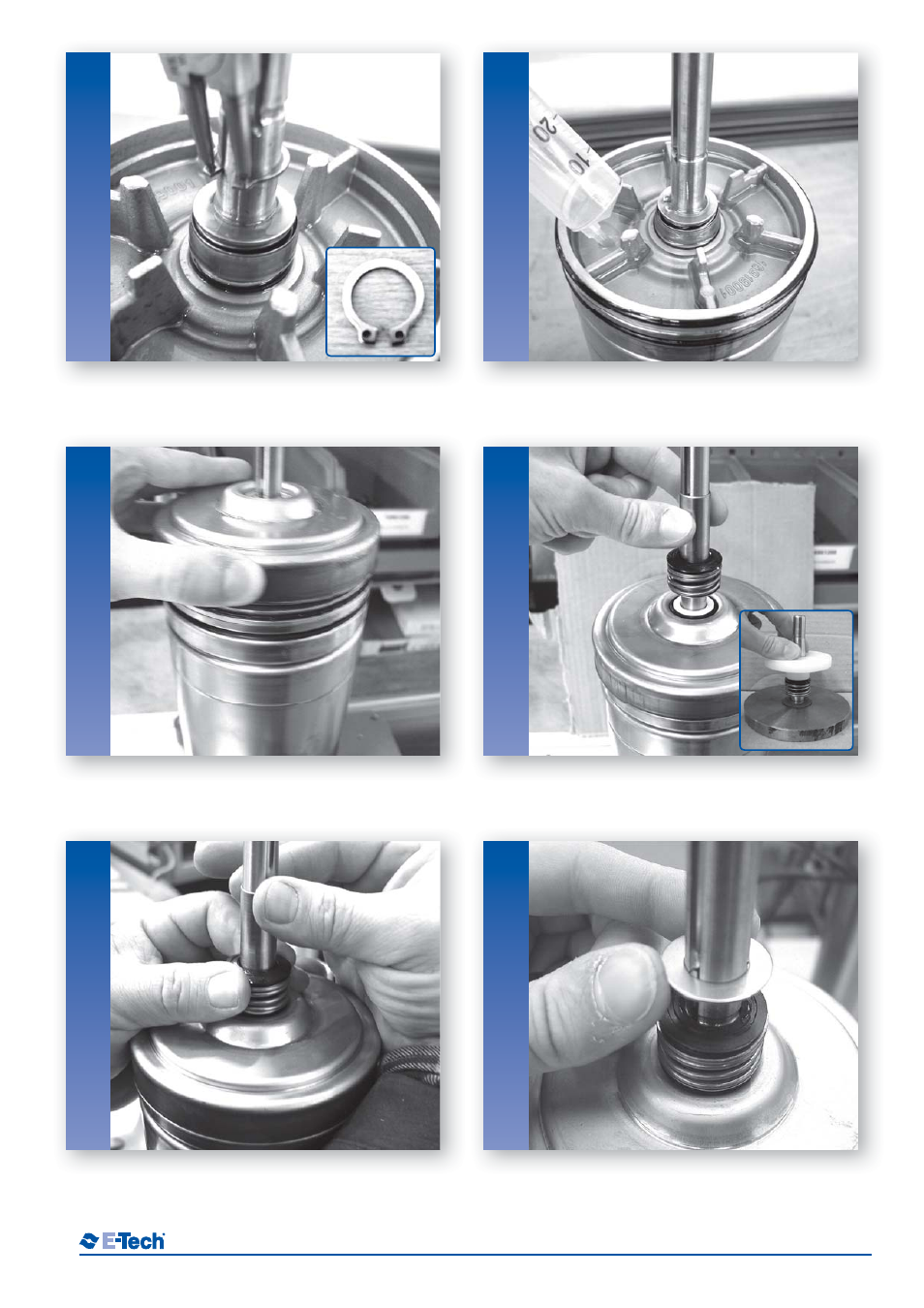

Position two new o-rings in their sits on the motor housing
and lubricate them. With caution in not damaging the
RULQJV¿WWKHRLOFKDPEHUFRYHU
Position the circlip in its housing.
Bring the seal faces together and remove the tool.
3RVLWLRQ D QHZ ¿[HG IDFH RI WKH PHFKDQLFDO VHDO LQWR LWV
housing. Lubricate the rubber of the rotating part of a new
PHFKDQLFDOVHDO)LWWKHVHDORQWRWKHVSHFL¿FWRRODQGVOLGH
it down on the shaft.
%\ PHDQV RI D V\ULQJH ¿OO WKH RLO FKDPEHU ZLWK PO RI
ESSO Marcol 82 oil or equivalent.
Position the shoulder washer on the mechanical seal.
