,WLVRXUSROLF\WRFRQWLQXRXVO\GHYHORSDQGLPSURYHRXUSURGXFWVWKHUHIRUHZHUHVHUYHWKHULJKWWRDPHQGVSHFL¿FDWLRQVZLWKRXWSULRUQRWLFH
19.
17.
21.
20.
18.
22.

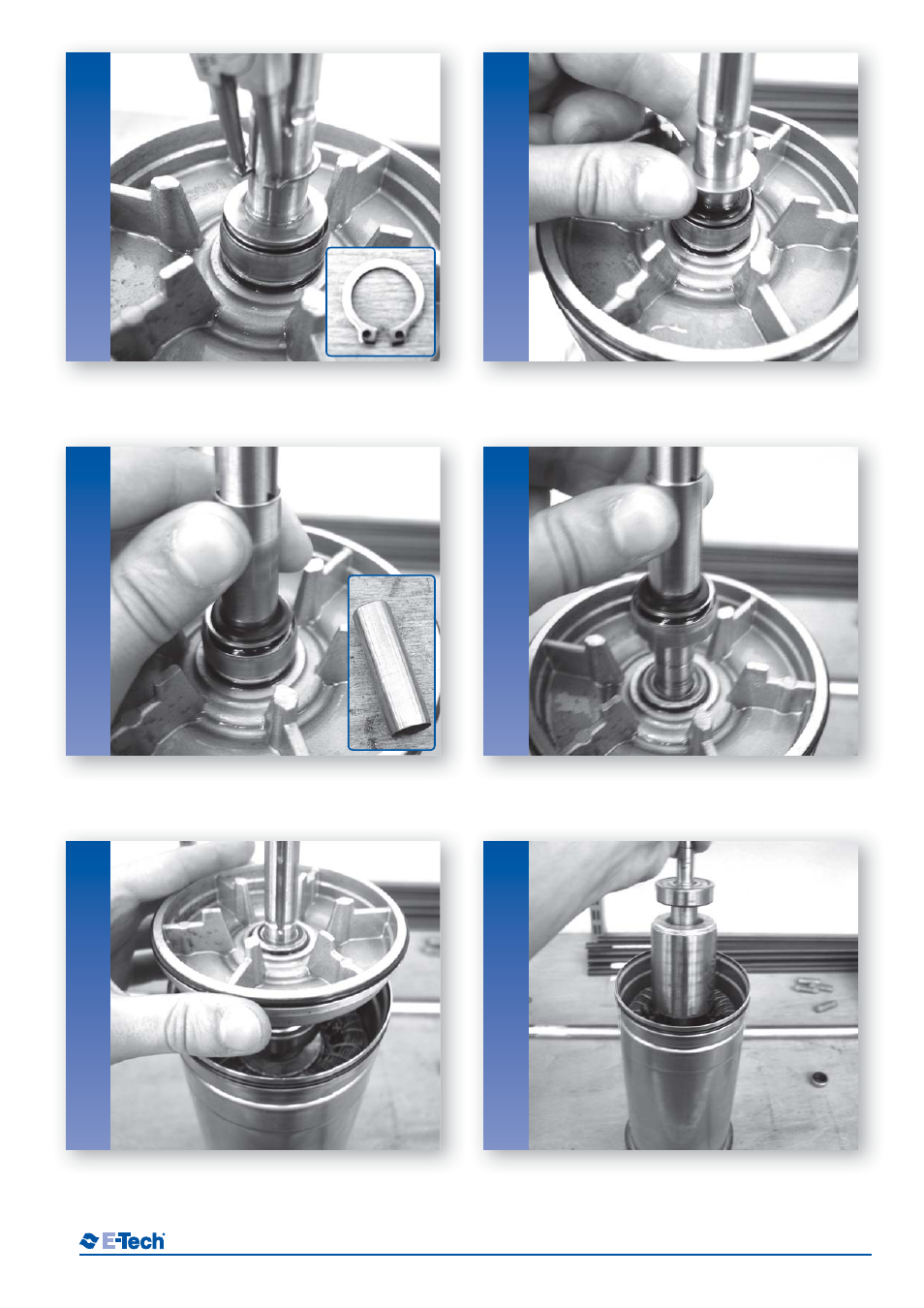

,QVHUWWKHVSHFL¿FWRROSLSHKDYLQJYHU\¿QHZDOOEHWZHHQ
the rubber of the mechanical seal and the shaft.
Remove the circlip.
Remove the alluminum seal housing.
Pull the tool holding the mechanical seal upwards to the
end of the shaft.
Remove the shoulder washer of the second mechanical
seal.
Pull out the rotor.
