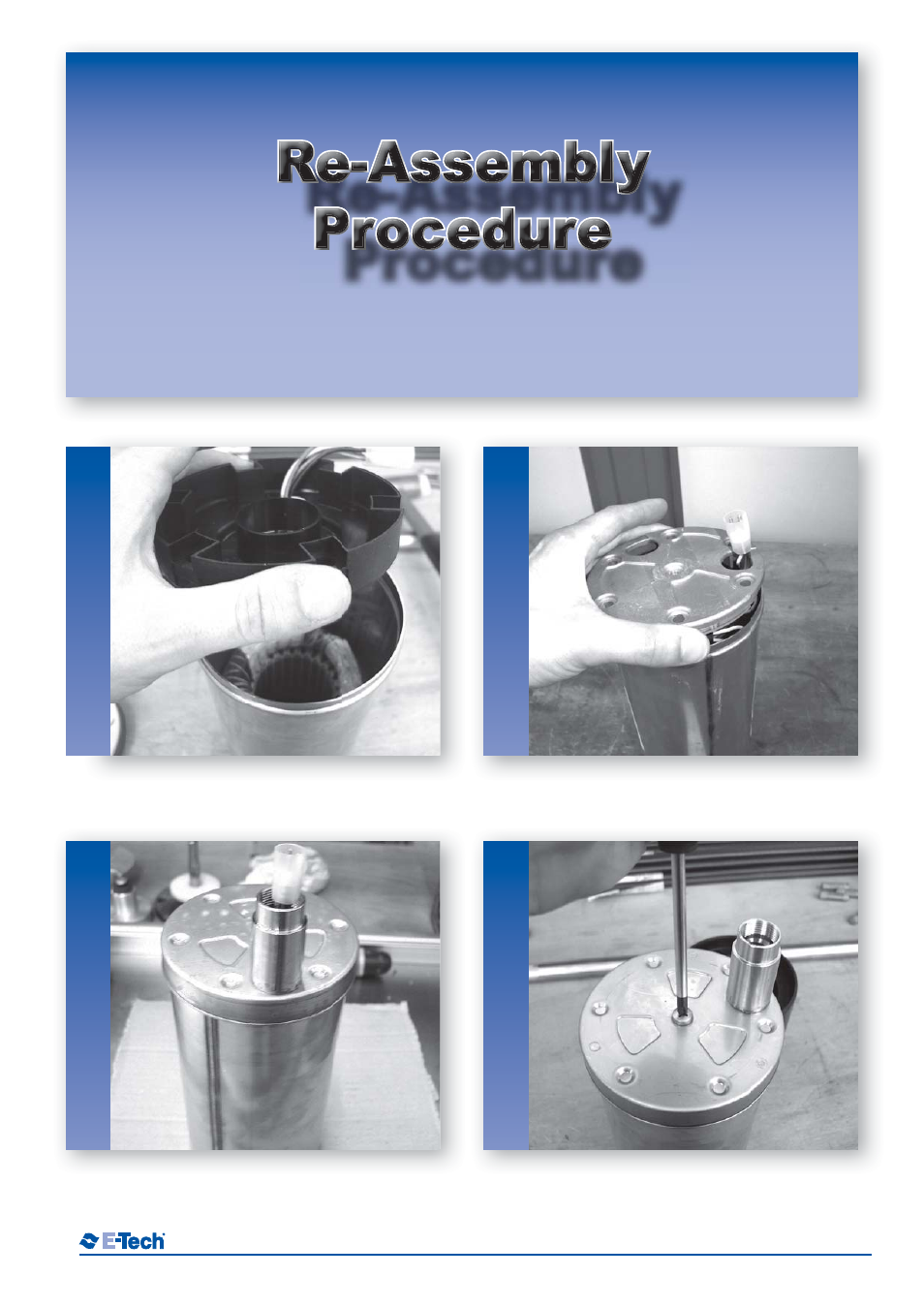

1.
3.
2.
4.
Position the electric wire protection at the top of a new
stator.
3RVLWLRQDQHZRULQJDQG¿WWKHXSSHUPRWRUFRYHUPDNLQJ
sure not to damage the o-ring. Bring the wire’s connector
out.
Position the upper bering housing and slide through the
electric wire and connector from the stator. There may
be a second set of wires and connector when the unit is
HTXLSSHGZLWKDÀRDWHUOHYHOFRQWURO
Position the screw in tightly after having replaced the o-ring
with a new one.
