Eskape
™
200 Hardwater Series (69161)
HIGH PERFORMANCE ICE FISHING GEAR
®
Page 13
GetEskimo.com
1-800-345-6007
3
7
16
14
10
4
2
21
12
18
9
19
12
18
11
11
8
6
5
13
1
15
17
22
16
20

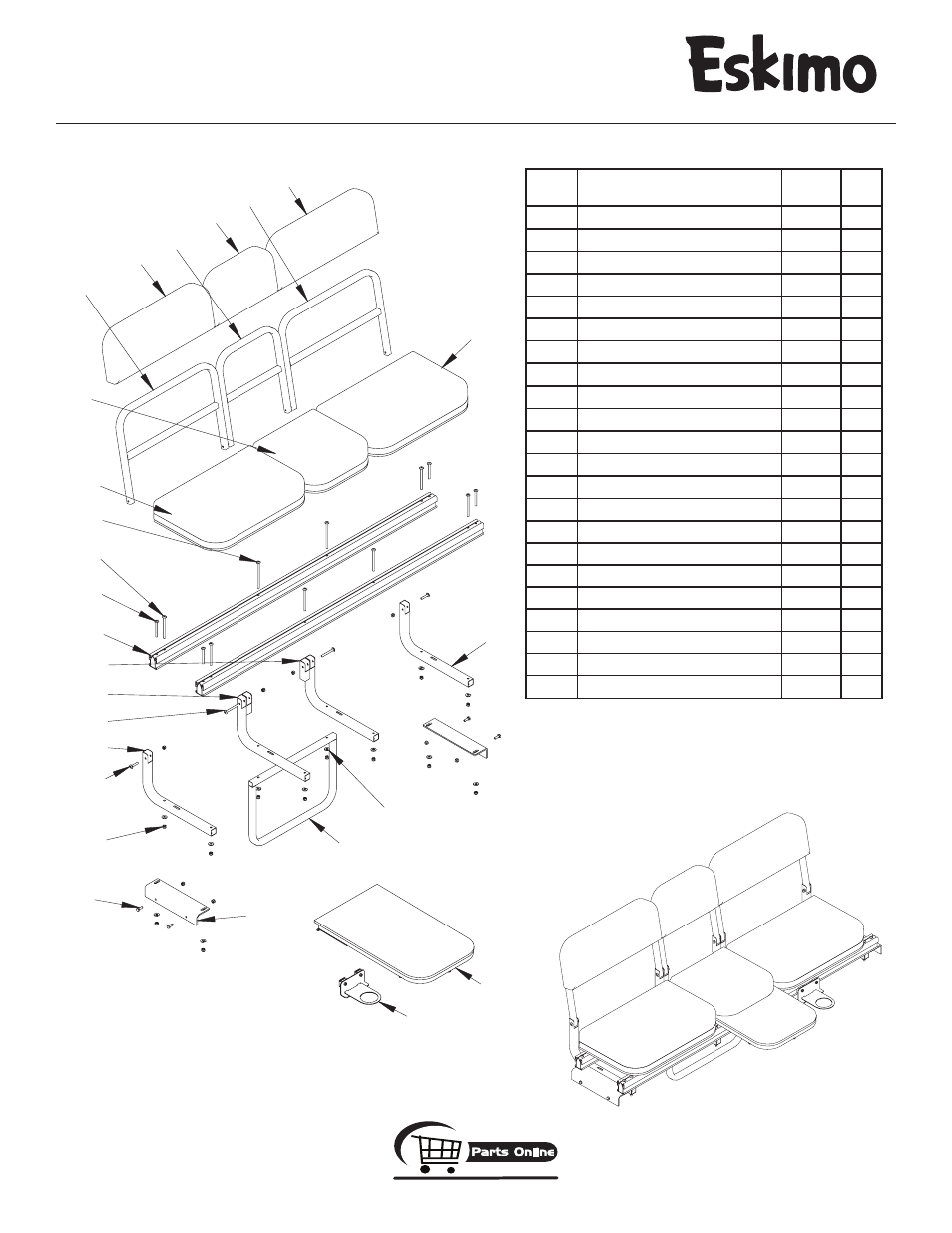

ESKAPE 200 SEAT PARTS
REf.
NO.
DESCRIPTION
PART
NO.
QTy.
1
BOLT 1/4-20 X 3/4” HH gR5
8930
4
2
WASHER 1/4”
48261
12
3
BOLT, 1/4-20 X 1-1/4” PTH gR2
67400
2
4
BOLT 1/4-20 X 3-1/2” PTH gR5
67402
6
5
BOLT 1/4-20 X 4-1/4” PTH gR5
67403
2
6
BOLT 1/4-20 X 2-1/2” PTH gR5
67430
4
7
NUT 1/4-20 HEX NYLOC
67538
20
8
SEAT ASSEMBLY, 12” RED
68004
1
9
BACKREST PAD, 12” RED
68008
1
10
SEAT BRACE WELDMENT
68024
1
11
SEAT ASSEMBLY, 19” RED
68153
2
12
BACKREST PAD, 19” RED
68154
2
13
RAIL, BENCH SEAT
68301
2
14
BRACKET, SEAT MOUNT
68304
2
15
BRACKET, BACKREST LEFT
68310
1
16
BRACKET, BACKREST OUTER
68322
2
17
BRACKET, BACKREST RIgHT
68323
1
18
BACKREST WELDMENT, 19”
68342
2
19
BACKREST WELDMENT, 12”
68345
1
20
TABLE
68447
1
21
ROD HOLDER ASSEMBLY
68449
1
22
BOLT 1/4-20 X 2-1/4” PTH gR5
69279
2
