Eskimo 69163 - Manual (Page 13)

Eskape ™ 350 Hardwater Series (69163)
HIGH PERFORMANCE ICE FISHING GEAR
®
Page 13
GetEskimo.com
1-800-345-6007
1
12
2
15
20
11
18
10
17
11
18
9
9
8
6
4
5
19
14
16
22
15
3
7
13
21

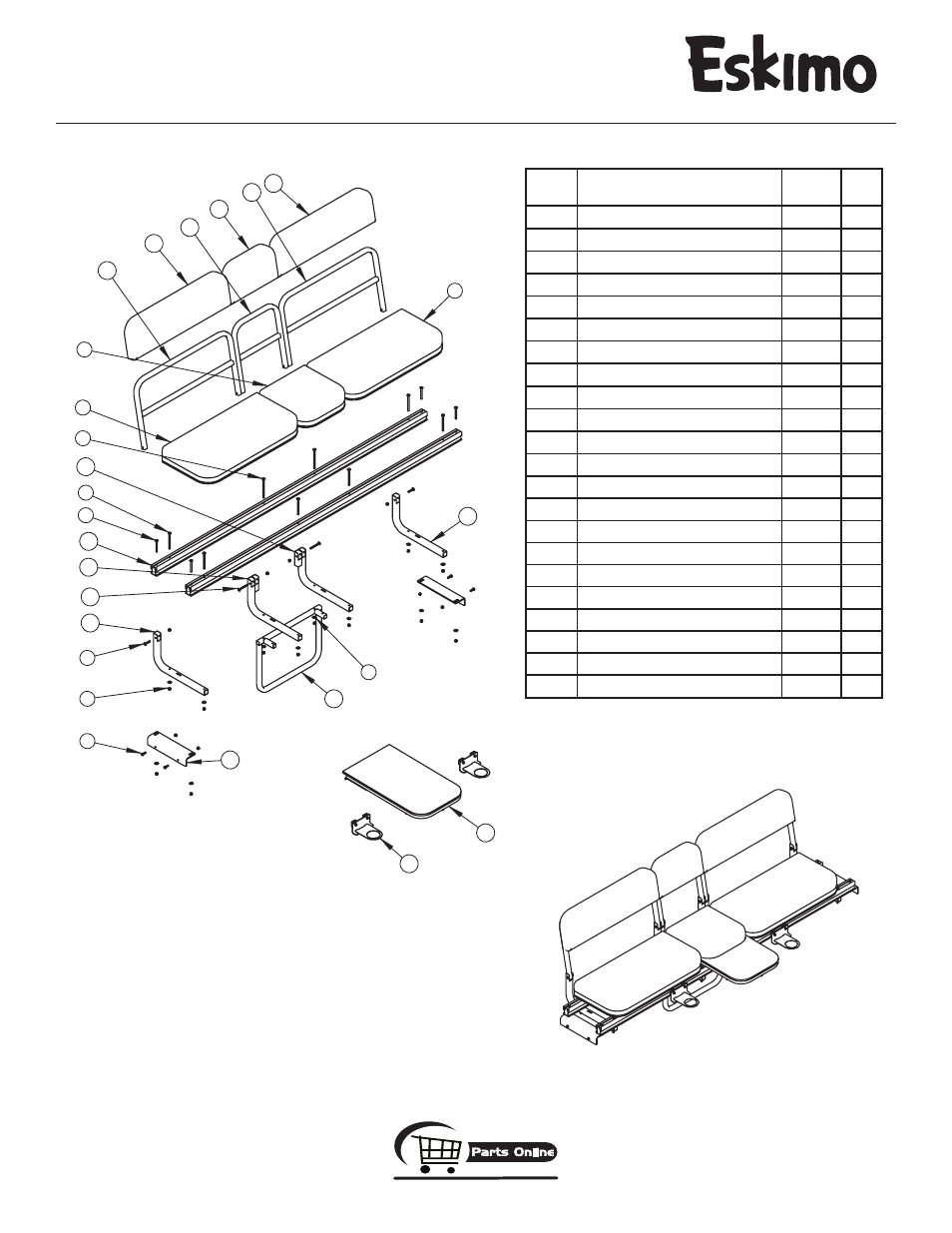

ESKAPE 350 SEAT PARTS
REf.
NO. DESCRIPTION
PART
NO. QTy.
1 BOLT 1/4-20 X 3/4” HH gR5 8930 4
2 WASHER 1/4” 48261 12
3 BOLT, 1/4-20 X 1-1/4” PTH gR2 67400 2
4 BOLT 1/4-20 X 3-1/2” PTH gR5 67402 6
5 BOLT 1/4-20 X 4-1/4” PTH gR5 67403 2
6 BOLT 1/4-20 X 2-1/2” PTH gR5 67430 4
7 NUT 1/4-20 HEX NyLOC 67538 20
8 SEAT ASSEMBLy, 12” RED 68004 1
9 SEAT ASSEMBLy, 25” RED 68006 2
10 BACkREST PAD, 12” RED 68008 1
11 BACkREST PAD, 25” RED 68009 2
12 SEAT BRACE WELDMENT 68026 1
13 BRACkET, SEAT MOUNT 68304 2
14 BRACkET, BACkREST LEFT 68310 1
15 FRAME, SEAT BOTTOM 68322 2
16 BRACkET, BACkREST RIgHT 68323 1
17 BACkREST WELDMENT, 12” 68345 1
18 BACkREST WELDMENT, 25” 68348 2
19 RAIL, BENCH SEAT 68351 2
20 TABLE 68447 1
21 ROD HOLDER ASSEMBLy 68449 2
22 BOLT 1/4-20 X 2-1/4” PTH gR5 69279 2
