QUICKFLIP ™ 1 PARTS LIST
REF.
NO. DESCRIPTION PART NO. QTY.
1 SLED 15502 1
2 HINGE 15062 2
3 POLE CAP 15295 8
4 FRAME SUPPORT POLE 15017 4
5 HINGE SUPPORT STRAP 11203 2
ITEMS BELOW NOT SHOWN
- WASHER 1/4” FLAT ZINC 48261 16
- NUT 1/4-20 HNYLK ZN 67538 16
- BOLT 1/4-20 X 2-1/4 PTH ZN 69279 8
- BOLT 1/4-20 X 3/4” HH GR5 ZN 8930 8
- ROPE 1/4” X 8” TWISTED BLK 8930 1
- SCREW 6 X 3/8” PTHA ZN 69629 12
- EDGE TRIM 1/4 IN CUT TO 93.5 INCH 69654 1

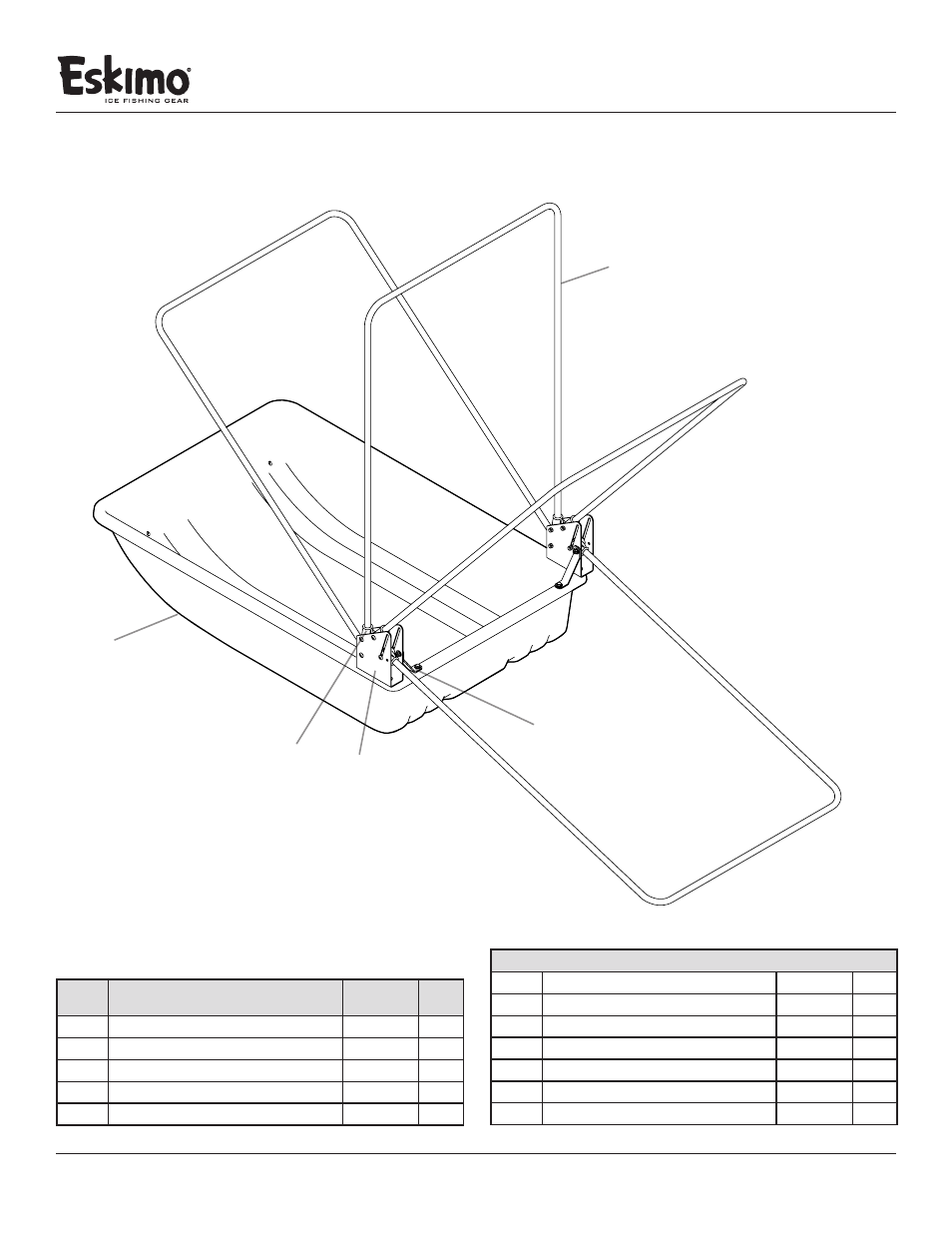

PARTS EXPLOSIONS
QuickFlip ™ 1
1
2
3
4
5
