ISA-44RAL-OD / ISA-44RAH-OD ENMET Corporation
13
6.0 Calibration 6.0 Calibration
6.1 Carbon Monoxide Detection Channel Calibration
The following procedure is for checking the calibration level and for recalibrating the Carbon Monoxide Channel of the
ISA-44RAL-OD. Refer to Figure 5 and Figure 2.
Perform A Complete Recalibration Periodically (at least monthly) and:
•
When you replace the sensor.
•
When the sensor encounters severe conditions (i.e., gross exposure to smoke or liquid hydrocarbon).
M ATERIALS
•
Cylinders of calibration gas of known CO concentration in air (i.e. 20 ppm and 50 ppm CO in air.).
D O N OT use CO in an inert carrier gas, such as nitrogen or argon.
•
Calibration gas fixture (with quick-disconnect fitting – ENMET part number 03605-001)
•
Small screwdriver (for potentiometer adjustment)
•
dc voltmeter

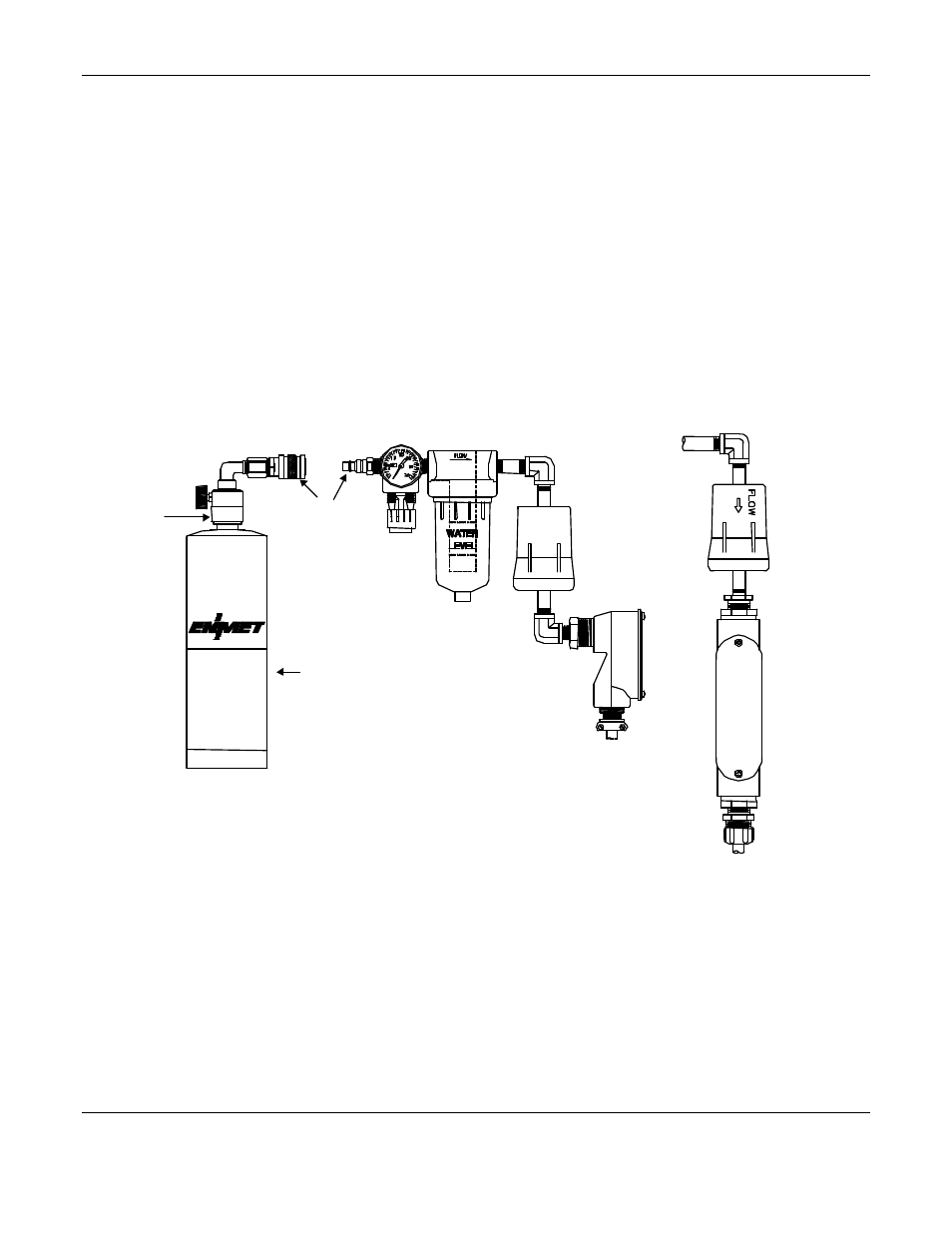

Figure 5: Test Gas Hook-up
P ROCEDURE
1. Turn operation switch to H ORN O FF . Be sure humidifier bottle is filled with tap water to Water Level mark.
2. Turn operation switch to P URGE O N . Measure purge voltage across TB-6(+) and TB2-7(-). It should be 1.6 Vdc +/-
.03 Vdc. If not 1.6 Vdc +/- .03 Vdc, adjust Purge Adjust Potentiometer (see Figure 2) until desired reading is shown.
Turn operation switch to H
ORN O FF and measure sensor heater voltage across TB2-6 and TB2-7. It should now read
0.86 Vdc +/- .03 Vdc. If it is not 0.86 Vdc +/- .03 Vdc, adjust Heater Adjust Potentiometer (see Figure 2) until
desired reading is shown.
3. Turn operation switch back to P URGE ON . Purge at least one hour, up to overnight.
R EMEMBER : If you suspect contaminated air in your compressor system, use clean bottled air to supply the sensors with a
continuous airflow.
4. After purging, turn operation switch to O PERATE . Allow 30 minutes to stabilize.
5. Remove the compressed air line and insert the calibration apparatus (see Figure 5).
ENMET
Test/Calibration
Gas
Calibration
Adapter
Pneumatic
Quick Release
Fittings
