TARGET Series ENMET Corporation
3

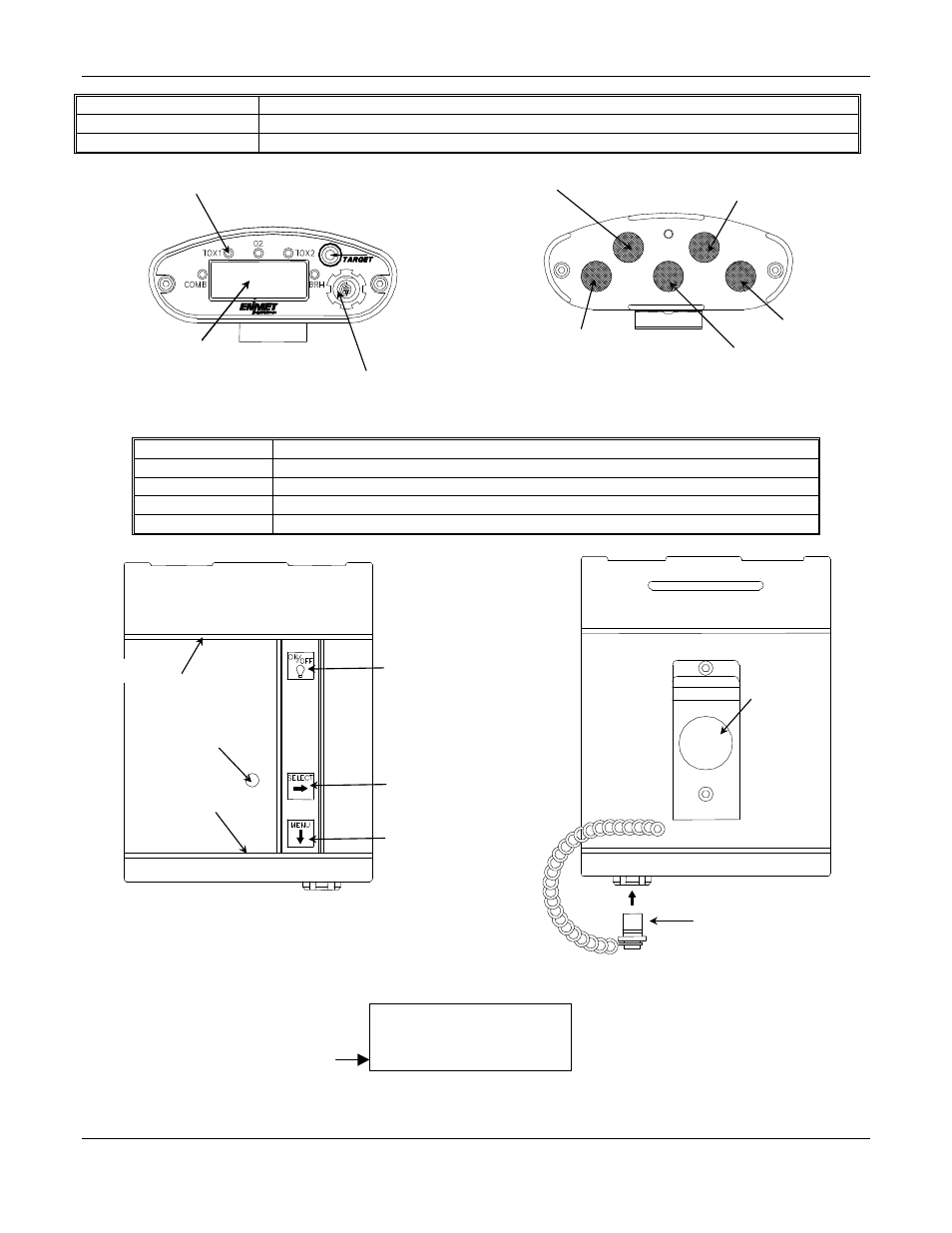

See Figures 1 and 2
Visual Alarms There are visual alarms for each of the gas sensors installed.
Display 4 line by 20 character dot-matrix LCD with on-demand back light.
I/O and Charging Port Connector for battery charger, computer cable, remote annunciator cable, and earphone.
Figure 1: Front View Figure 2: Sensor View
See Figures 3 and 4
Horn Audio Alarm
ON/OFF Button Power button and back light
SELECT Button SELECT button and audio defeat
MENU Button MENU button
Gasket For sealing instrument enclosure
Figure 3: Top View Figure 4: Bottom View
Status Line
Figure 5: Main Gas Display
02 20.9%
CO 0ppm H2S 0ppm
Mth0%LEL BRH 0ppm
Visual alarms
Display
I/O and Charging Port
BRH
Oxygen
Tox 1
Tox 2
Combustible
Display
Gasket
Horn
Gasket
On/Off
Button
Select
Button
Menu
Button
Belt Clip
Dust Cap
