Elenco 23 Range 20k/V VOM in Kit Form - Manual (Page 8)

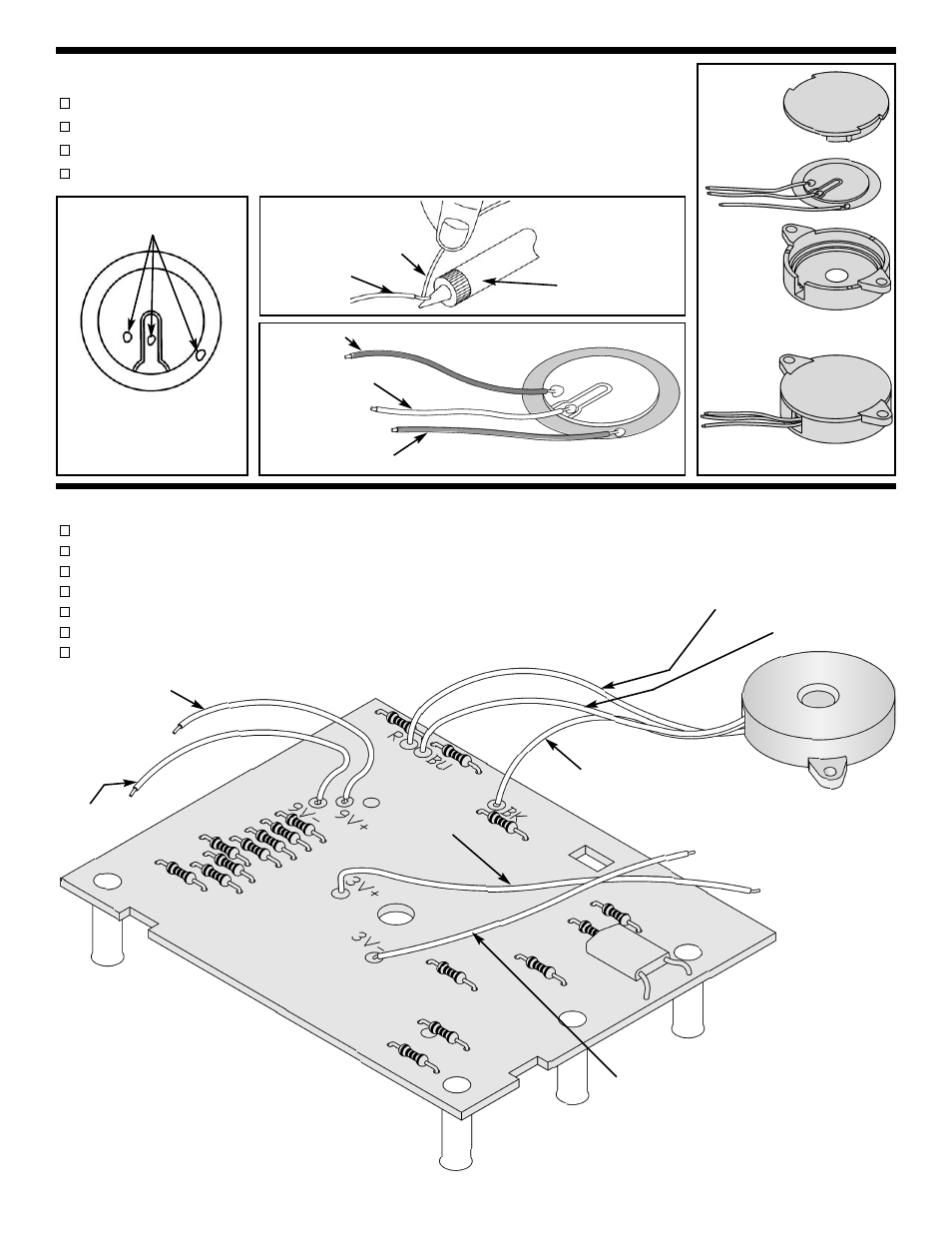

ASSEMBLE THE BUZZER
Tin the buzzer in the three locations shown in Figure Ka.
Tin both ends of the 3.5” red, white, and green wires as shown in Figure Kb.
Solder the red, white, and green wires to the buzzer (see Figure Kc).
Place the buzzer into the holder and snap together (see Figure L).
Figure L
SOLDER BUZZER AND BATTERY CLIP WIRES TO PC BOARD
Solder the red buzzer wire to point R on the PC board.
Solder the white buzzer wire to point BU on the PC board.
Solder the green buzzer wire to point BK on the PC board.
Tin both ends of the 3.5” red wire and solder to point 3V+ on the PC board.
Tin both ends of the white wire and solder to point 3V– on the PC board.
Tin both ends of the 2.5” red wire and solder to point 9V+ on the PC board.
Tin both ends of the 2.5” yellow wire and solder to point 9V– on the PC board.
-7-
Tin Buzzer
Wire
Solder
Soldering Iron
Figure Ka
Figure Kb
Figure Kc
Red Wire
Green Wire
White Wire
Figure M
Red Wire
White Wire
Red Wire
White Wire
Green Wire
Yellow Wire
Red Wire
