Install battery clips – Elenco 23 Range 20k/V VOM in Kit Form User Manual
Page 10

-9-
INSTALL BATTERY CLIPS
Install the PC board into the case (see Figure O).
Align the buzzer holder over the two posts and press it down in place (see Figure O).
Install the two single and one double battery clip as shown in Figure O.
Solder the red and white wires from the PC board locations 3V+ and 3V– to the single battery contacts (see
Figure P).
Solder the red and yellow wires from the PC board locations 9V+ and 9V– to the single battery contacts (see
Figure P).

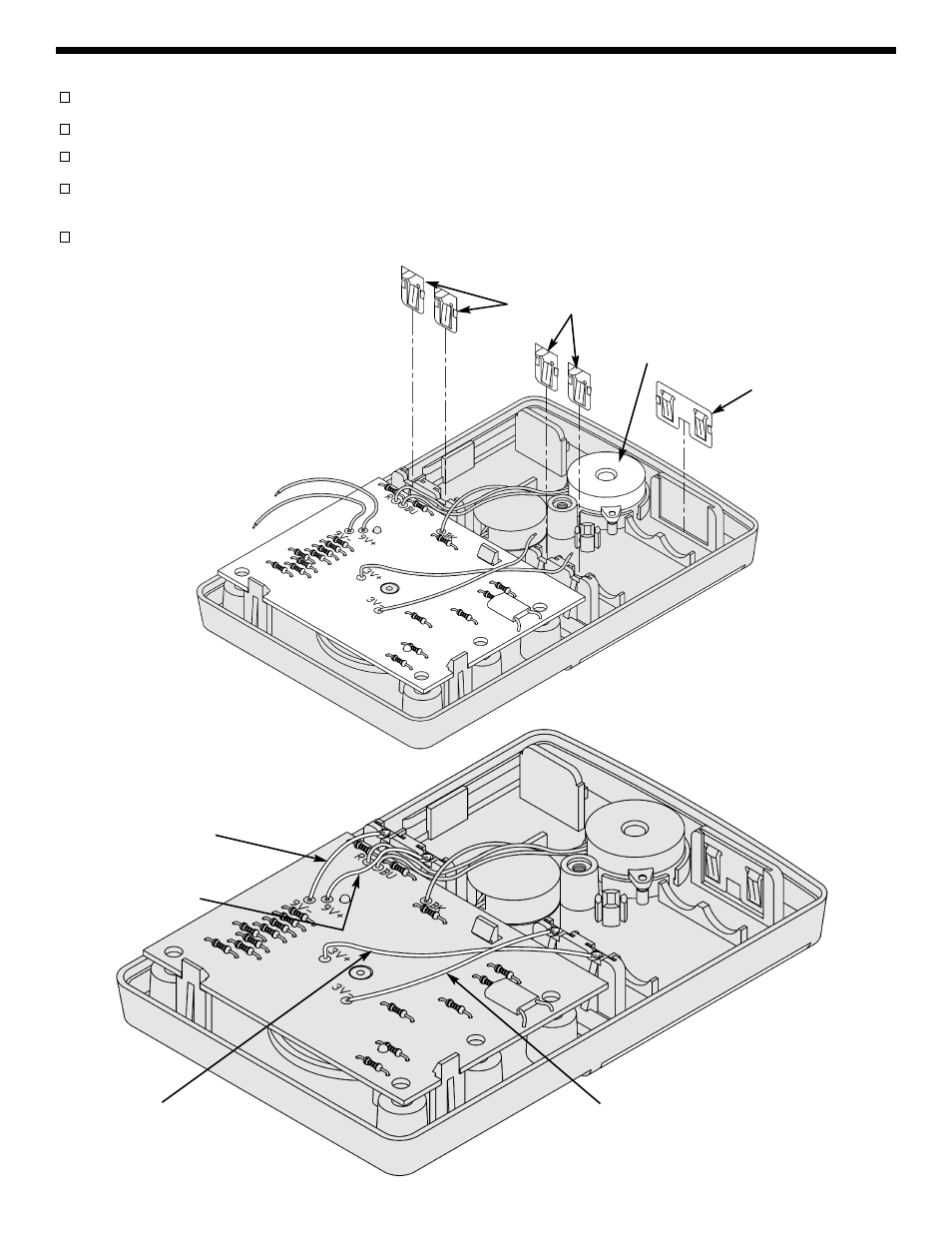

Figure O
Double Battery Clip
Single Battery Clips
Buzzer Assembly
Figure P
Red Wire from 3V+
White Wire from 3V–
Red Wire from 9V+
Yellow Wire from 9V–
