-8-

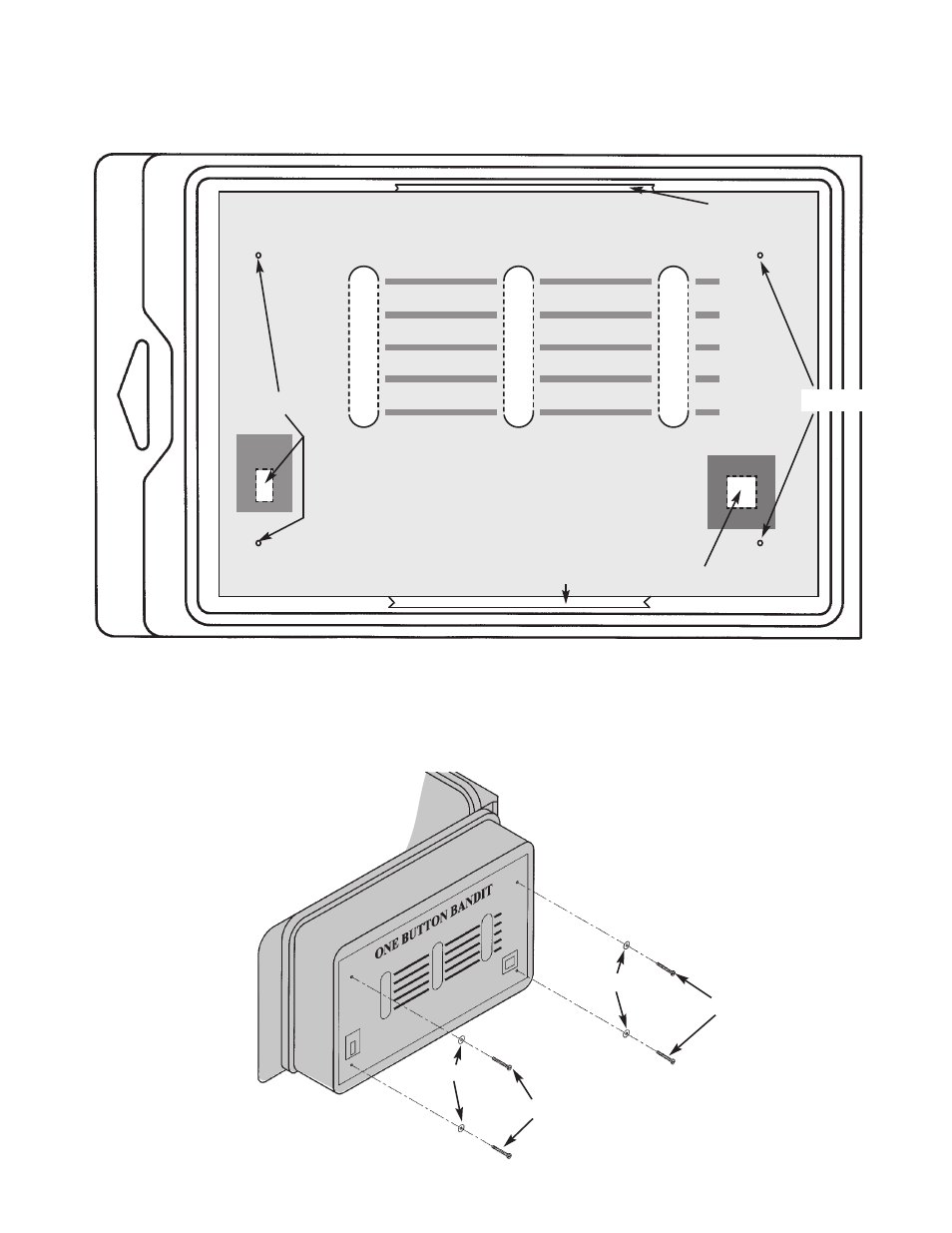

2. Next, cut out the holes on the clam shell as
shown in Figure H. To do this, you’re going to
have to position the cover sheet inside the
clamshell to where you want it mounted. Tape
the sheet to the clam shell as shown. Now cut
out the four corner holes, the ON/OFF Switch
hole, and the Push Button Switch hole. Remove
the tape.
Figure H
ON
ONE BUTTON BANDIT ONE BUTTON BANDIT
Copyright © 1998 Elenco Electronics, Inc.
50-1
25-1
15-1
10-1
5-1
PUSH
Cut Out
Cut Out Cut Out
Tape
Tape
Electronic Slot Machine Electronic Slot Machine
Wager Back for Any 2 Green Lights
2-56 x 3/4” Screws
2-56 x 3/4” Screws
Flat Washers
Flat Washers
3. Insert the four 2-56 x 3/4” screws and four
washers into the holes of the clamshell and
cover sheet as shown in Figure I. Next, slide on
the four plastic spacers onto the 2-56 x 3/4”
screws as shown in Figure J. Now slide the PC
board onto the screws as shown. Finally, lock
everything into place by threading on the four 2-56
hex nuts onto the screws as shown in Figure J.
Figure I
