PARTS LIST
If you are a student, and any parts are missing or damaged, please see instructor or bookstore.
If you purchased this pocket dice kit from a distributor, catalog, etc., please contact ELENCO
®
(address/phone/e-mail is at the back of this manual) for additional assistance, if needed. DO NOT contact your
place of purchase as they will not be able to help you.
RESISTORS
Qty. Symbol Value Color Code Part #
r 6 R2,4,5,6,8,9 1.2kΩ 5% 1/4W brown-red-red-gold 141200
r 2 R3, R7 1.5kΩ 5% 1/4W brown-green-red-gold 141500
r 1 R1 100kΩ 5% 1/4W brown-black-yellow-gold 161000
CAPACITORS
Qty. Symbol Value Description Part #
r 1 C1 .01µF Discap 241031
SEMICONDUCTORS
Qty. Symbol Value Description Part #
r 1 D19 1N4001 Diode 314001
r 4 D15 - D18 1N4148 Diode 314148
r 1 IC1 4011 Integrated Circuit 334011
r 2 IC2, IC3 4018 Integrated Circuit 334018
r 14 D1 - D14 LED (red) 350002
MISCELLANEOUS
-1-
Resistor

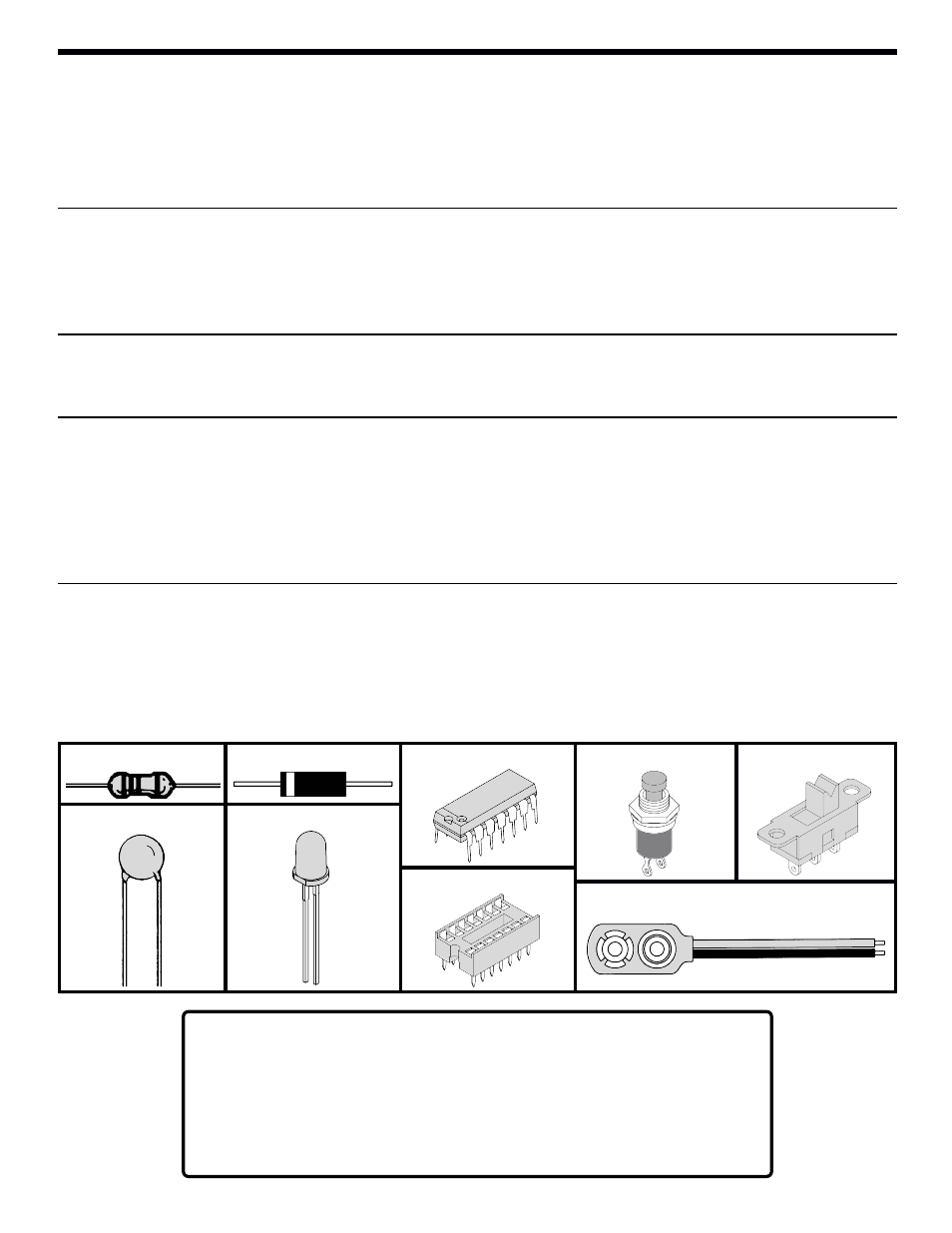

PARTS IDENTIFICATION
Capacitor
Diode
LED
Integrated Circuit
IC Socket
Push Button Switch Slide Switch
Battery Snap
● Do not short circuit the battery terminals.
● Never throw the battery in a fire or attempt to
open its outer casing.
● Use only 9V alkaline battery (not included).
● Insert battery with correct polarity.
● Non-rechargeable batteries should not be
recharged. Rechargeable batteries should
only be charged under adult supervision, and
should not be recharged while in the product.
● Remove battery when it is used up.
● Batteries are harmful if swallowed, so keep
away from small children.
Batteries:
Qty. Symbol Description Part #
r 1 PC Board 518028
r 1 S1 Switch push button 540001
r 1 S2 Switch Slide 541102
Qty. Symbol Description Part #
r 1 B1 Battery Snap 9V 590098
r 1 IC1 IC Socket 14-pin 664014
r 2 IC2, IC3 IC Socket 16-pin 664016
