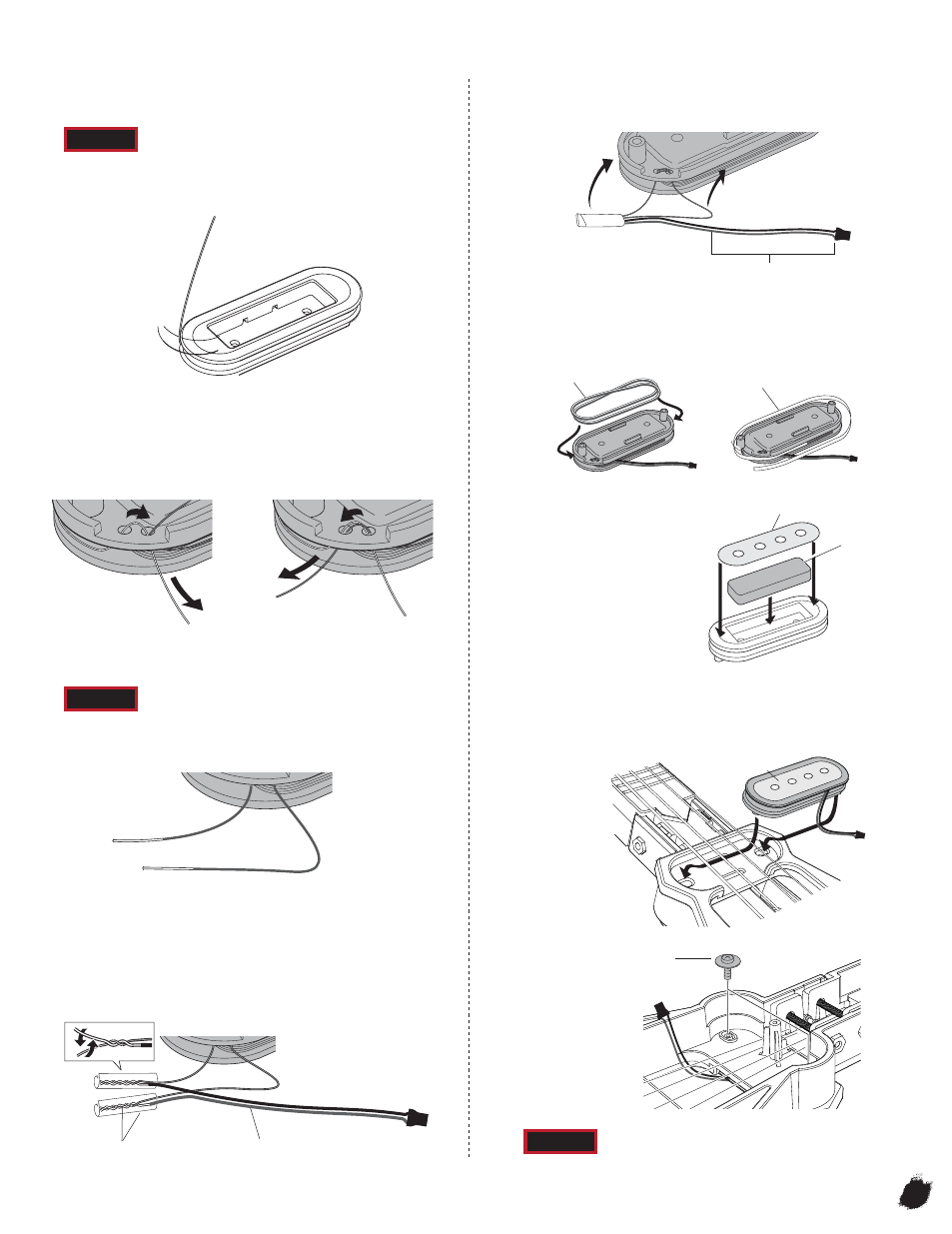

Bundle each end of the coil wire and lead wires by
twisting them together. Fasten one end of both the coil
and lead wires with cellophane tape, twist them together
and then bundle them again with cellophane tape.
Twist the lead wires
together beforehand
as shown below.
3. Wind the coil wire
Wind the entire length of the coil wire around the pickup
• Try not to leave any slack in the coil wire when winding it.
• Be careful as pulling the coil wire too tight will break it.
• The coil wire can be wound around in either direction.
4. Bundle the coil wire
Pass the end of the coil wire through the hole in the pickup
bottom plate and through the other hole (a), remove the
cellophane tape, and pass the other end of the coil wire
through the first hole (b).
(a) (b)
5. Bundle the coil and lead wires
Do not cut off the silver parts on each of the coil
wire. Doing so will cause current to stop flowing
through the wire and the speaker to stop
producing sound.
•
Either the purple or blue lead wires can be bundled.
Cellophane tape Lead wires
Wind the coil wire and lead wires that have been bundled
together with cellophane tape around the pickup. Excess
coil wire should be folded and wound around the pickup.
Do not wind this part around the pickup.
6. Cover the coil wire and lead wires
Cover the coil wire and lead wires with rubber bands or a
thinly cut piece of cellophane tape.
Rubber band
Cellophane tape or craft
tape (3 to 5mm width)
7. Insert the magnet into
the pickup top plate
Insert the magnet into
the top plate of the
pickup and affix the
provided sticker on top.
Sticker
Magnet
8. Install the pickup to the body
Insert the pickup in from the side, below the strings, and
attach it to the body from behind using the washer head
screws.
Pickup
Washer head screw
Pass the lead wires of the pickup to the back from
between the body and the end most string.
CAUTION
CAUTION
CAUTION
9 Mini Electric Guitar
