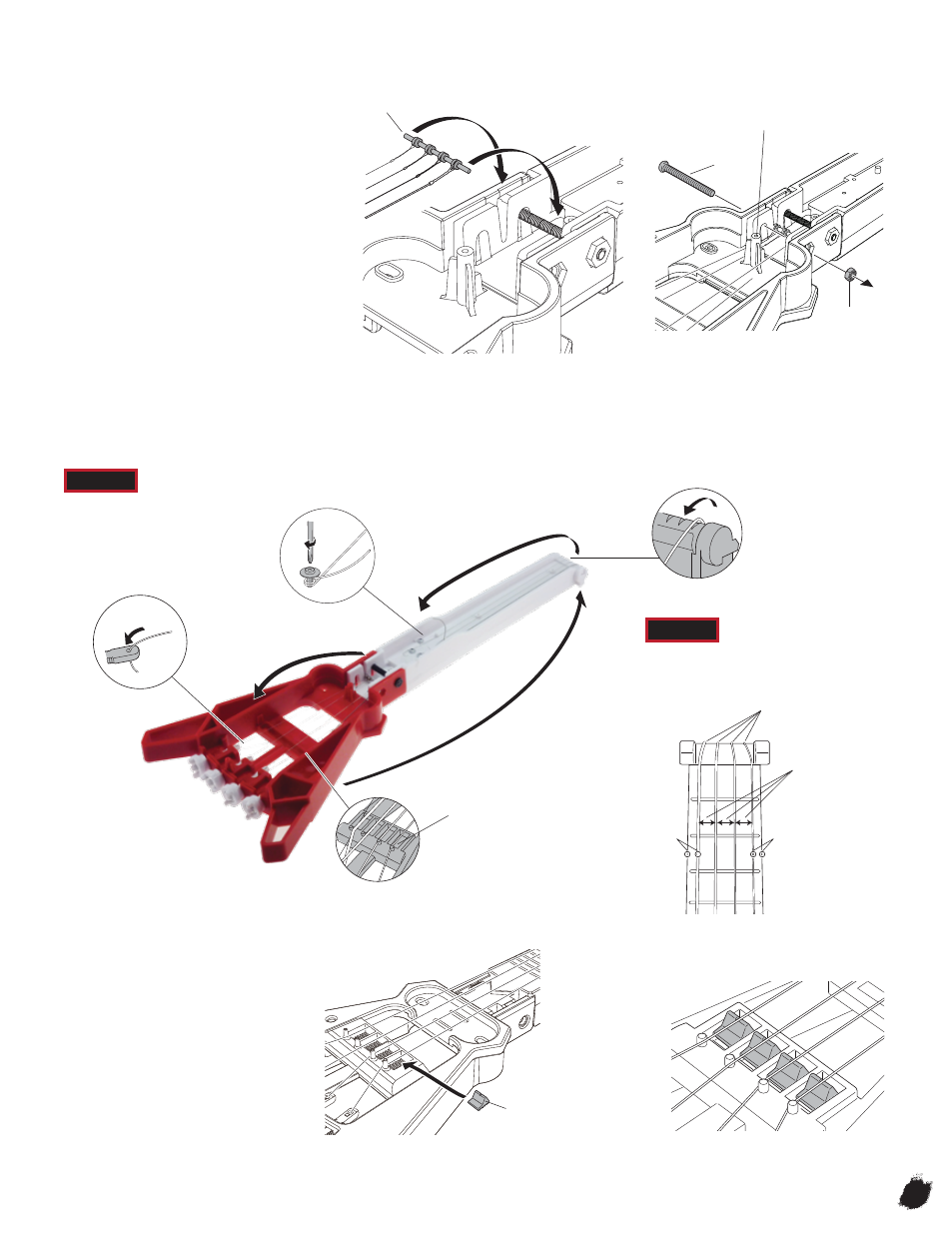

Elenco Mini Electric Guitar - Manual (Page 7)

Bolt
Nut
3. Secure the string anchor shaft
Insert the string anchor shaft into the
groove in the neck. Pass the bolt over the
strings while holding the strings and string
anchor shaft. Secure it with a bolt and nut.
4. Attach the strings
(1) Pass the strings through the holes on the tuning shafts to the front of the body. (2) Along the protrusions, (3) pass the strings
through the groove at the top of the neck and pull. (4) Then, wrap the strings clockwise one and a half times around the washer head
screws that were temporarily inserted in step 1, and secure the strings with the washer head screws.
Approximately 5 to 6 cm of excess
string may be left and the rest can
be cut off using tools such as a wire
cutter. Take caution not to cause
any injuries with the excess strings.
Strings should lie in the groove guides
Attach the strings so that they are parallel to
the neck and adjust them so that the width of
spaces between the strings is even.
String anchor shaft
(Note the direction in which it is attached)
Separate the strings so
that there are two on each
side of the protrusion
Wrap the string clockwise around
the washer head screw
Repeat steps (1) to (4) and attach all strings.
When seen from the front, each
string should lie against the
protrusions as shown in the figure.
String should be in the groove
Width of spaces
is even
Parallel Parallel
5. Attach the bridges
Attach the bridges and lay the
strings in the grooves in the center
of the bridges. Turn the pegs and
adjust the string tension so that
they are relatively tight (be careful
not to overtighten the strings). If it
is difficult to attach the bridge
because the strings are too tight,
loosen the strings slightly.
Bridge
Face the raised
side of the bridge
towards the neck
and place it on the
closest position to
the neck.
Lay the strings in the center of the bridges.
CAUTION
CAUTION
7 Mini Electric Guitar
