Elenco Night’n Day® User Manual

Page 4

5 -

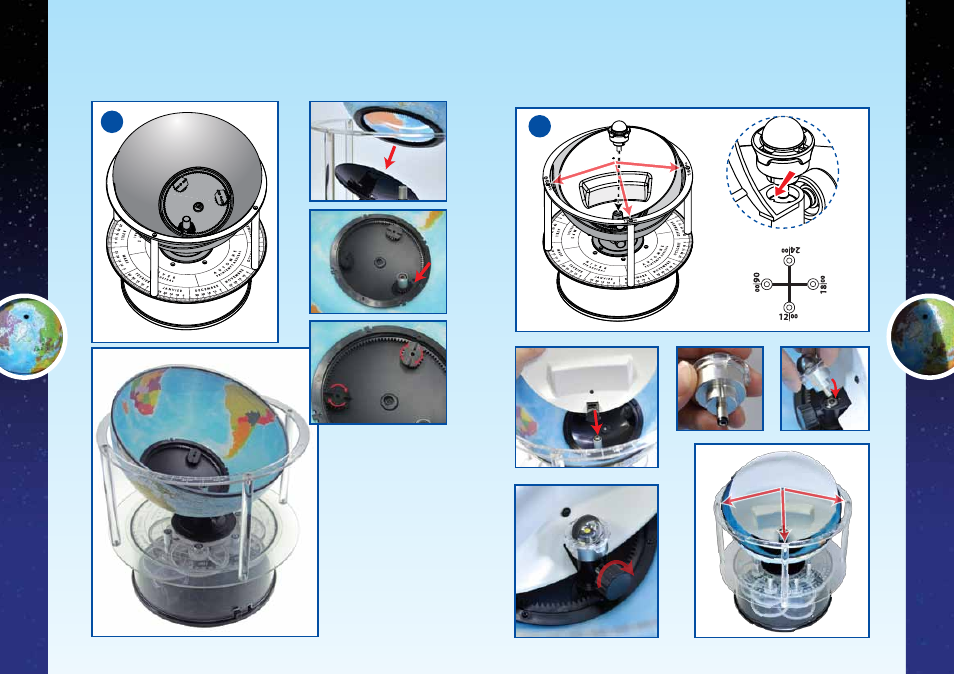

Slide the sunshade over the central shaft. Do not tighten the lock knob.

Push the LED lamp onto the central shaft. Turn the sunshade so that edges

line up with 6 am and 6 pm on the Time Ring. The back of the sunshade

faces midnight (24 hours) on the Time Ring. Lock the sunshade by slowly

turning the lock knob.

4 -

Attach the southern hemisphere of the globe to the support cup. The teeth on

the gear around the hole on the bottom of the hemisphere should fit over the

teeth on the crown gear. Gently hold the southern hemisphere and turn

slowly. It should turn in the support cup.

4.1

5.1

4.4

4.2

5.2

5.3

5.4

5.5

4.3
