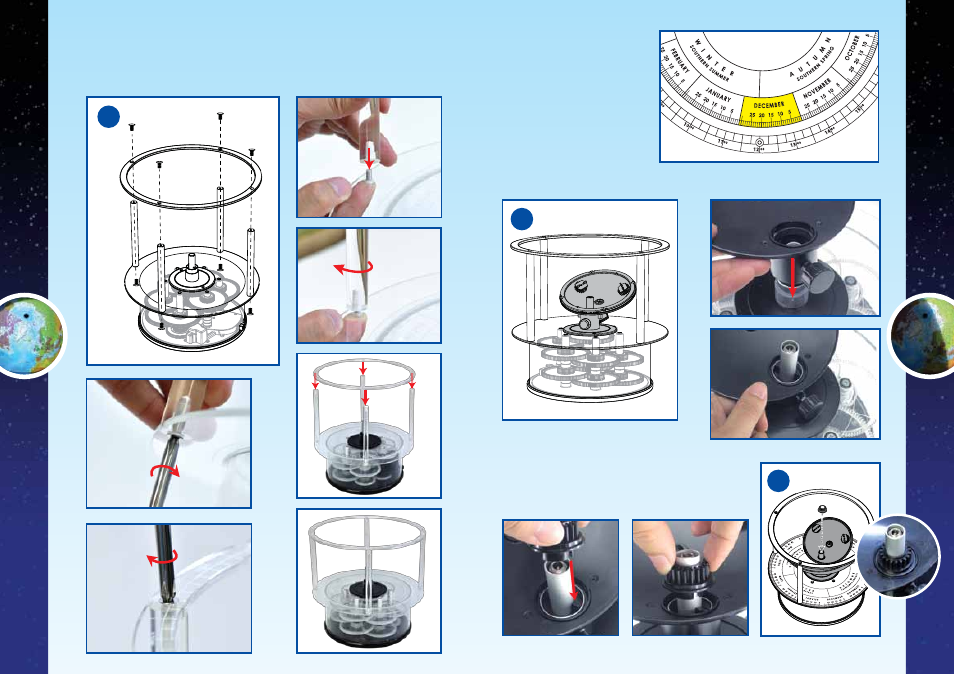

Assembling
1 - Attach the Time Ring to the Monthly Dial with the four support rods and
screws.
2 - Slip the globe support cup
over the center shaft on
the motor case. Do not
tighten the lock knob.
The support cup should
rotate on the center shaft.
3 4
3 - Push the crown gear/pulley onto the
center shaft. Turn the gear slowly so that the two
notches on the bottom of the gear line up with
and connect with the two ribs on the center shaft.
When they are in alignment, you will feel the gear
click into place and will no longer turn by hand.
Important:
Align December 21-22 on
the Monthly Dial with the
12 pm mark on the Time
Ring.
