-2-

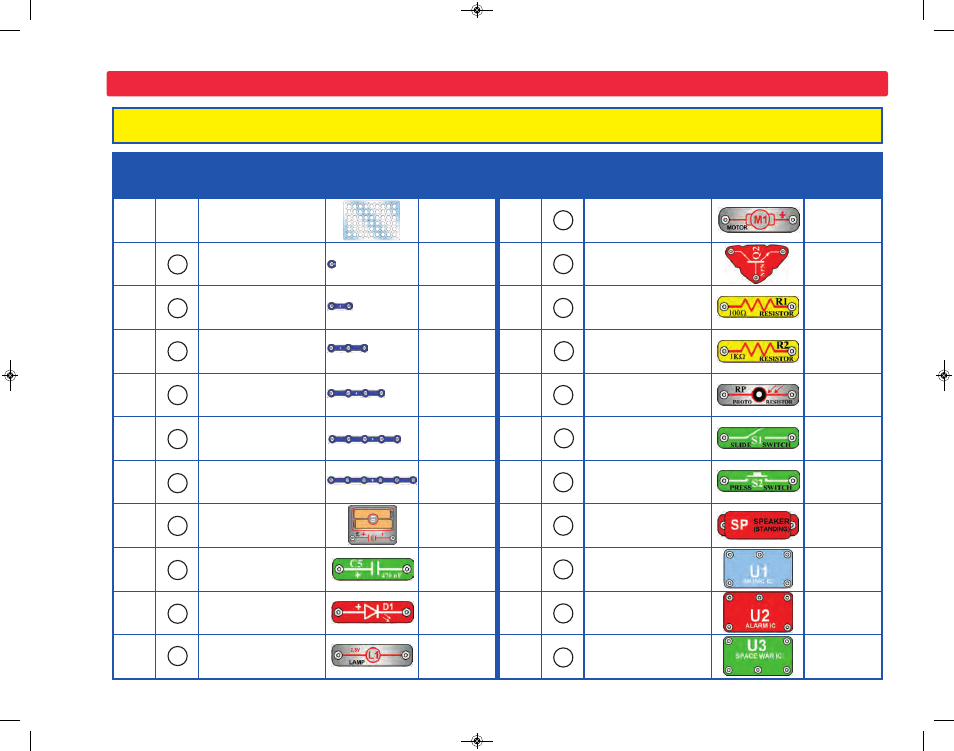

Parts List
(Colors and styles may vary) Symbols and Numbers
Important: If any parts are missing or damaged in shipping, DO NOT RETURN TO Target. Call toll-free (800) 533-2441 or e-mail to
[email protected]. Customer Service ● 150 Carpenter Ave. ● Wheeling, IL 60090 U.S.A.
Qty. ID Name Symbol Part # Qty. ID Name Symbol Part #
r 1
Base Grid
(11.0” x 7.7”)
6SCBG
r 1
r 1
Motor
Glow Fan
6SCM1
6SCM1FG
r 3 1-Snap Wire 6SC01 r 1 NPN Transistor 6SCQ2
r 6 2-Snap Wire 6SC02 r 1 100W Resistor 6SCR1
r 3 3-Snap Wire 6SC03 r 1 1KW Resistor 6SCR2
r 1 4-Snap Wire 6SC04 r 1 Photoresistor 6SCRP
r 1 5-Snap Wire 6SC05 r 1 Slide Switch 6SCS1
r 1 6-Snap Wire 6SC06 r 1 Press Switch 6SCS2
r 1
Battery Holder - uses
Two 1.5V type AA (not incl.)
6SCB1 r 1 Speaker 6SCSP
r 1 470mF Capacitor 6SCC5 r 1
Music
Integrated Circuit
6SCU1
r 1
Red Light Emitting
Diode (LED)
6SCD1 r 1
Alarm
Integrated Circuit
6SCU2
r 1 2.5V Lamp 6SCL1 r 1
Space War
Integrated Circuit
6SCU3
6
5
4
3
2
1
B1
D1
C5
L1
M1
Q2
R1
R2
S1
S2
U3
U2
U1
SP
RP
