B6. Set the Stainless Condensing Boiler

6-1 Set CH Supply Temperature Setting point

for Stainless Condensing boiler according to

heating system requirement, i.e.175°F. Detailed

instructions are available in the IOM of Stainless

Condensing boiler.

6-2 Set DHW supply temperature setting of Stainless

Condensing boiler to temperature required for hot

water tank, i.e. 180°F.

B7. Create CH call for heat and verify the system

works as intended.

B8. Create DHW call for heat and verify the system

works as intended.

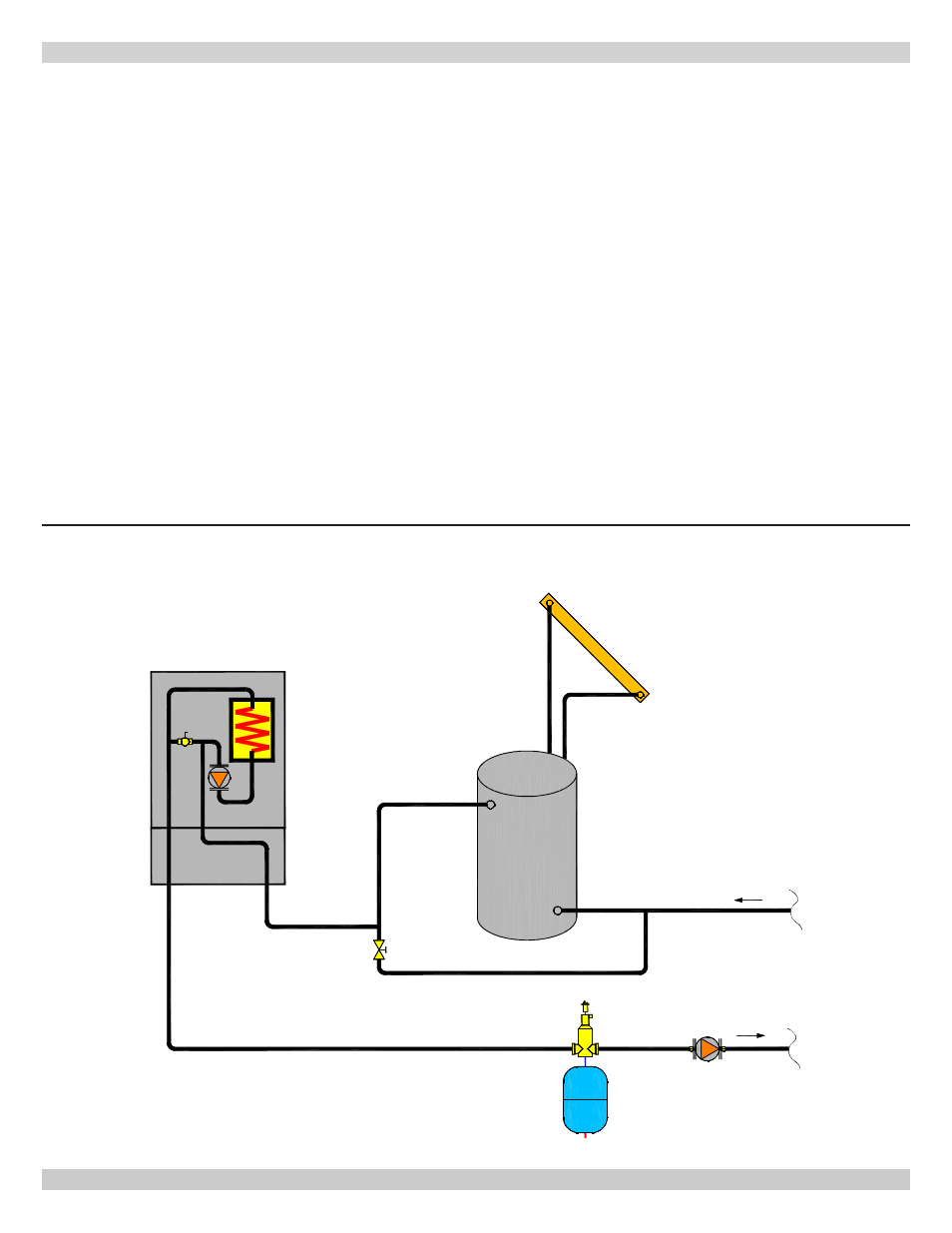

Figure B1 - Stainless Condensing Boiler with Low Temperature, Closed System Additional Heating Device

(Can be pressurized)

SECTION B - STAINLESS CONDENSING BOILER OPERATING WITH LOW TEMPERATURE HEATING DEVICE

ADDITIONAL

HEATING DEVICE

BY PASS VALVE

SOLAR PANEL

LOW

TEMPERATURE

ADDITIONAL

HEATING

DEVICE

ADDITIONAL
HEATING DEVICE
BYPASS VALVE
