Temperature Controller
Operation
The Programmable Cooling System provides two levels of fan control, an audible alarm, switched AC
power-down and displays the current temperature of the enclosure.
Factory presets:
Fan set 1:
80
°
Fan set 2:
90
°
Alarm:
111
°
Power off: 120
°
To start operation, turn on the AC switch on the power supply. The controller may sound an alarm, and
the fans will turn on for 10 to 20 seconds. The system will then reset to a start state.

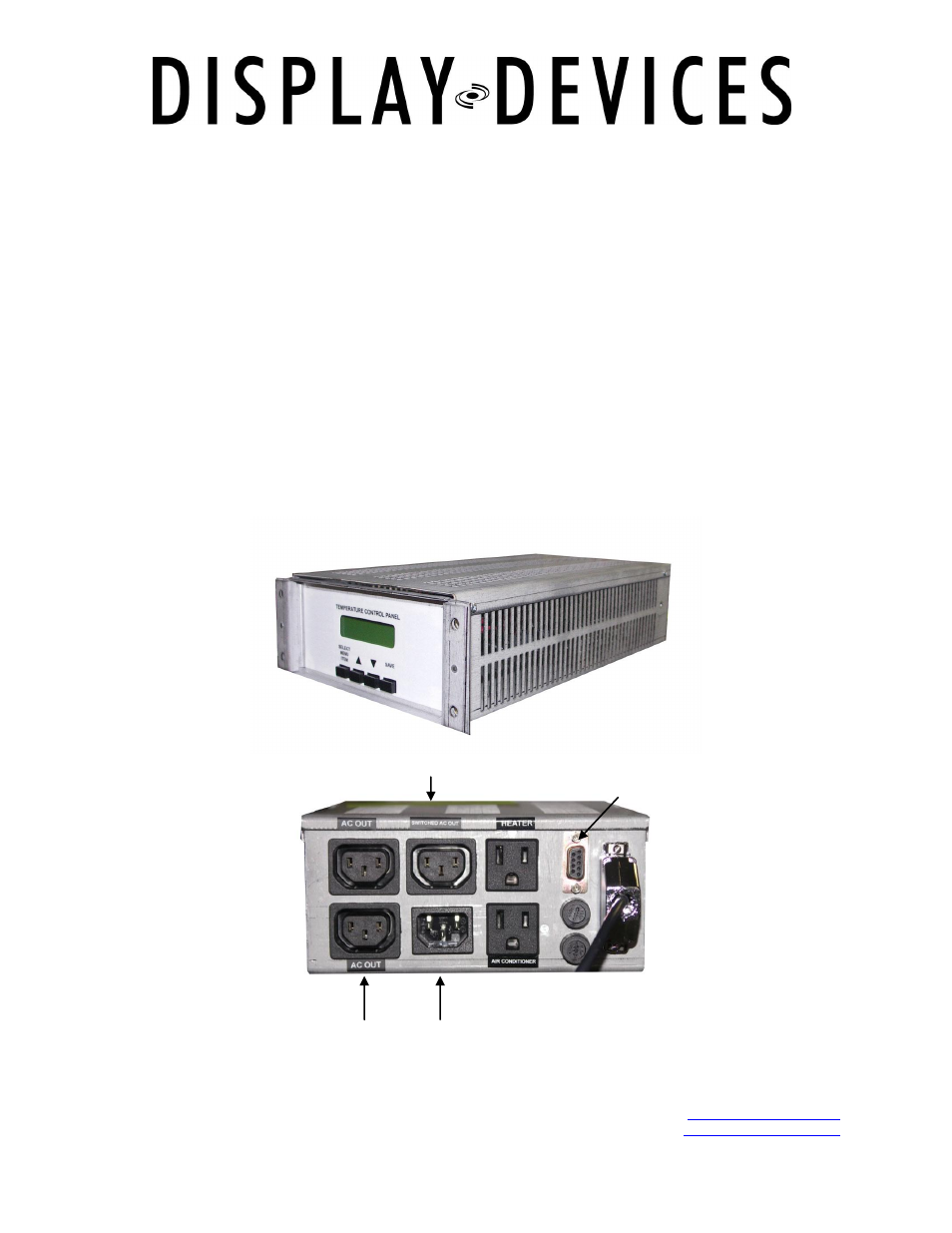

Switched AC
Unswitched AC AC Input
RS232 Optional
Control Panel
Power Supply
