SE-B6/10 Soffit Series Sound Enclosures
Thanks for purchasing a Display Devices product. We‟re sure your customer will use this product for
years to come. Our products are designed to be maintenance-free saving you future service time. If you
experience any difficulties, please contact us at 303-412-0399. Thank you for your support.
This Sound Enclosure is designed to be built into a soffit to relocate projector noise to within a ceiling or
wall. Display Devices‟ projector lifts can be incorporated within this unit for easy service access. Sound
Enclosures work best when installed as part of a complete sound isolation system. For optimum sound
isolation we recommend the following:
Add intake and exhaust ducts to the enclosures‟ fire dampers – 6 feet or longer – this disperses
the sound away from the area it originates.
When built into a soffit, you will need to plumb the unit to an external fresh air source, plumb the
exhaust to another area away from the viewing room.
Air intake and exhaust are located on the sides of the unit creating airflow across the projector.
Tools required
: Material Lift
Phillips-head screwdriver
Powered screwdriver with Phillips bit
¾”, 9/16” and 7/16” socket and open end wrenches
5” socket extension
Important
DO Ensure the ceiling structure is capable of holding at least four times the combined weight of the
enclosure and projector. This is a minimum requirement. Follow any local or state codes that apply to
your specific area. We recommend two people and a material lift for this installation.
1.)
Install structural support for sound enclosure unit – utilize 3/8” (M10) threaded rod and
hardware to bolt the unit into place. We recommend using a structural channel above the
unit for lateral positioning of the box.
2.)

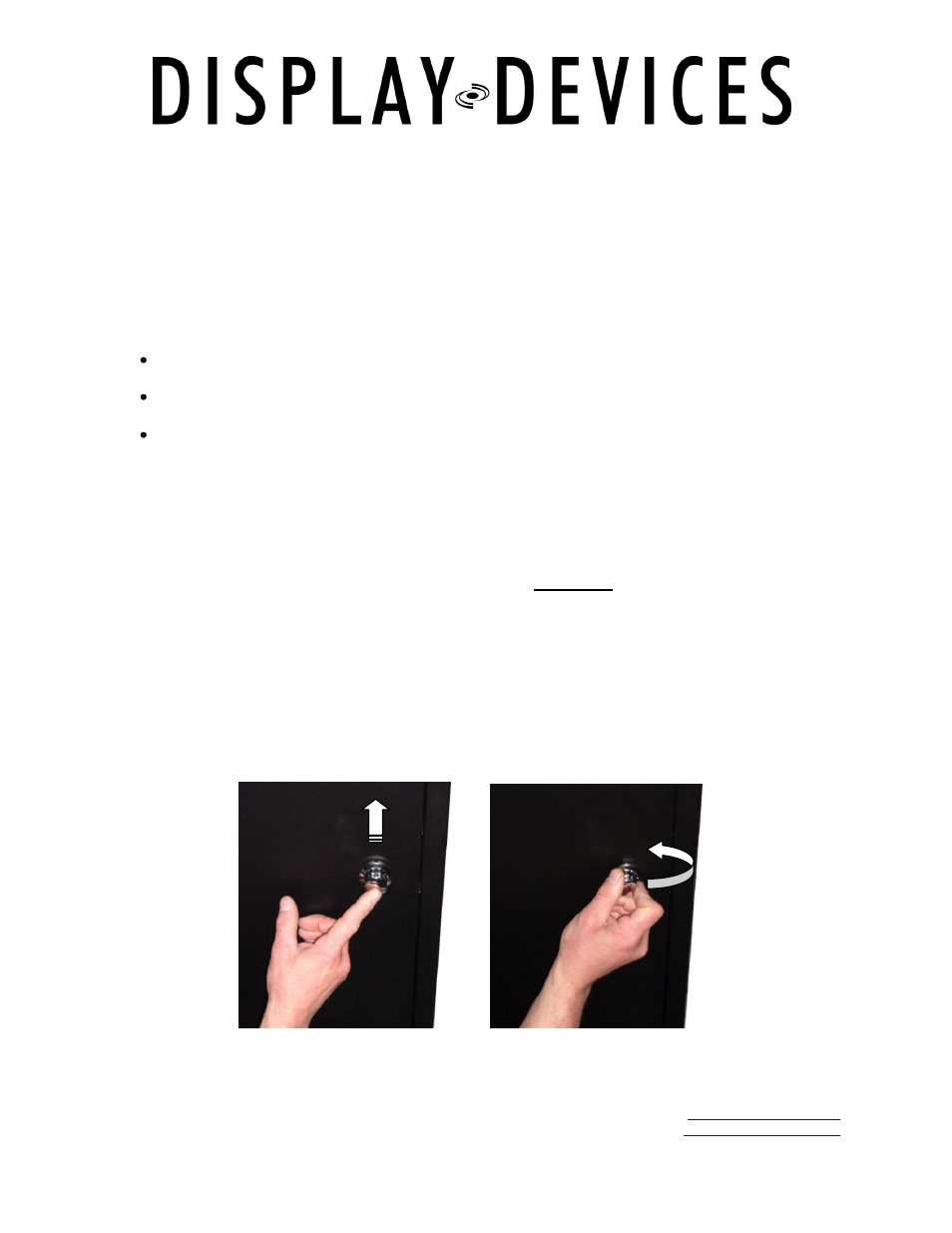

The projector cavity is accessed through a swing down door. Be careful! The door is heavy
and will swing down when the latch is released. Support the door when opening!
Push to unlock
Twist to release
3.)
Open bottom door to access mount holes. You may also remove the glass on the projection
port for access.
