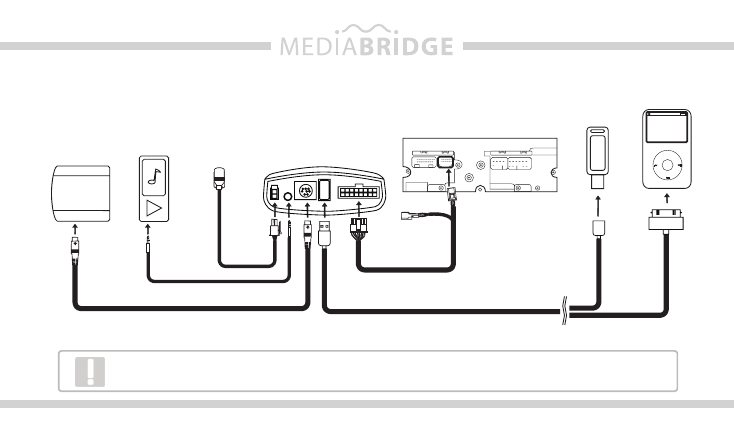

Connection diagram
MENU Sirius SC-C1 SAT tuner
AUX audio device
Microphone MediaBridge module
Toyota radio with small connector
USB thumb drive
iPod
cable receptacle*
MediaBridge vehicle connector
AUX connector
Sirius SC-C1 factory cable USB cable or iPod docking cable
*If factory harness present, connect to receptacle.
Do not connect an iPod dock cable under any circumstance to the SIRIUS module connector! Improper
connection can cause permanent damage to iPod/SIRIUS module.
