25 A.LEDA WASH CC TW W
CAUSE AND SOLUTION OF PROBLEMS
THE PROJECTOR WILL NOT SWITCH ON
PROBLEMS
ELECTRONICS NON-OPERATIONAL
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
LED exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses broken
Dust or grease deposited.
Check the power supply voltage.
Call an authorised technician.
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).

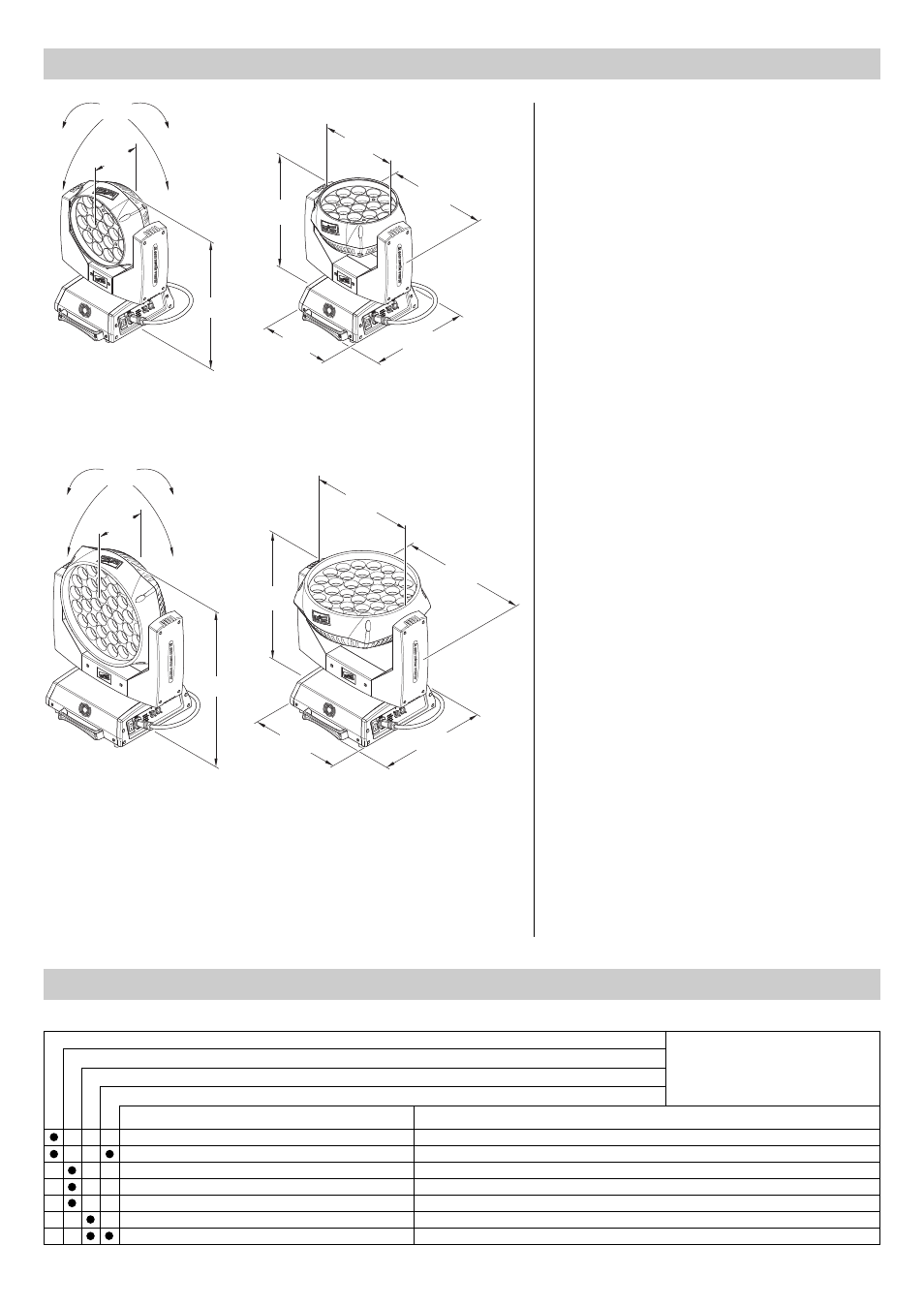

358
(14.09")
253
(9.96")
423
(16.65")
250
(9.84")
360
(14.17")
584
(22.99")
160
(6.30")
380
(14.96")
476
(18.74")
360
(14.17")
460
(18.11")
479
(18.86")
160
(6.30")
290
(11.42")
330
(12.99")
395
(15.55")
TECHNICAL INFORMATION
Power supplies available
100-240V 50/60Hz
Input power
• K20 - 750VA
• K10 - 450VA
Total output
• K10 CC - Max 5300 lumens
• K10 TW - Max 6800 lumens
• K10 W - Max 10500 lumens
• K20 CC - Max 10900 lumens
• K20 TW - Max 14300 lumens
• K20 W - Max 21700 lumens
LED source
Osram Ostar RGBW LED - 15W
Average LED life: 50.000 h
Motors
5 (k10 & k20), stepper motors, operating with microsteps,
totally microprocessor controlled.
Cooling
• High efficiency die-cast aluminium
• Forced ventilation
Inputs
DMX 512
Working position
Working in any position.
Moving head
• Movement by means of two stepper motors, controlled by
microprocessor.
• Automatic repositioning of PAN and TILT after accidental
movement not controlled by control unit.
• Angle:
- PAN = 540°
- TILT = 270°
IP20 protection rating
• Protected against the entry of solid bodies larger than 12mm
(0.47”).
• No protection against the entry of liquids.
CE Marking
Complies with the following European Directives
- 2006/95/EC (LVD)
- 2004/108/EC (EMC)
- 2011/65/EU (RoHS).
Weights
• K10:13.9 kg
• K20:19.5 kg
Continue ➔
