23 A.LEDA WASH CC TW W
2
1
12

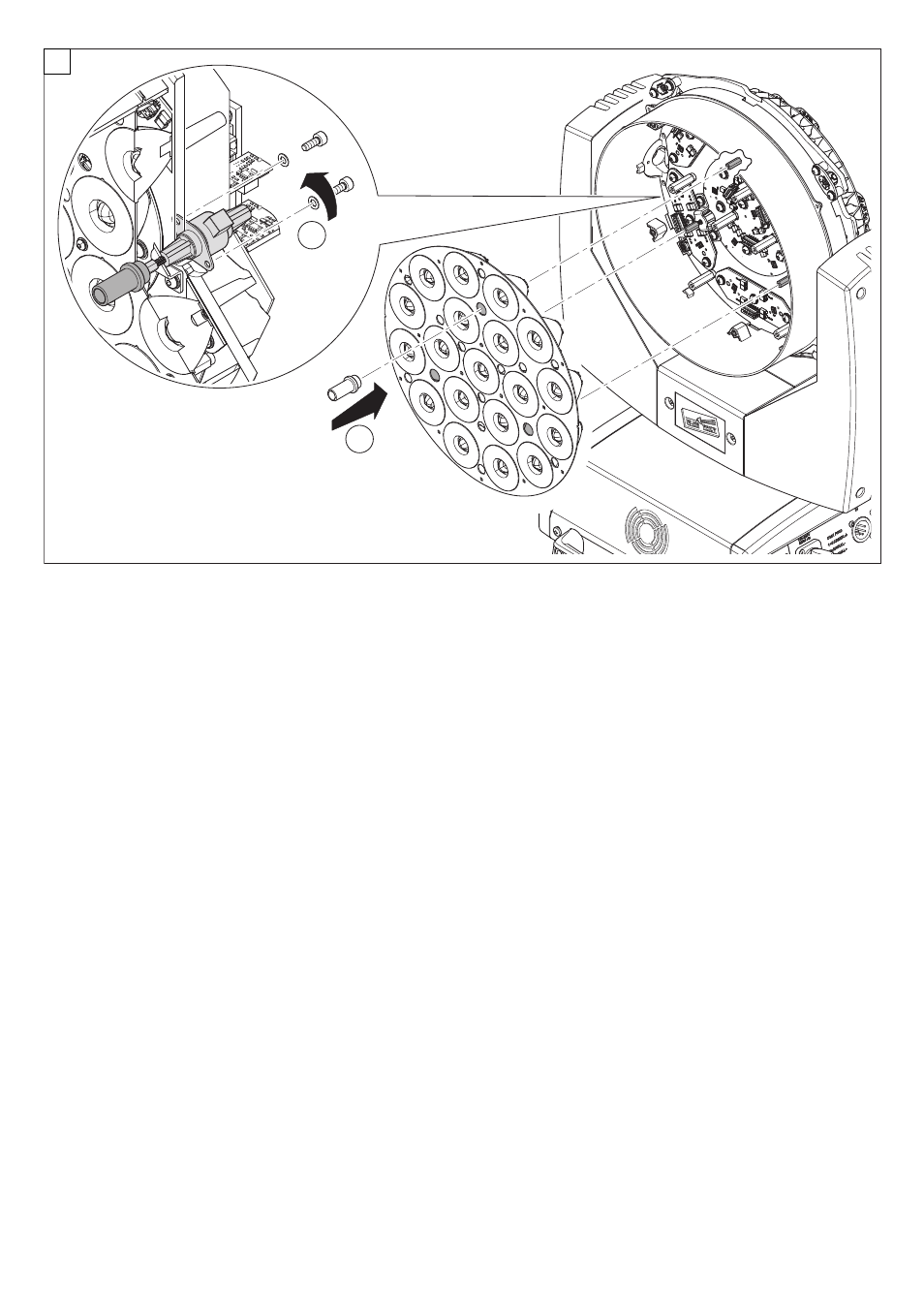

Replacing the line actuator - Fig. 12
NB: It is highly recommended to use the DIM002/001 (1) template whenever it is necessary to replace one of the three Zoom movement line actuators.
DIM002/001 ensures the actuator group is centred correctly on the lens plate before tightening the 2 screws (2) that fasten the actuator in place.
