Getting Familiar with Your FuzzyScan
Thank you for choosing Cino FuzzyScan Scan Module SM380/SM5700 Series. Powered by the cutting-edge FuzzyScan 3.0
imaging technology, the compact and easy-integration scan module comes with exceptional reading capability yet versatile
functionality. Designed with system integration in mind, FuzzyScan OEM Scan Module combines all characteristics of
FuzzyScan fixed mount scanner in a small and compact package. It provides an ideal solution for embedded barcode
scanning applications.

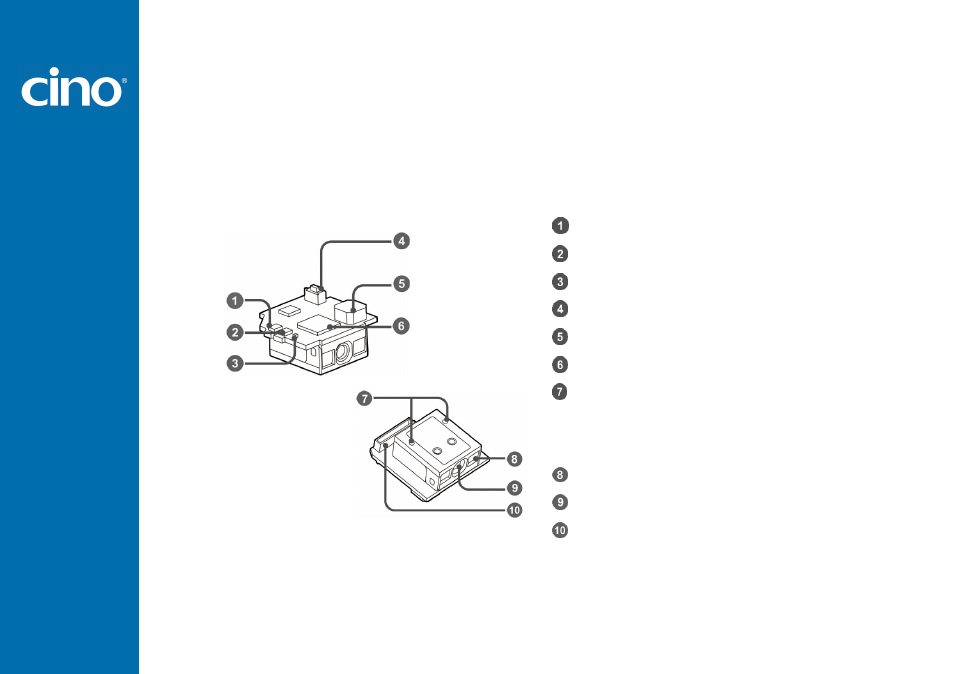

SM380
OK/NG Indicator
Status Indicator
Power Indicator
Trigger Button
Buzzer
Main Processor
Mounting holes
(ø1.2 x 4mm depth)
TP1.7 screws suggested
Condenser
Lens
15-pin interface connector
