2

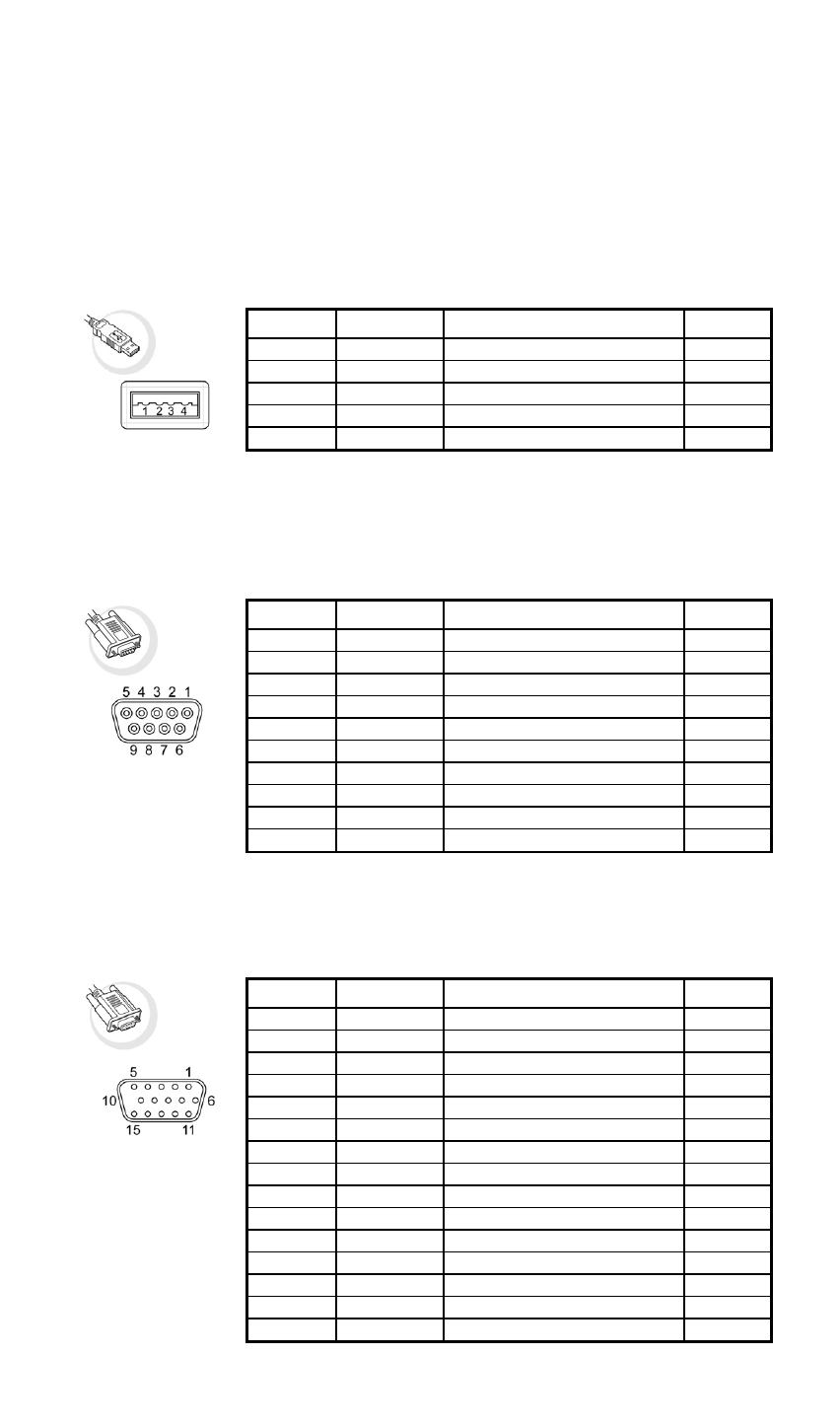

Connect to Your Host
Both standard RS232 and USB interfaces are available in different models.
Each model is equipped with corresponding connector to meet various
application demands.
USB Models (FM4xx-11x/FA4xx-11x)
The USB models provide a plug-and-play solution. Both USB HID and USB
COM Port Emulation interfaces are available for user’s choice.
Pin No. Signal Description I/O Type
Case FG Frame Ground ---
1 VCC --- I
2 Data - USB Data - I/O
3 Data + USB Data + I/O
4 GND --- ---
RS232 Models (FM4xx-00x/FA4xx- 00x)
The RS232 models support the standard RS232 interface equipped with a
9-pin D-sub connector with power jack for external 5VDC power inlet.
Pin No. Signal Description I/O Type
Case FG Frame Ground ---
1 --- --- ---
2 TXD Transmit Data O
3 RXD Receive Data I
4 --- --- ---
5 GND Signal Ground ---
6 --- --- ---
7 CTS Clear to Send I
8 RTS Request to Send O
9 VCC 5Vdc Power Supply I
Universal Models (FM4xx-98x/FA4xx-98x)
The universal models support both standard RS232 and USB interfaces with
OK/NG signal outputs and external trigger input.
Pin No. Signal Description I/O Type
1 VCC 5Vdc Power Supply I
2 TXD Transmit Data O
3 RXD Receive Data I
4 GND Signal Ground ---
5 --- --- ---
6 RTS Request to Send O
7 OK OK Signal Output (3-24Vdc) O
8 Data + USB Data + I/O
9 Trigger External Trigger Input I
10 CTS Clear to Send I
11 --- --- ---
12 Data - USB Data - I/O
13 Shield Frame Ground ---
14 NG NG Signal Output (3-24Vdc) O
15 Reserved --- ---
4-pin Type A
Connector
9-pin D-sub
Female Connecto r
15-pin D-sub HD
Female Connector
