11

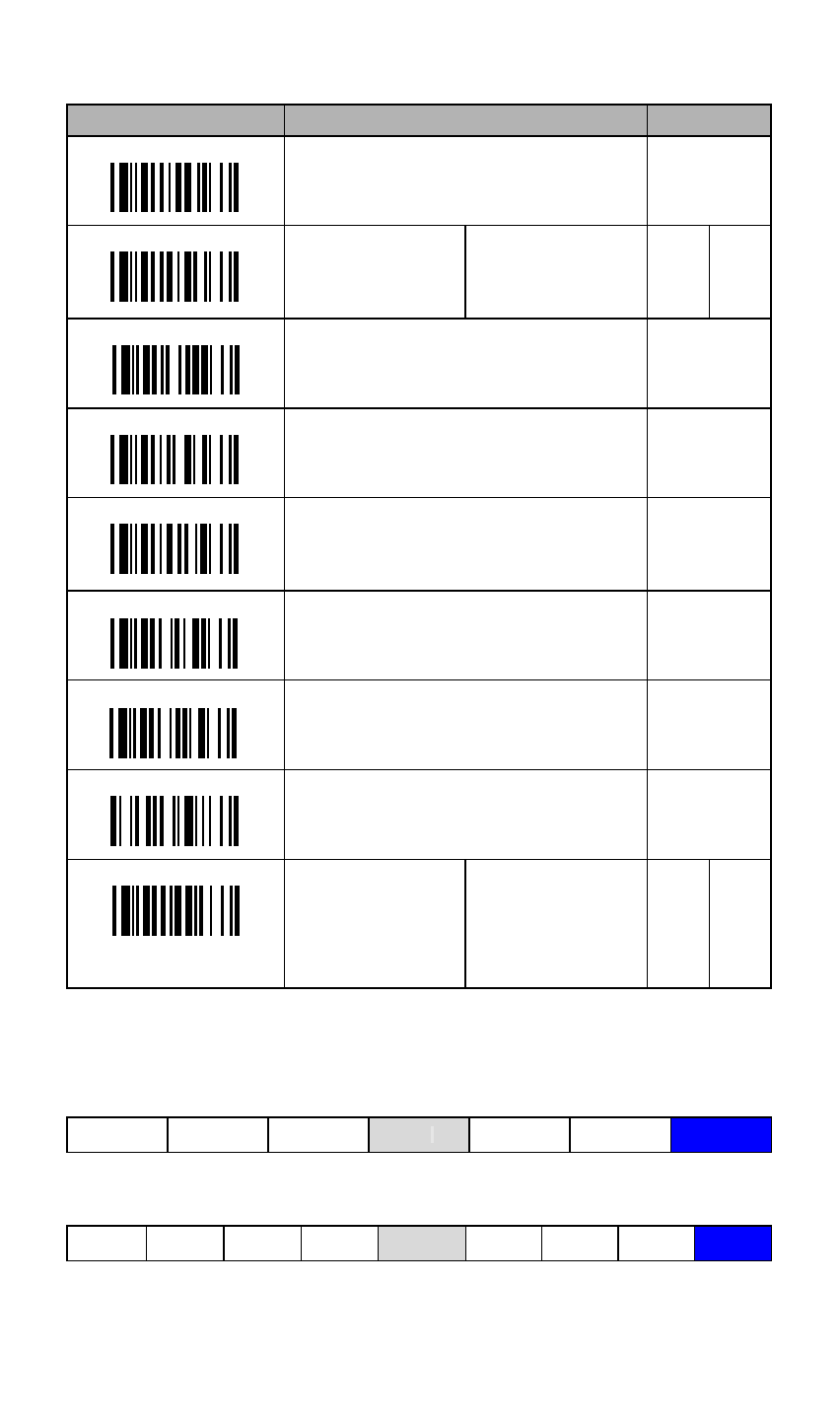

Serial Interface Control
Command Parameter Selection Option Code
STX/ETX Control Disable STX/ETX transmission ◆
Enable STX/ETX transmission 0
1
Record Suffix None
CR ◆
LF
CRLF TAB
SPACE
User define character 0
1
2
3 4
5
6
Preamble None
◆
1-15 characters
FIN
[00-7F], [FIN]
Postamble None ◆
1-15 characters FIN
[00-7F], [FIN]
Handshaking Protocol None ◆
RTS/CTS
ACK/ NAK
Xon/Xoff 0
1
2
3
Intermessage Delay None ◆
1-99 (x5) msec. FIN
(2 digits)
Intercharacter Delay None ◆
1-99 (x5) msec. FIN
(2 digits)
Interfunction Delay None ◆
1-99 (x5) msec.
FIN
(2 digits)
Serial Response Time-out None
200 msec.
500 msec. ◆
800 msec.
1 sec.
2 sec 3 sec.
4 sec
5 sec.
8 sec.
10 sec.
15 sec. 0
1
2
3
4
5 6
7
8
9
A
B
Message String Breakdown
USB HID interface output (DOS/V, USB HID)
Preamble Data Length Prefix ID Scanned Data Suffix ID Postamble Record Suffix
1-15 char. 2-4 digits 1 or 3 char. Variable 1 or 3 char. 1-15 char. 1 char.
Serial interface output (RS-232, USB COM Port Emulation)
STX Preamble Data Length Prefix ID Scanned Data Suffix ID Postamble ETX
Record
Suffix
1 char. 1-15 char. 2-4 digits 1 or 3 char. Variable 1 or 3 char. 1-15 char. 1 char. 1 char.
