GOT815-834 User ’s Manual
AMI BIOS Setup Utility 17

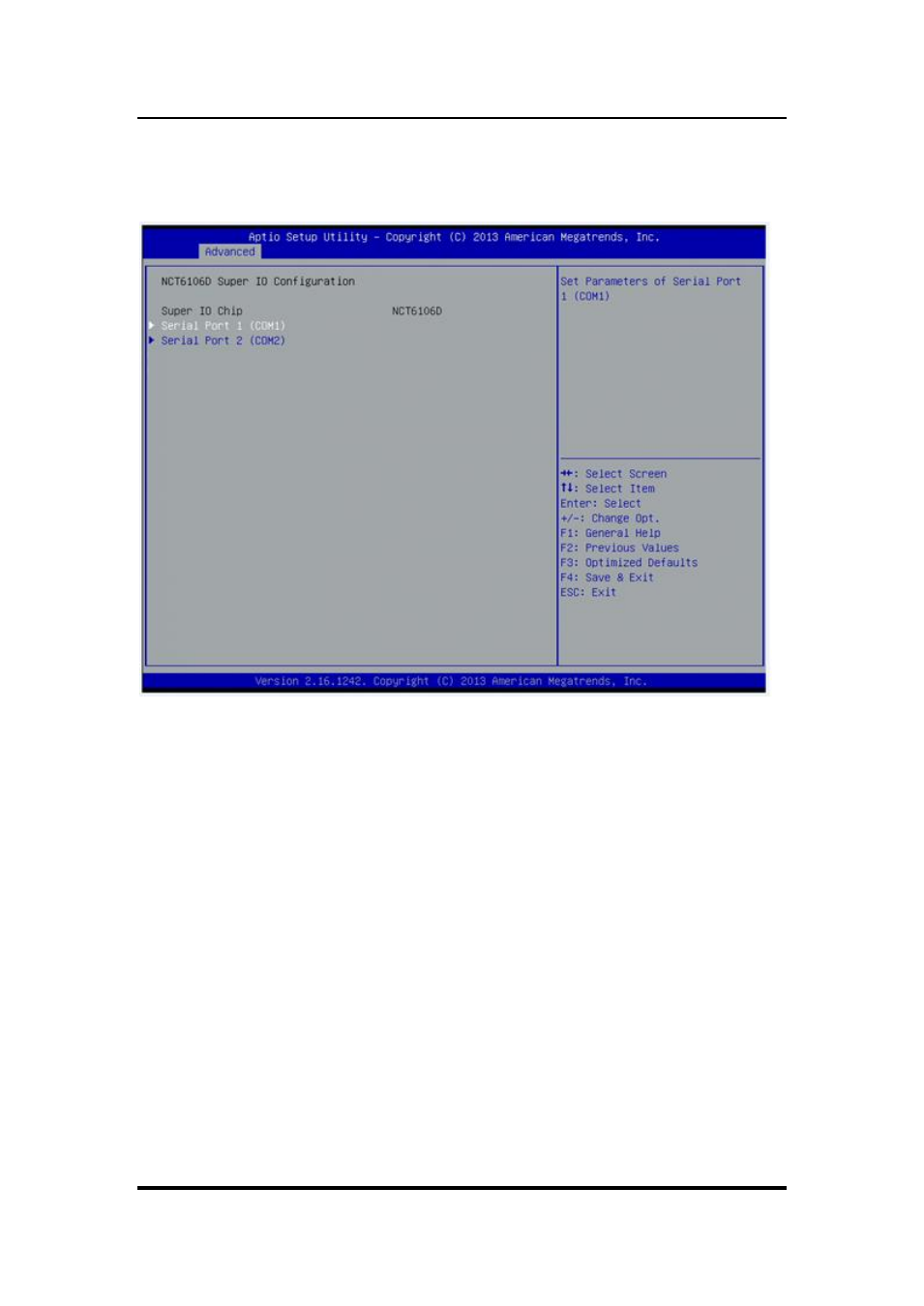

 NCT6106D Super IO Configuration
Use this screen to select options for the Super IO Configuration, and change the
value of the selected option
Serial Port 1-2configuration
Serial port:
This option used to enable or disable the serial port.
Device Setting:
This item specifies the base I/O port address and Interrupt Request address of serial port.
The port 0 Optimal setting is 3F8/IRQ4.
The port 1 Optimal setting is 2F8/IRQ3.
The port 2 Optimal setting is 3E8/IRQ7
The port 3 Optimal setting is 2E8/IRQ5.
