GOT815-834 U ser’s Manual
System Configurations 8
2.1.2 Ethernet
The GOT815-834 is equipped with a high performance Plug and Play Ethernet
interface, full compliant with IEEE 802.3 standard , and can be connected with a M12
LAN connector.

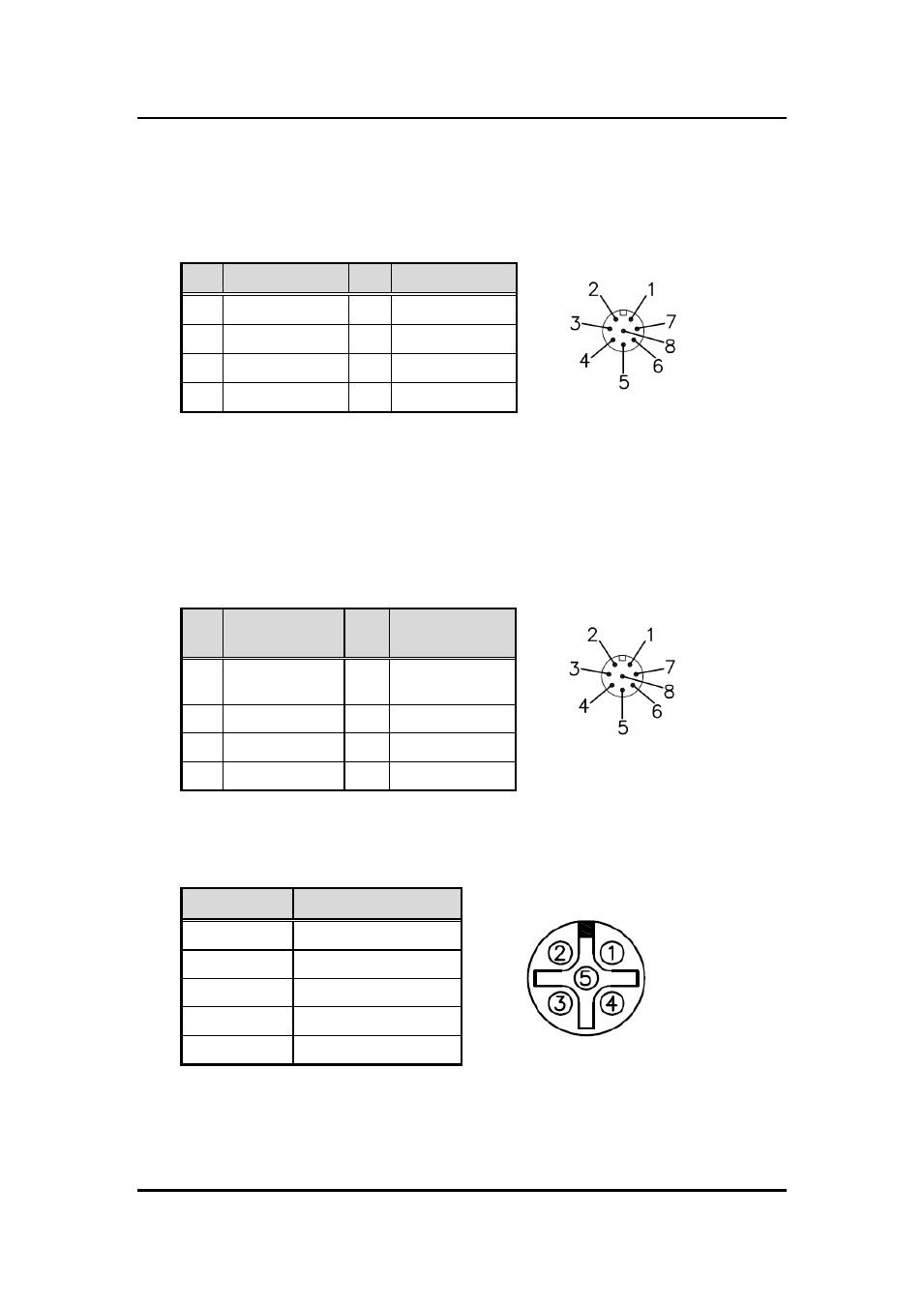

Please refer to detailed pin assignment list below:
2.1.3 USB Port
The USB is a Universal Serial Bus (compliant with USB 2.0 (480Mbps)) connector on the
rear I/O. It is commonly used for installing USB peripherals such as keyboard, mouse,
scanner, etc.
2.1.4 DC Power Jack w/ M12 connector
Pin Signal Pin Signal
L1 MDI0P L5 MDI2P
L2 MDI0N L6 MDI2N
L3 MDI1P L7 MDI3P
L4 MDI1N L8 MDI3N
Pi
n Signal Pin Signal
1
USB VCC (+5V
level)
5
USB VCC (+5V
level)
2 USB #0_D- 6 USB #1_D-
3 USB #0_D+ 7 USB #1_D+
4 GND 8 GND
Pin Signal
1 +9~36V
2 +9~36v
3 GND
4 GND
5 Earth Gound
